USED 2011 OKUMA GENOS 560V
Overview

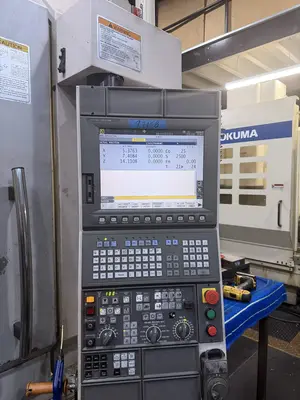

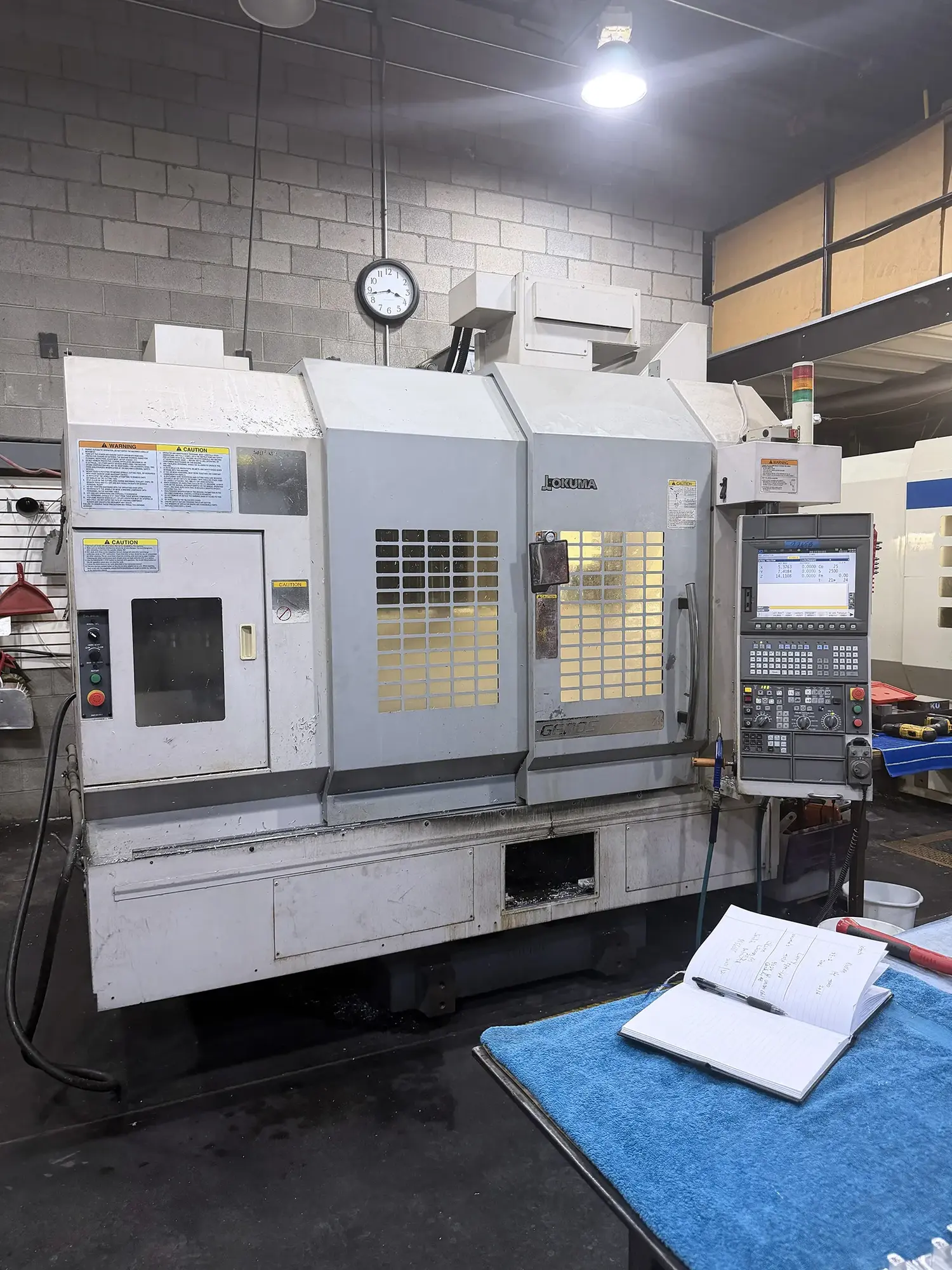

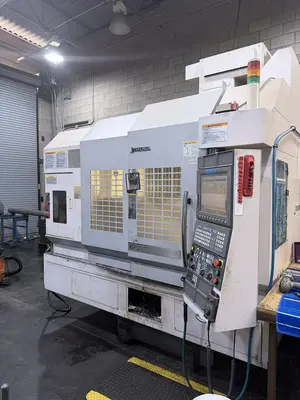

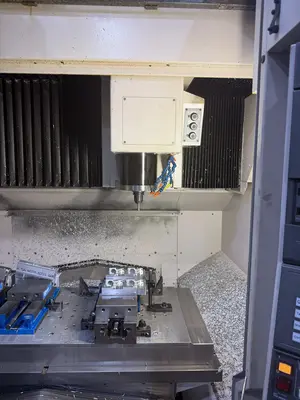

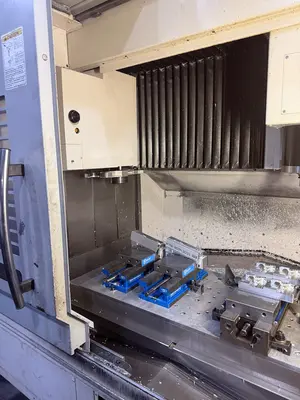

The Okuma Genos M560V Vertical Machining Center (2011) with OSP P200M Control delivers exceptional precision, rigidity, and high-speed performance for demanding CNC applications. Its robust bridge-style construction and powerful spindle enable aggressive machining of stainless steel, titanium, and other hard metals, making it ideal for aerospace, automotive, medical, and precision manufacturing environments.
Specs
X-axis: 1,050 mm (41.34 in)
Y-Axis: 560 mm (22.05 in)
Z-axis: 460 mm (18.11 in)
Table Size: 1,300 × 560 mm (51.18 × 22.05 in)
Max Table Load: 900 kg (1,980 lb)
Spindle: 12,000 rpm
Power: 30 hp (25 kW)
Taper: CAT 40 Big Plus® (dual contact for rigidity)
Rapid Traverse
Rapid Traverse (X-Y): 40 m/min (1,575 ipm)
Rapid Traverse (Z): 32 m/min (1,262 ipm)
TOOL CAPACITY: 32-tool arm-type ATC (max tool length 11.8", diameter 4.9", weight 18 lb)
Nose-to-Table Distance: 5.91" (150 mm) to 24.02" (610 mm)
Coolant Tank Capacity: 230 L (60.77 US gal), effective 120 L (31.70 US gal)
Machine Weight: ~8,000 kg (18,260 lb
Equipped With
Misc. tooling
