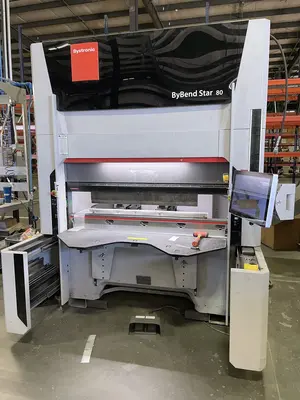

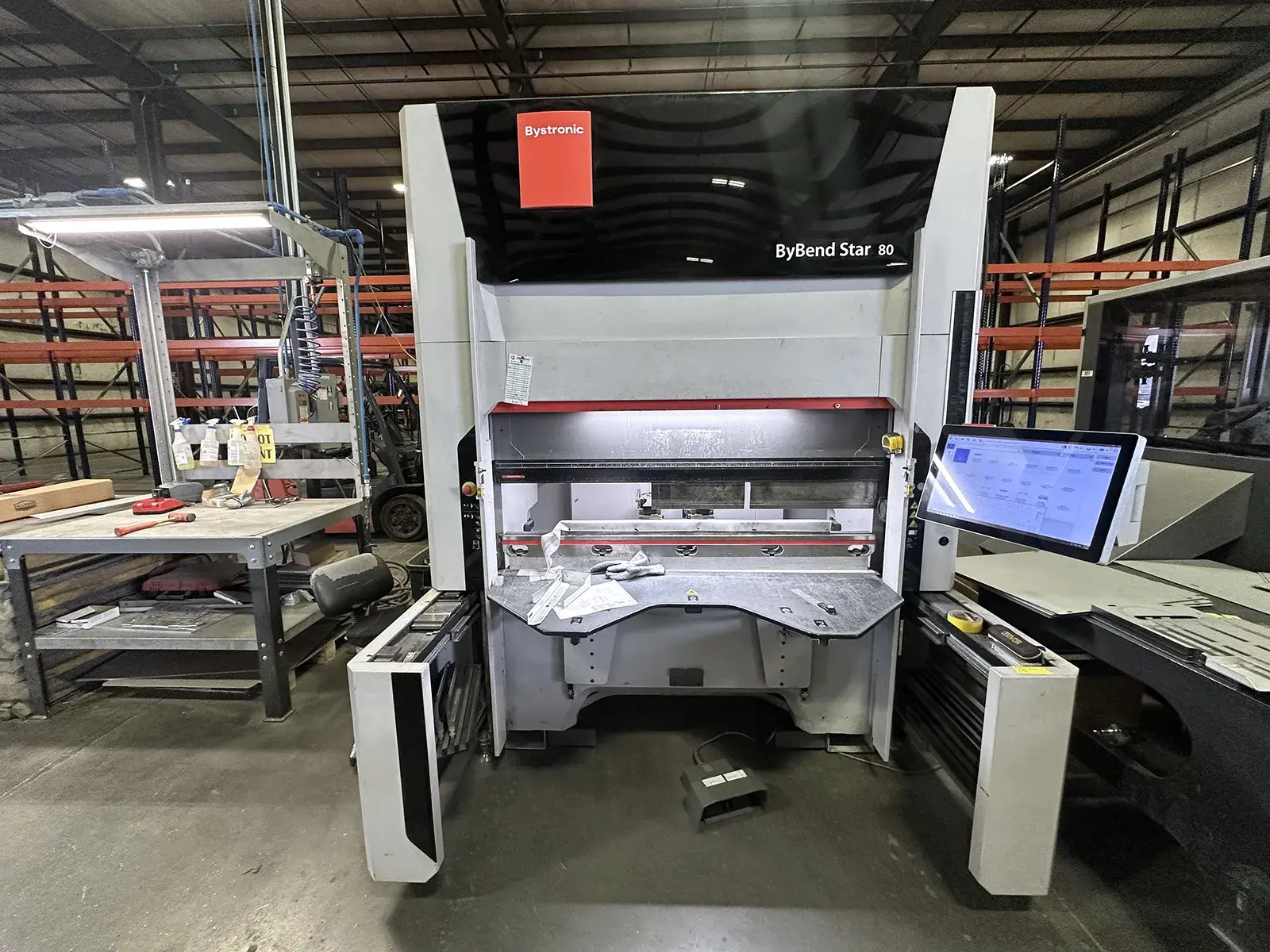

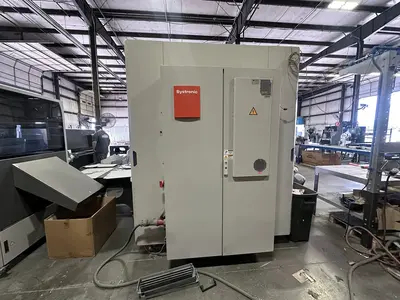

USED 2023 BYSTRONIC BYBEND 80/1530

6-axis back gauge| mobile bending robot
The Bystronic ByBend 80/1530 Robotic Press Brake (2023) with Bystronic control delivers fast, precise, and automated sheet metal bending in a compact footprint. Featuring a high-speed servo-hydraulic drive, it efficiently produces brackets, panels, enclosures, and custom components for appliance, medical device, electronics, and general fabrication industries.

Tonnage: 88 Tons
Bending Length: 60.2"
Standard stroke [S]: 7.9"
Open height [D]: 20.3"
Distance Between Side Frames: 61.8"
Table width: 2.4"
Max. back gauge range X-axis: 19.7"
X-Axis Travel: 11.8"
X-Axis Speed: 3543 in/min
R-Axis Travel : 3.9"
R-Axis Speed: 1181 in/min
Z-Axis Travel: 57.3"
Z-Axis Speed: 4724 in/min
Max. Y-approach speed: 591 in/min
Max. Y-working speed: 59 in/min
Y-position accuracy: 0.00016"
Oil Capacity: 53 gal
Main Motor Power: 15 kW
Weight: 14,330 lbs
Dimensions: 80" x 70" x 102" (L x W x H)

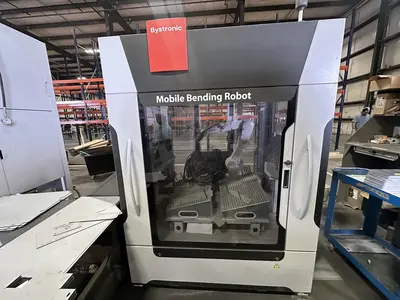

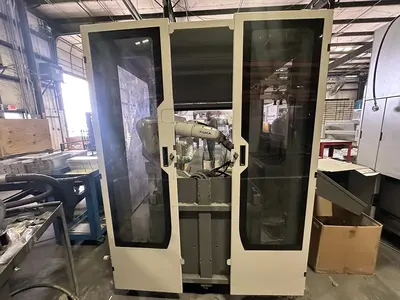

Mobile Bending Robot
Productive clamping pack RF-A Pro tooling
Custom Gripper Tooling

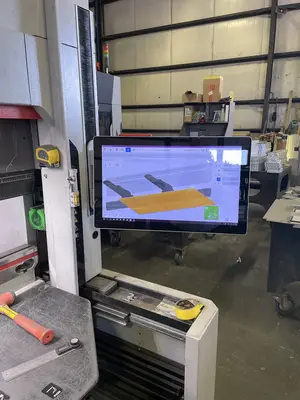

ByVision Bending control with 22 Inch Full HD display and touch technology
Servo-Hydraulic Drive system
6-axis back gauge
LED Lighting
Ergo arm support
tool and bend and foot switch
Optical Bend Guiding System Upper Tool Clamping
Fast Bend G2 safety system with manual height adjustment
