Junair Wet Coat Paint System

Virtually brand-new, fully commissioned & tested — never used in production!:
Original cost: over $5,000,000 new:

System Highlights:
- Manufacturer: Junair Spraybooths — premium European engineering:

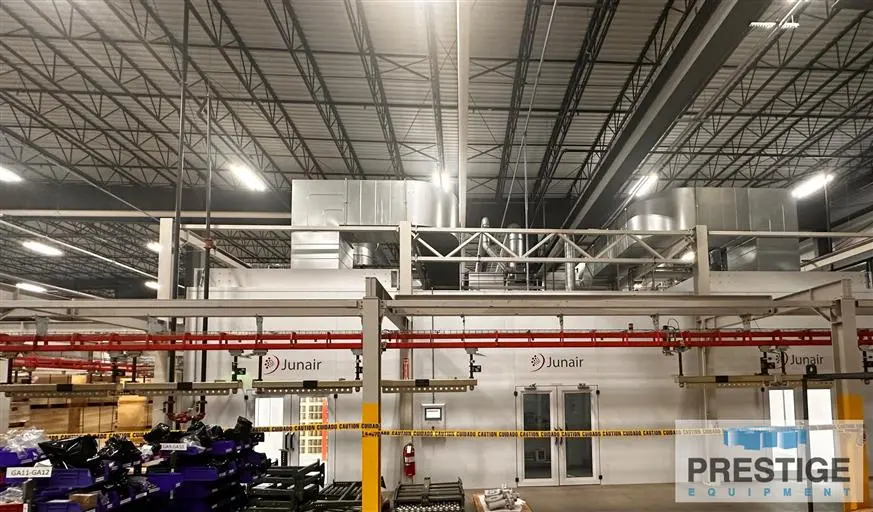

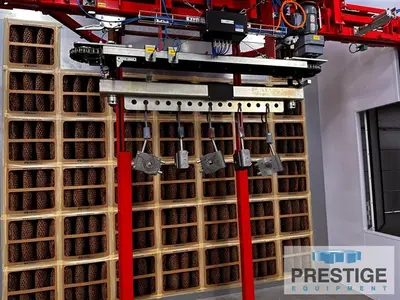

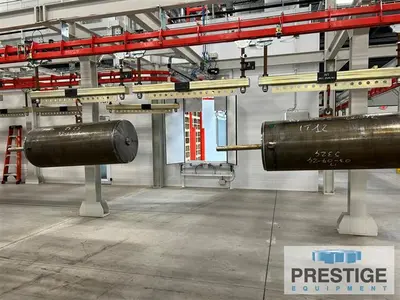

- Type: Fully integrated Power & Free overhead conveyorized paint finishing plant:
- Part Capacity: 1,200 kg (2,646 lb) per load:

- Complete Line Includes:
- Single-stage pre-treatment wash tunnel (Bonderite C-NE 3300) with automatic doors:
- Full shot-blast room (236" long × 118" wide × 118" high) with full-floor abrasive recovery system:
- Two (2) large spray booths (primer + top-coat) — 157.5" L × 157.5" D × 157.5" H each:
- Dedicated primer and top-coat flash-off zones:
- Air handling units, exhaust systems, ductwork, lighting, and PLC controls:
- All ancillary equipment and electrical panels:

Key Dimensions (internal clearances):
- Pre-treatment tunnel: 66.9" wide × 63" high:
- Spray booths: 157.5" long × 157.5" deep × 157.5" high each:
- Shot-blast room: 236" long × 118" wide × 118" high:

Condition:
Fully commissioned and tested by the manufacturer. Never placed into production — the intended product line did not arrive from overseas. This is a virtually brand-new, high-quality paint finishing system in excellent condition with zero production hours.:
Currently installed in Plant:

NOTE:
Inspect in Plant.:
Full Drawings and Specifications Available on Request.:
