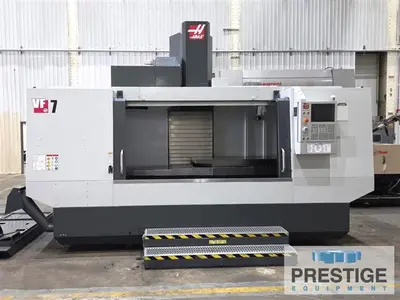

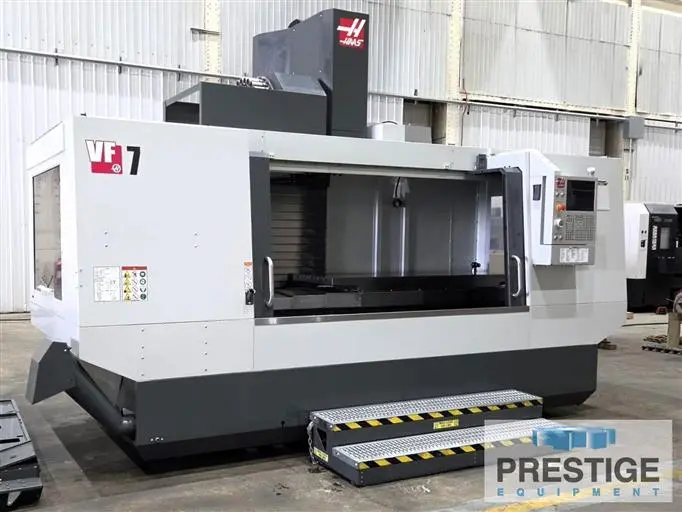

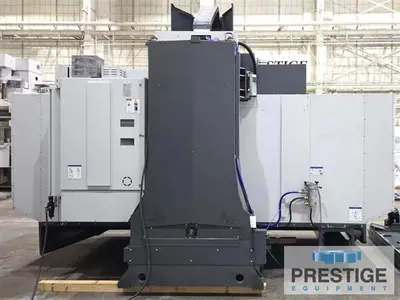

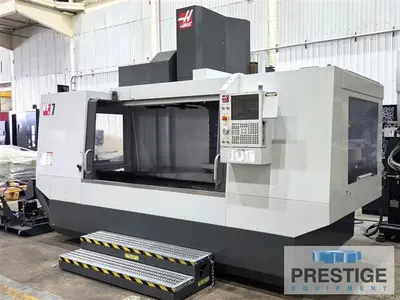

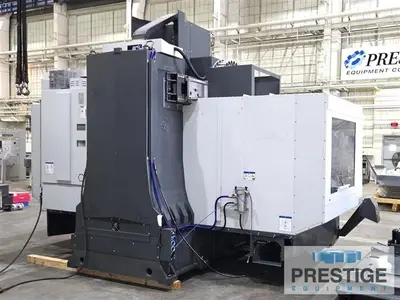

USED 2021 HAAS VF-7/40 4-AXIS

SPECIFICATIONS:
X-Axis Travel: 84"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Nose to Table: 4"-34"
Max. Cutting Feeds: 500 IPM
Rapids on X, Y, & Z Axis: 600 IPM

SPINDLE:
Spindle Motor, 2-Speed Gearbox: 20 HP (Option)
Max. Spindle Speed: 10,000 RPM (Option)
Max Torque w/opt Gearbox: 250 ft-lbf @ 450 RPM
Drive System: Inline Direct-Drive
Spindle Taper: CT-40

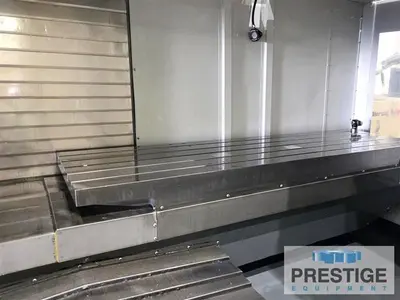

TABLE:
Table Size: 84" x 28"
Max Weight on Table: 4000 Lbs.
Number of Standard T-Slots: 5
T-Slot Width: 0.626" x 0.630"
T-Slot Center Distance: 4.92"

AUTOMATIC TOOL CHANGER:
Type: Side-Mounted
ATC Capacity: 30 + 1
Max Tool Dia. Adjacent Full: 2.5"
Max Tool Dia, Large, Adjacent Empty: 5.0"
Max Tool Dia, Extra Large, Adj Empty: 6.0"
Max Tool Length: 16"
Max Tool Weight: 12 Lbs.

SHIPPING DIMENSIONS:
Domestic Pallet: 214" x 102" x 128.5"
Approx. Weight: 25,600 Lbs.

CNC CONTROL:
Haas NextGen CNC Control:
Remote Jog Handle with Touch Screen:
Wifi Connection:
4th-Axis Ready:

Equipped With:
10,000 RPM 20 HP 2-Speed Geared Head Spindle Options
30-Position Side-Mounted Automatic Tool Changer
CAT 40 Spindle Tape
Brushless 4th Axis Drive
Renishaw Probing System with Parts Probe and Tool Setter
High Speed Machining
Rigid Tapping
Chip Auger
Programmable Coolant
300 PSI Thru Spindle Coolant
Coolant Tank & Pumps
Haas Window Blast
Keys, Leveling Pads, & Manuals

LOCATION:
Under Power in Philadelphia

HOURS:
2,737 Power On Time

Features:
Haas NextGen CNC Control with Remote Jog, Wifi
10,000 RPM Spindle Speed Option
20 HP Geared Head Spindle Option
30-Position Side-Mounted ATC
CAT 40 Spindle Taper
Brushless 4th Axis Drive
Thru-Spindle Coolant
Renishaw Probe
Chip Auger
