USED 1994 AMADA HFA400W
Overview

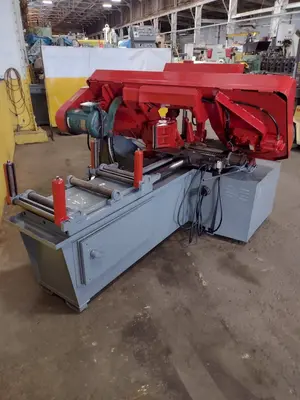

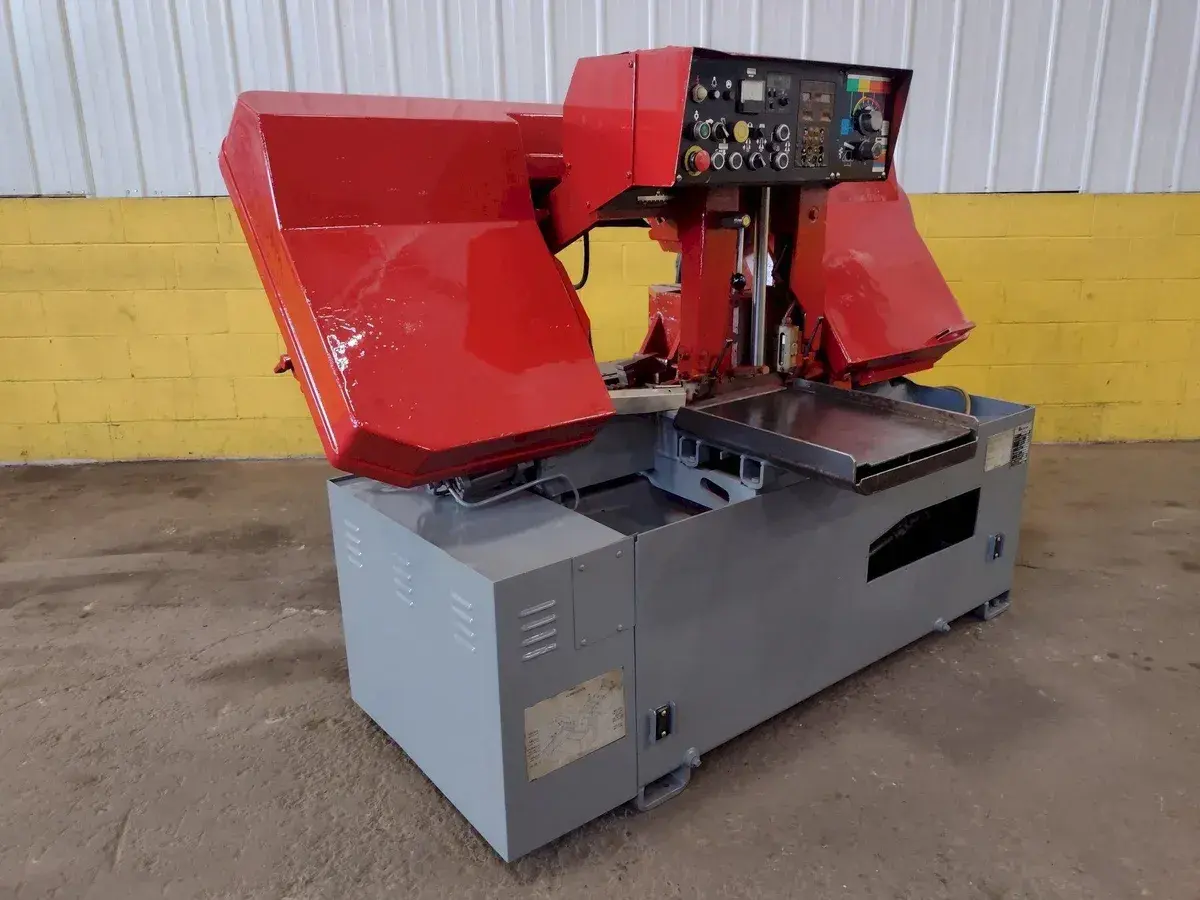

1994 AMADA Model #HFA400W AUTOMATIC Horizontal Bandsaw 16" X 16" Capacity
The Amada Model HFA400W is a heavy-duty, fully automatic horizontal scissor-style bandsaw engineered for high-production, precision metal cutting. It is highly prized for its rigid construction, programmable material indexing, and reliable blade management systems.
Specs
Cutting Capacity & Workload
Round Capacity: 1.18″ to 16.54″
Rectangle Capacity (W x H): 16″ × 16″
Work Load Weight Capacity: 5,511 lbs
Index Stroke (Single): 19.6″
Blade & Drive Specifications
Blade Dimensions: 15′ Long × 1-1/2″ Wide × 0.050″ Thick
Blade Speed: 56 to 295 ft/min (stepless, 60Hz)
Blade Tension: Hydraulic
Saw Blade Motor: 7.5 HP (5.5 kW)
Mechanical & Utility Requirements
Hydraulic Pump Motor: 2 HP (1.5 kW)
Coolant Pump Motor: 1/4 HP (0.18 kW)
Hydraulic Tank Capacity: 10.6 gallons
Coolant Tank Capacity: 31.7 gallons
Machine Dimensions: ~106″ L × 90″ W × 96″ H (Head-Up)
Machine Weight: 6,000 lbs
Equipped With
Feeding System: Shuttle type NC back gauge with auto multi-indexing (up to 99 cut-off lengths)
Clamping: Full-stroke hydraulic vise
Blade Control: Hydraulic pressure & flow control valve with automatic quick-approach feeler
Safety & Monitoring: Equipped with idler wheel motion detector (stops blade on break/jam) and blade deviation monitor
Front & Rear Vise
Hydraulic Tension Contol
