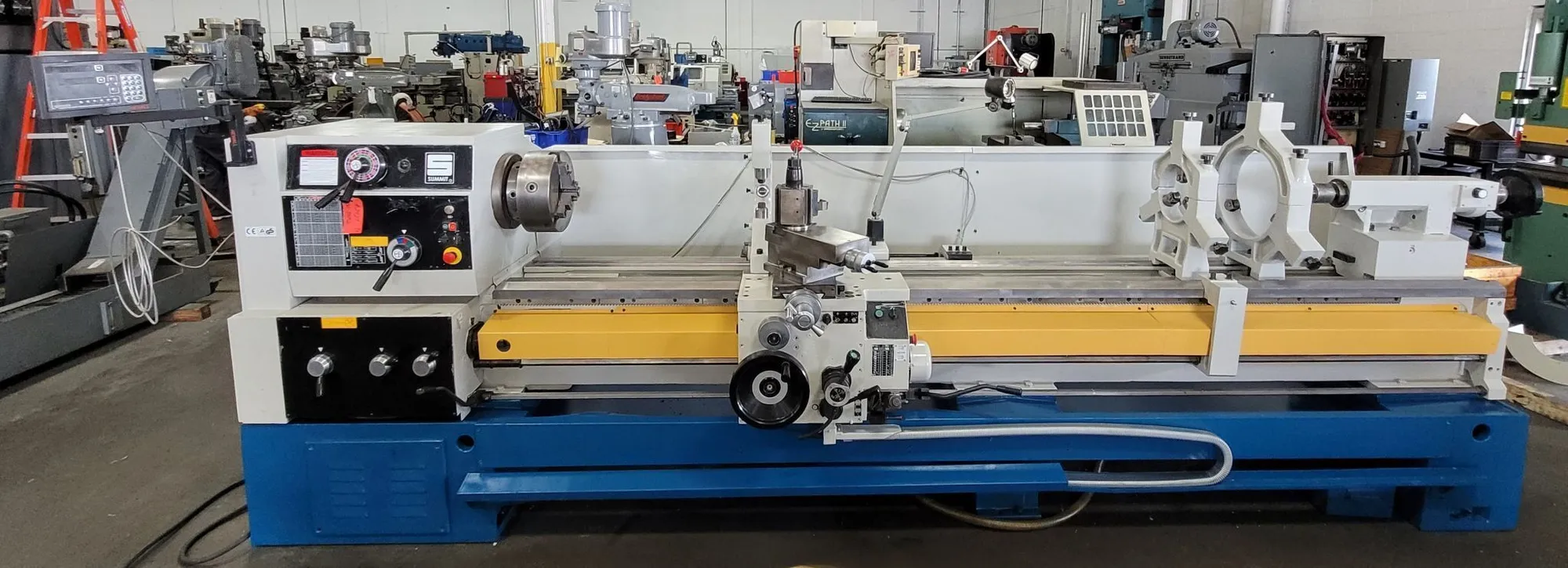

USED 2012 SUMMIT 24X120B

Summit 24″ Engine Lathes turn rings around other lathes in this class. They are affordable, rugged, reliable, and easy to operate. They are ISO compliant, include a vast array of features and accessories as “standard” and offer a variety of built-in safety features
Due to the solid construction from 100% cast iron, Summit 24″ Engine Lathes are built for long-term use and are known for consistent performance and durability even under the most demanding work conditions. Standard on every lathe is a quick-change gearbox for cutting metric, module, and diametrical pitch threads, as well as standard American (inch) threads

Specifications:
Swing Over Bed: 25″
Distance Between Centers: 120″
Swing Over Cross Slide: 17″
Swing Over Gap: 33″
Hole Through Spindle: 4″
Spindle Speeds: 20 – 1,250 RPM (21 Steps)
Spindle Nose: D1-8
Threads per Inch (Number/Range): (64) 1/4 – 60
Metric Threads (Number/Range): (64) .5 – 120
Travel of Spindle Barrel: 9 1/2″
Diameter of Spindle Barrel: 3 1/2″
Tailstock Center: # 5 M.T.
Width of Bed: 15 3/4″
Motor: 15 HP

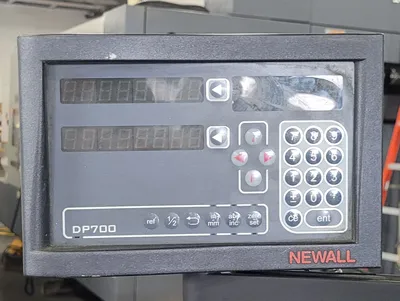

Newall DP700 DRO
Taper Attachment

Standard Features:
Cross-ribbed headstock for added strength and stability
Anti-friction mounted shafts and dynamically balanced components for improved accuracy
Hardened and ground alloy steel gears, shafts, and splines for long-lasting accuracy
Precision chrome alloy spindle with large 4″ spindle bore for workpiece flexibility
Clutched headstock for more precision control and long-lasting reliability

All cast iron construction provides a solid foundation for vibration absorption and rigidity
Hardened and precision ground bedways for long-lasting accuracy

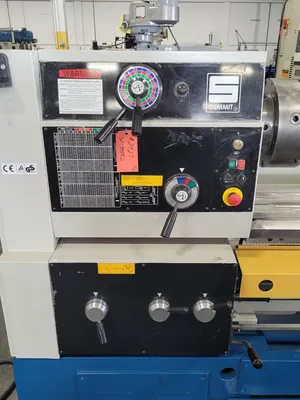

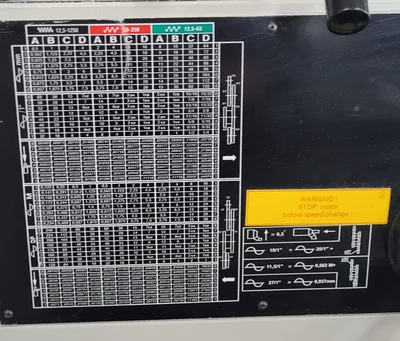

Quick change gearbox cuts American (inch), metric, module, and diametrical pitch threads

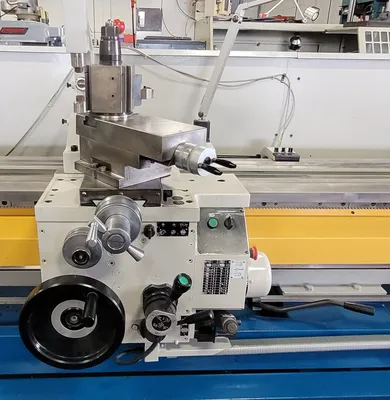

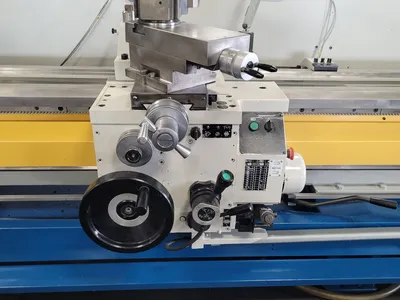

Rapid traverse on carriage (4-way joystick)

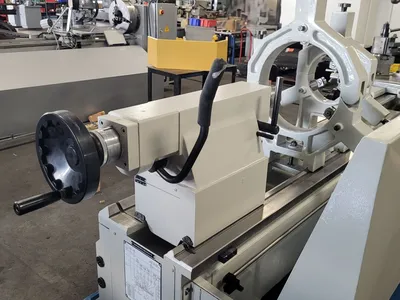

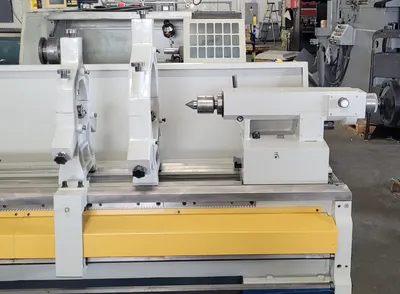

Two speed tailstock for faster setups

Standard Equipment:
Thread Dial

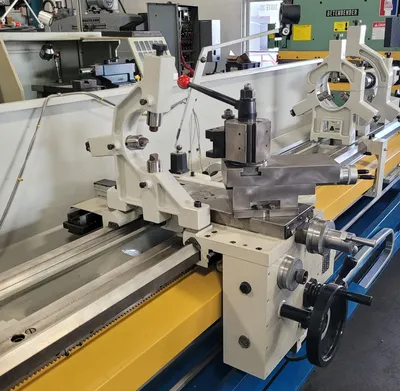

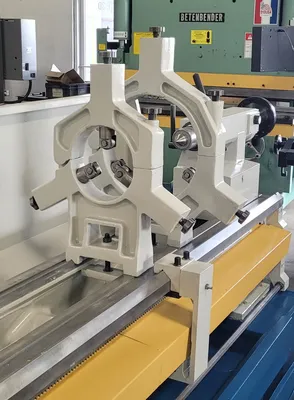

Standard Steady Rest
Follow Rest
Coolant System
Carriage Stop
Taper Attachment
Work Light

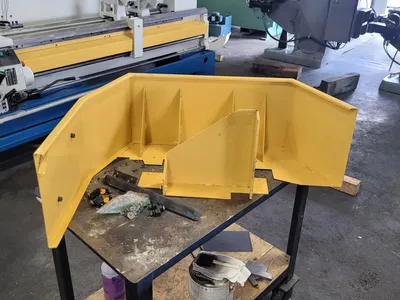

Full-Length Splash Guard

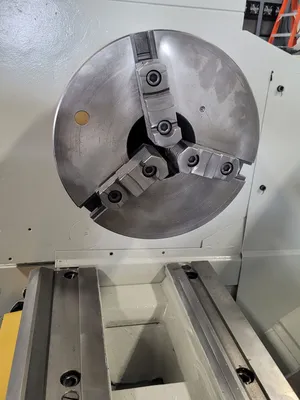

3-Jaw Chuck

Mechanical Specifications:
196" in length, 60" in width, and 60" in height
Shipping Weight: approx. 9,200 lbs.
