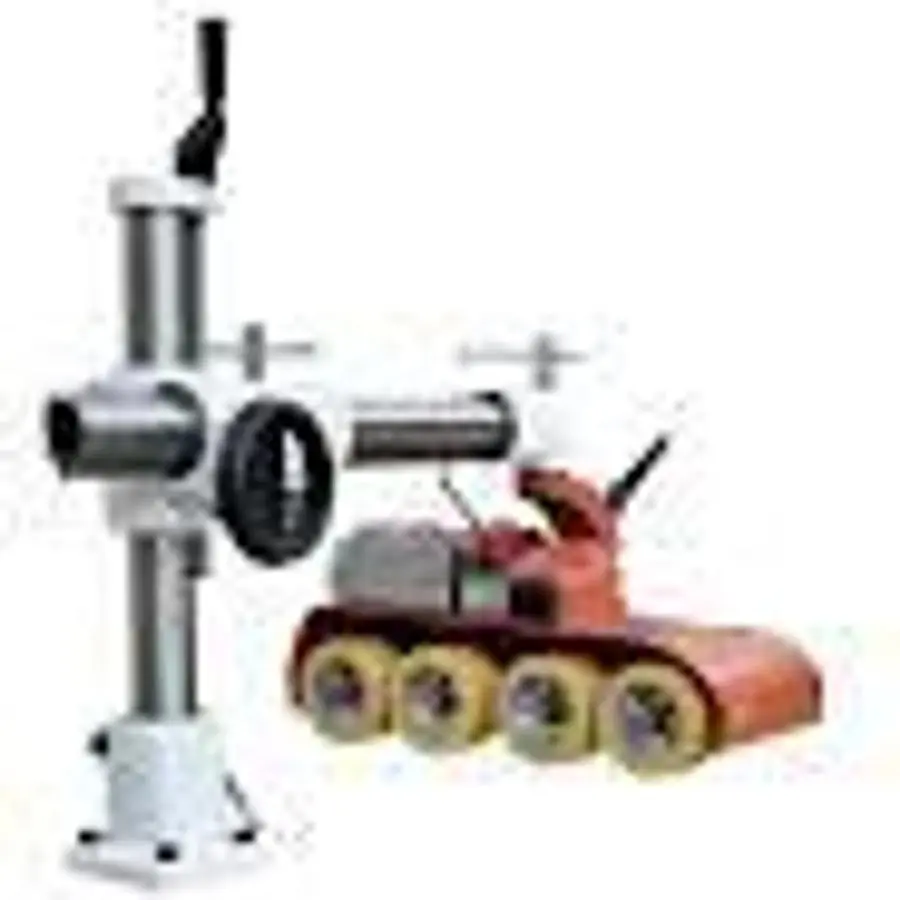

NEW CANTEK DC-40

Type - 4 Wheel Variable Speed
Horse Power & Rotation - 2/3HP (1HP AC Equivalent), 1-3 Phase, 110-220V; Forward/Reverse
Range of Speeds - 5 - 72 FPM
Roller Size - ∅120 x 60 mm (∅4-3/4″ x 2-3/8″) &
∅120 x 25 mm (∅4-3/4″ x 1″)
Roller Suspension - 18 mm (3/4″)
Base Bolt Pattern - 108 x 90mm Center to CenterDC40 Drawing
Available in 1PH 110V, 1PH 220V, and 3PH 220V. Performance is the same so we recommend whichever setup is easiest to hook up and run. 110V draws about 4.5 amps and 220V draws about 2.25 amps. These feeders are equipped with wing nuts for quick and easy replacement of the rollers.
*Includes standard SG13 Stand/Mount.
