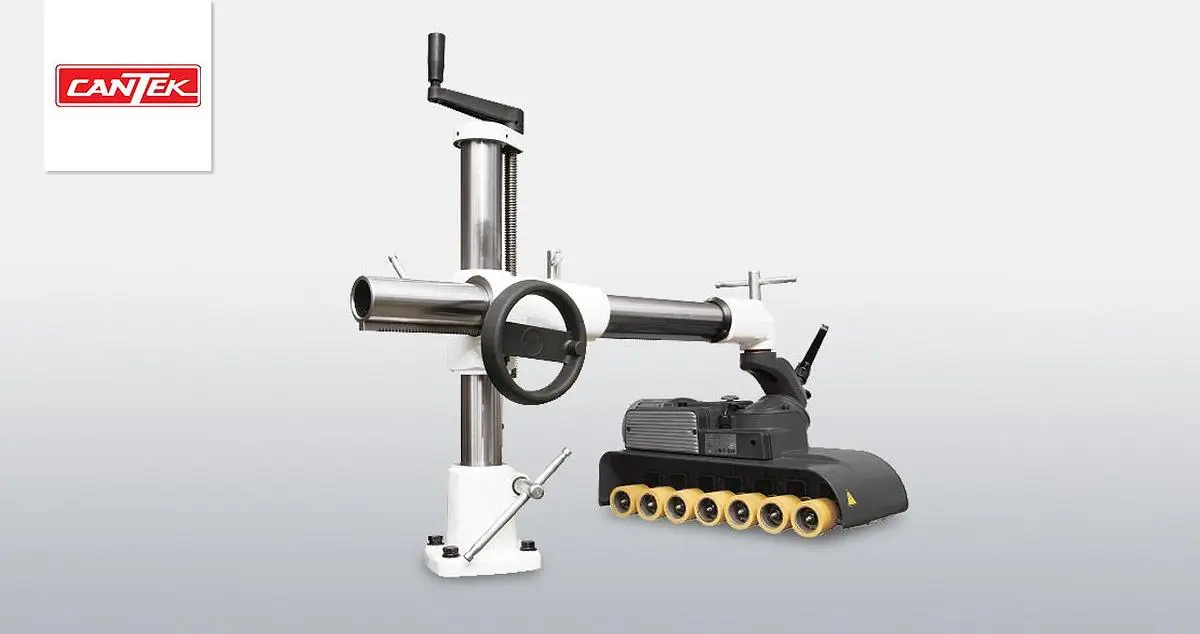

NEW CANTEK SHORT STOCK DC70

Ideal for feeding of short material
7-rolls at 2.36” (60mm) which are closely coupled with a center to center distance of 2.43” (61.7mm)
Universal stand allows the operator to change the feeder for vertical to horizontal feeding direction or angles as desired

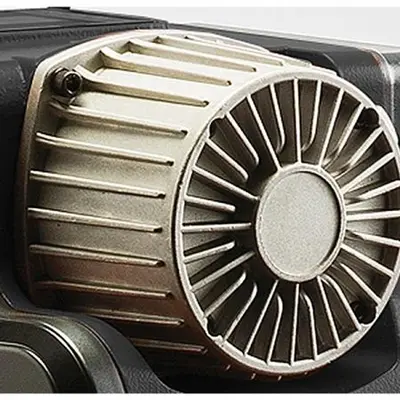

DC brushless servo motor requires 75% less energy with high torque
Infinitely variable feed speed from from 7~86 FPM

Roller Size - Ø60 x 60 mm (Ø2.36″ x 2.36″)
Number of Rollers - 7
Feeding Speed -2 – 26 M/min (7 – 86 FPM)
Max. Power Output - 500W
Horsepower - 2/3 HP
Voltage - 100-120V / 1 Phase 200-240V / 1 or 3 Phase
Machine Weight - 24 kg (53 lbs)
Stand Weight - 30 kg (66 lbs)
Packing Size:
Machine - 630 x 350 x 310mm (24.8” × 13.8” × 12.2”)
Packing Size: Stand - 758 x315 x 285mm (29.8” x 12.4” x 11.2”)
Packing Weight: Machine 26 kg (57 lbs)
Packing Weight: Stand - 32 kg (72 lbs)
