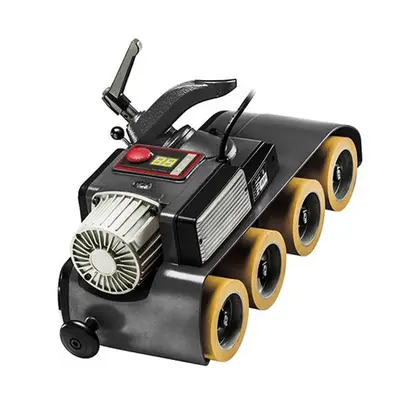

NEW CANTEK SMART 4 WHEEL VARIABLE SPEED POWER FEEDER

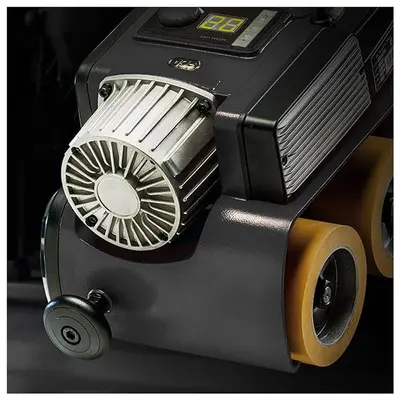

High efficiency DC brushless servo motor
High efficiency = more power, more torque!
Saves +50% power output over other feeders of the same size
Electronic variable feed speed adjustment for optimum cut quality

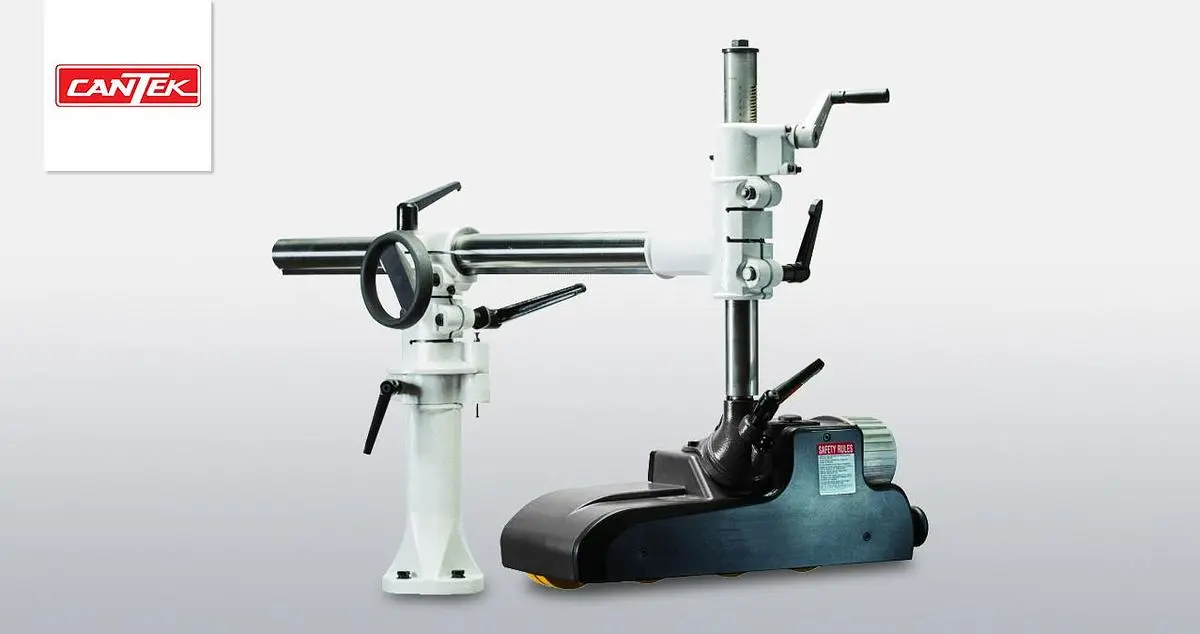

Includes SS103 Heavy Duty Smart Stand with the following features
42” horizontal adjustment arm for even greater reach
Front mounted vertical adjustment for added operator convenience
Memo-locking allows for quick and accurate relocation of the feeder unit after adjusting it out of position

Horsepower / Rotation
2/3 HP (500 Watt),1 or 3PH; Forward/Reverse
Range of Speeds (50Hz) (60Hz)
2-22 M/Min (7-72 FPM)
Rollers
Φ120 x 25 mm x 8 rolls (split)
Roller Suspension
18mm (3/4″)
Net Weight
23 + 41 + 10 Kg (51 + 91 + 22 Lb)
Gross Weight
25 + 43 + 11 Kg (55 + 95 + 24 Lb)
Carton for Body
686 × 326 × 316 mm (27″ × 12-3/4″ × 12-3/8″)
Carton for Stand
770 x 320 x 290 mm (30-3/8″ x 12-5/8″ x 11-1/2″)
Carton for Overarm
1080 x 60 x 60 mm (42-1/8″ x 2-3/8″ x 2-3/8″)
