Spray Dryer with water evaporation capacity 1,075 lbs/hour (488 kg/hour)

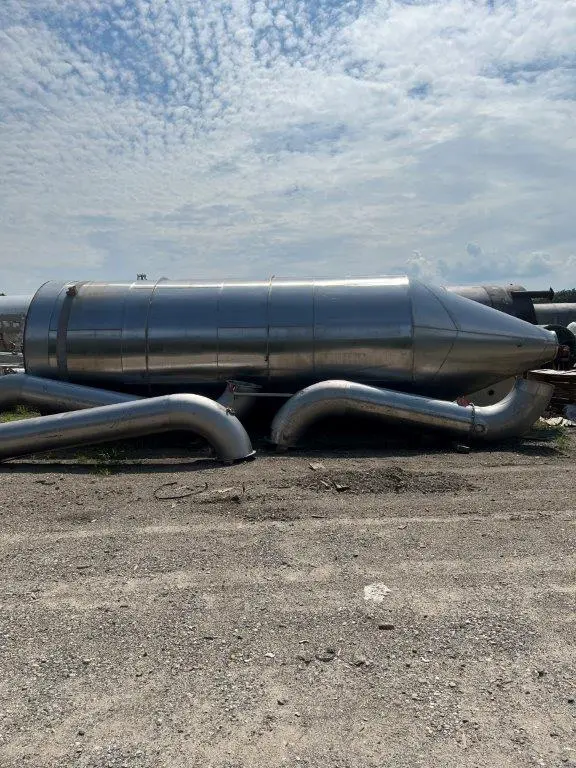

Used 102" (2,590 mm) Diameter Stainless Steel Spray Dryer System

Overall dimensions: 102" diameter × 18' length (2,590 mm × 5,490 mm)
Product feed capacity: 1,454 lbs/hour (660 kg/hour) at 25% solids
Inlet temperature: 400°F (204°C)
Outlet temperature: 200°F (93°C)
Powder output: 379 lbs/hour (172 kg/hour) at 4% final moisture
Total water evaporation rate: 1,075 lbs/hour (488 kg/hour)
Material of construction: Stainless steel

System includes:
Stainless steel drying chamber
Baghouse dust collector
Burner system
Process blowers
Interconnecting ductwork
