USED HEALD #171 GAGEMATIC

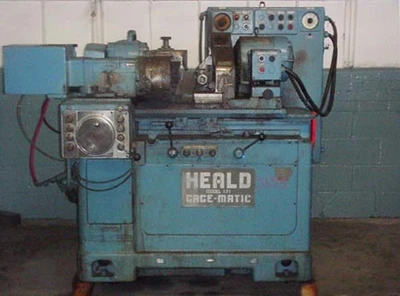

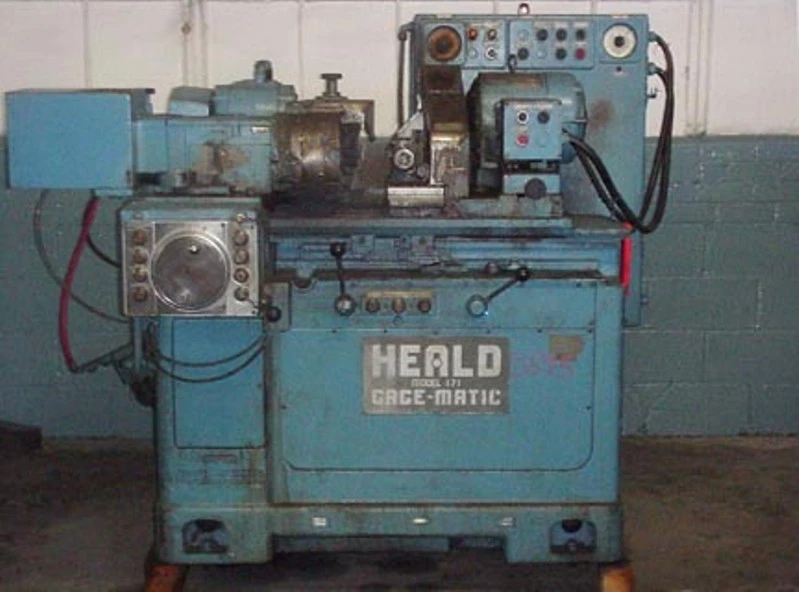

171 HEALD GAGEMATIC Internal Grinder. Specs include 13 3/4" size capacity, year 1964, with essential features like Red Head spindle and electric single point diamond dresser. Ideal for precision internal grinding tasks.

171 HEALD GAGEMATIC INTERNAL GRINDER

S/N 42162 Year: 1964

STANDARD CATALOG SPECIFICATIONS
Maximum swing, straight work, on center line dia... 13 3/4
Maximum swing over table........................... 11 3/4
Swing inside standard guard diameter............... 8
Maximum length of hole............................. 3
Maximum diameter of hole........................... 2
Minimum diameter of hole........................... 1/8
Maximum included angle (Sizematic only)............ 60 degrees
Center of chuck spindle from floor................. 44
Diameter of work head spindle flange............... 6
Table travel....................................... 12

SPEEDS FEEDS
Table speed rapid traverse...................... 35 FPM
Table speeds for grinding unlimited between....... 0 20 FPM
Work head speed two step sheave................. 960 or 1360 RPM
One turn of cross feed hand wheel................. .060 on dia.
Maximum power cross feed.......................... .042 on dia.
Wheel wear compensation on diameter............... 0 .004

DRIVE
Work head motor -
Std. voltages...................... 60 cycle a c 1 HP 1800 RPM
Oil pump motor..................... 60 cycle a c 1 1/2 HP 1800 RPM
Wheel head motor................... 60 cycle a c 5 HP 3600 RPM
Coolant pump motor................. 60 cycle a c 1/4 HP 1800 RPM

GENERAL DATA
Capacity of oil tank............................... 10 gallons
Capacity of coolant tank........................... 55 gallons
Net weight of machine (approx.).................... 5,400 lbs.
Floor space with or without coolant tank. . . . . . 70 x 74

EQUIPMENT FEATURES
Red Head spindle
Electric single point diamond dresser
All trip dogs
Facing stop
Rough finish timers
