Mazak VTC200C Vertical Machining Center (2011), 12000 RPM, Mazatrol 640 CNC, Chip Conveyor
| size | 65" x 20" x 20" | 65" x 20" x 20" |
| X Travel | 65.35" | 1,659.9 mm |
| Y Travel | 20.08" | 510.03 mm |
| Z Travel | 20.08" | 510.03 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 20" | 508 mm |
| Table-L | 78" | 1,981.2 mm |
| # Axis | 3 | 3 |

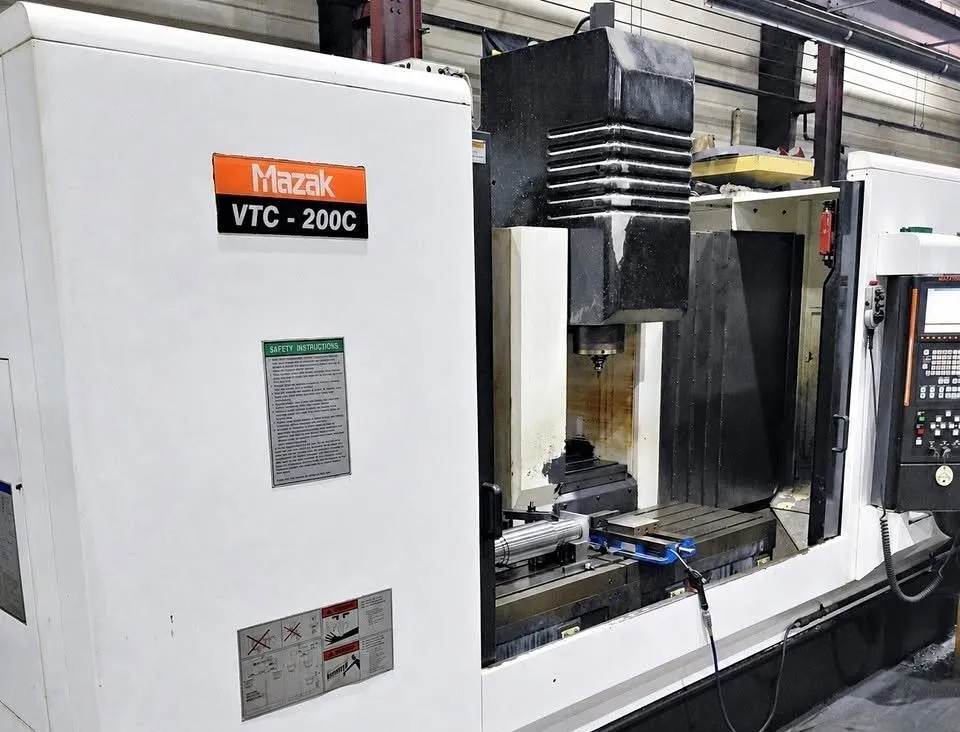

Mazak VTC-200C CNC Vertical Machining Center

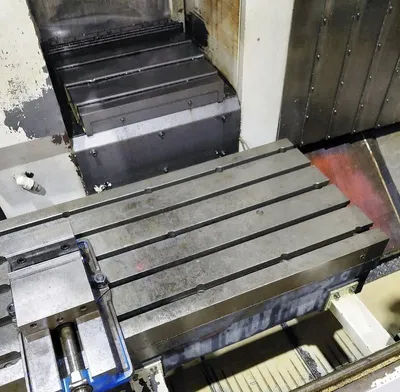

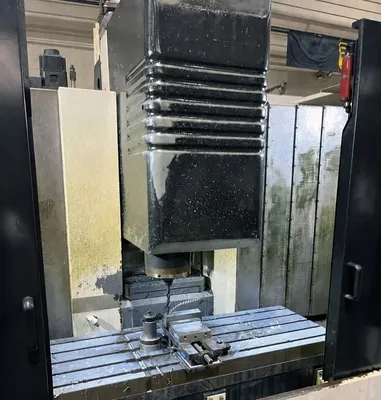

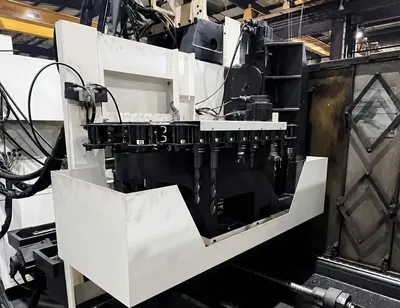

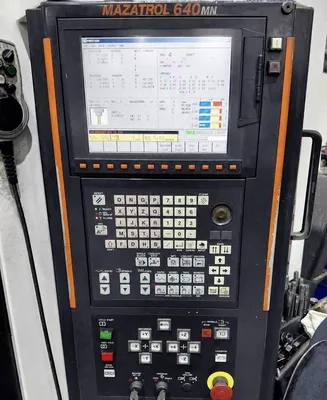

Designed for exceptional rigidity and accuracy in vertical machining. With 66-inch X, 20-inch Y, and 20-inch Z travels, a 78×20 inch table, and a 12000 RPM CAT 40 spindle, it provides the cutting power and work envelope needed for a variety of production and tooling applications. The Mazatrol 640 control simplifies programming while the Mayfran chip conveyor ensures clean, continuous operation during long production cycles.
Compared to the smaller Mazak VTC-160, the VTC-200C delivers longer travels, greater table capacity, and higher horsepower capability—ideal for users seeking more versatile mid-size machining power without sacrificing precision or speed.
12000 RPM, Mazatrol 640 CNC, Chip Conveyor
