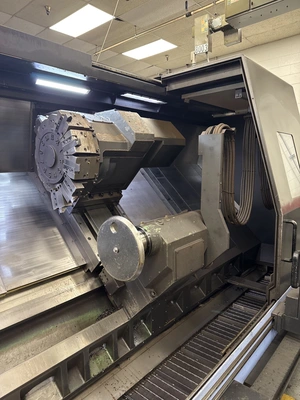

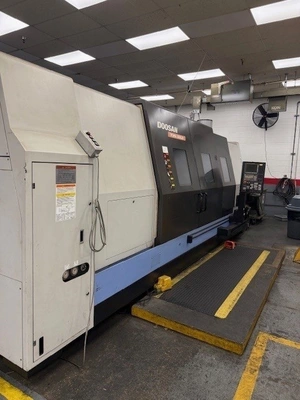

2015 Doosan PUMA 800LM CNC Universal Big Hole Lathe (12.2) available, used but powerful. Offers 35.4" turning diameter, 126" machining length, and 60 HP. Equipped with FANUC 32i-A CNC color control, MILLING OPTION, chip conveyor, and 4 jaw manual chuck. Robust option for precision machining.
| Swing Over Bed | 40.5" | 1,028.7 mm |
| Machining Length | 126" | 3,200.4 mm |
| Distance Between Centers | 141" | 3,581.4 mm |
| Turning Diameter, Shaft Diameter | 35.4" | 899.16 mm |
| Chuck Size 1 | 32" | 812.8 mm |
| Spindle Nose 1 | A1 - 20 | A1 - 20 |
| Spindle Bore Diameter 1 | 12.6" | 320.04 mm |
| Spindle Bar Capacity 1 | 12.6" | 320.04 mm |
| Spindle Speeds 1 | 750 RPM | 750 RPM |
| Spindle Horsepower 1 | 60 hp | 44.7 kW |
| X1 - Axis Travel | 18.5" | 469.9 mm |
| Z1 - Axis Travel | 127.3" | 3,233.4 mm |
| C1 - Axis Travel | .001 | .001 |
| Rapid Traverse Rate - X1 | 472 in/min. | 199.8 mm/sec. |
| Rapid Traverse Rate- X2 | 630 in/min. | 16 m/min. |
| Spindle Torque | 4873 | 4873 |
| Gear Ranges | 3 | 3 |
| Turret Configuration 1 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 3,000 RPM | 3,000 RPM |
| Tailstock Quill Diameter | 6.3" | 160.02 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 5.9" | 149.86 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 124" | 3,149.6 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 12.6" | 320.04 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |

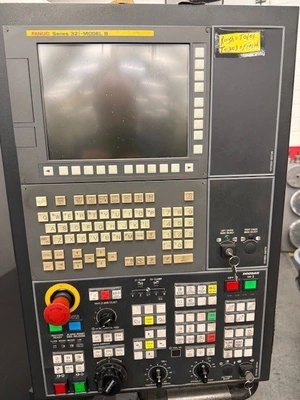

FANUC 32I-B CNC COLOR CONTROL
MANUAL GUIDE I CONVERSATIONAL CONTROL
USB PORT
CHIP CONVEYOR
DOOSAN TOOL LOAD MONITORING

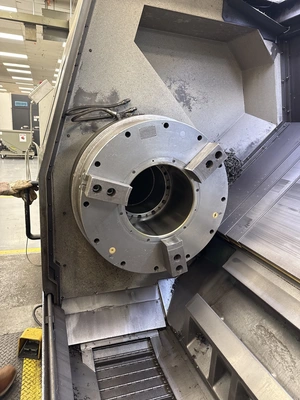

32" AIR CHUCK

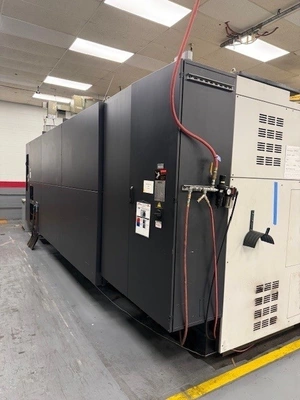

MIST COLLECTOR

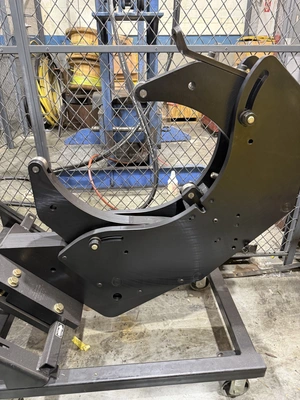

BRAND NEW RIP MANUAL STEADY REST
