ACCURL GENIUS PRO B32135 Hydraulic CNC Press Brake (2020)
| size | 150 Ton x 10 | 150 Ton x 10 |
| Tonnage | 150 T | 136.078 t |
| Type | HYD | HYD |
| Overall Length | 120" | 3 m |
| Between Housings | 106" | 2.7 m |
| Stroke | 7.87" | 199.9 mm |

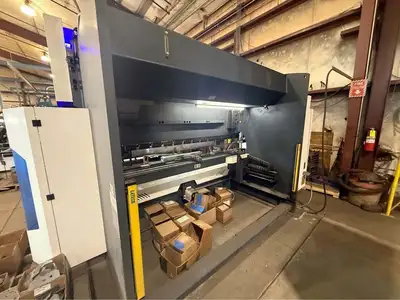

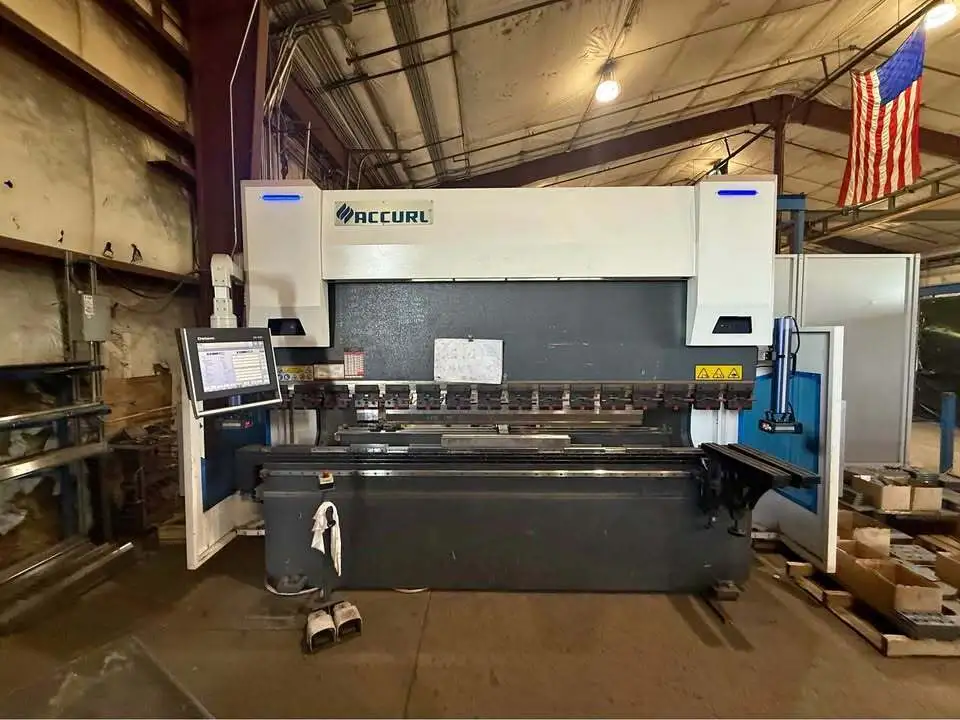

Accurl Genius PRO B32135 Hydraulic CNC Press Brake (2020)
Working Length - 125.98"
Max Tonnage - 151.8 Tons
Max. Stroke - 7.87 "
Distance Between Columns: 106 inches
Ram Stroke: 7.87 inches
Open Height (Daylight): 18.7 to 19.0 inches
Throat Depth: 15.7 inches
Rapid Approach - 472.4 IPM
Working Speed - 18.9 IPM
Return Speed - 354.3 IPM
Main Motor Power - 15 HP
Machine Dimensions: Approximately 165” L x 70” W x 105” H
Weight - 18519 LBS
