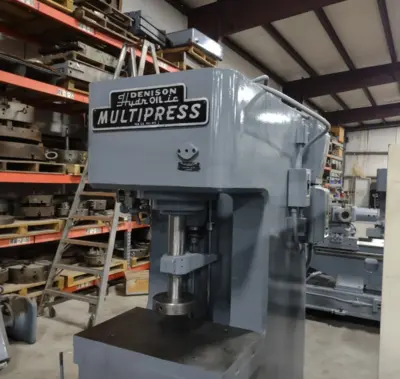

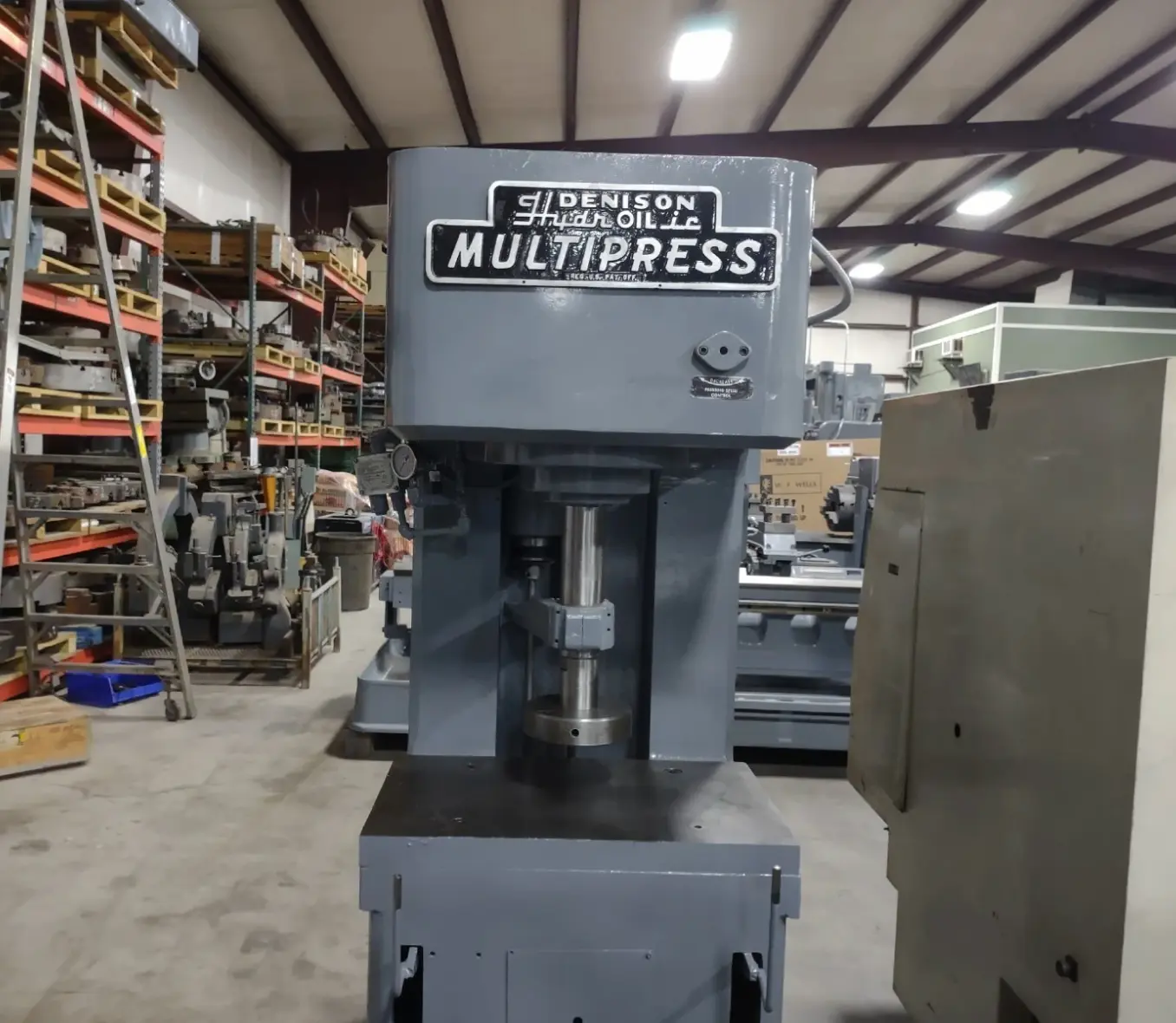

Used DENISON SPEC-LA-35-C92 C-Frame Press: 35-ton capacity, 12" stroke, and 24" daylight. Features a 3-1/4" ram, 28.5" x 17.75" bed, and a 30 HP motor. Measures 42" x 60" with a 96" height and weighs 9,500 lbs. Equipped with dual palm levers.
| Tonnage | 35 T | 31.752 t |
| Dimensions | L-R 42" X F-B 60" X Height 96" | L-R 42" X F-B 60" X Height 96" |
| Weight | 9,500 Lbs. | 9,500 Lbs. |
Maximun Tons:.................................35
Stroke:.......................................12″
Daylight:.....................................24″
Ram:..........................................3-1/4"
Bed:..........................................28.5″ x 17.75″
Bolster Plate.................................28.5″ x 17.750″
Main Motor:...................................30 HP 220 Wired 3 Phase
Floor Space:..................................42″ LR x 60″ FB
Height:.......................................96"
Weight:.......................................9,500 Lbs.
Dual Palm Levers..............................Yes
