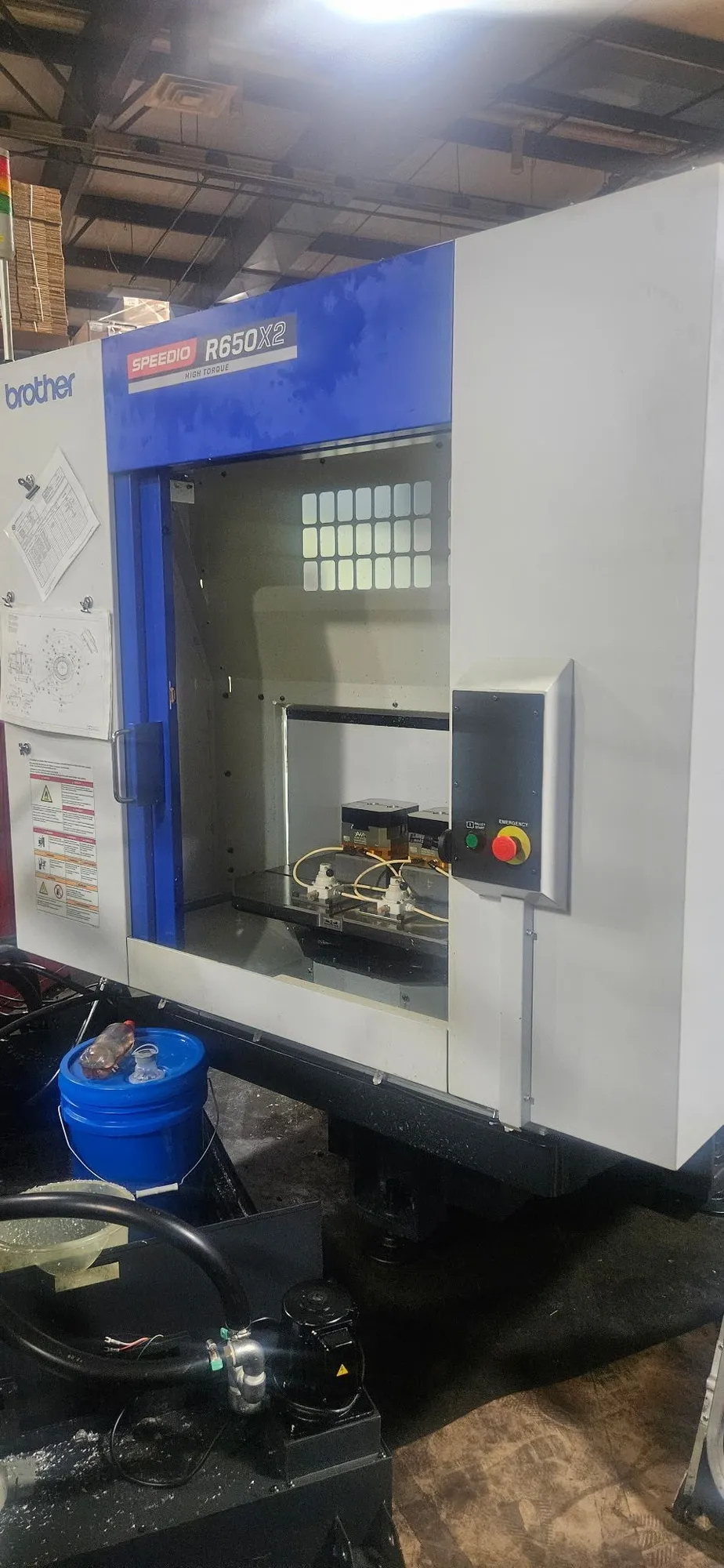

USED 2022 BROTHER SPEEDIO R650X2

ONE USED LATE MODEL BROTHER “SPEEDIO” CNC DRILLING & TAPPING DUAL ROTARY PALLET MACHINING CENTER with HIGH TORQUE SPINDLE
Model: Speedio R650x2
Pallet size: 31.5” x 15.7”
Pallet indexing time: 3.4 seconds
Travels: 25.6” x 15.7” x 12”
Rapid travels: 1,969 ipm in X, Y, & Z
Cutting feed rates: 0.04-1,181 ipm
Distance from table top to nose: 9.8” – 21.8”
Max. jig height: 16.5”
Spindle RPM: 10,000
Max. tapping RPM: 6,000
Spindle taper: Cat 30 Big Plus
Spindle HP: 17/11.7 HP High Torque
ATC capacity: 22
Tool to tool: 0.8 sec
Chip to chip: 1.6 sec
Dimensions: 74.7” x 135.7” x 106.1” high x 7,716 lbs.
Shipping dimensions:
Machine: 75” x 120” x 88” high
Coolant pan: 66” x 34” x 28” high
Chip pan: 35” x 60” x 27” high

EQUIPPED WITH:
CNC – C00 control with PLC
Manual Pulse Generator
3-stage light
Work light
Spindle speed override
Shower gun
Coolant system w/200L tank
CTS prepped
Top cover
Door interlock
Blum ZX Speed wired w/150mm riser
Dual pallets, rotary type
16) Cat 30 Big Plus tool holders, 6) ER32, 10) Straight shank from 5/16” to 1”
Original Shipping brackets installed

New: 2022, SN: JPN 126176

Hours: as of June 16, 2026
On Hours: 2,190
Operation Hours: 629:27:40

Fixtures in photos are included

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

Video link: https://youtube.com/shorts/WH9y4Uj0Yak?si=0hEUApztGg5U6eE9

F.O.B. Lake Zurich, IL Serving industry since 1978

Best regards, Jerry Ditter, Pres. - Call 847-265-1075
