USED 2020 ACCURL MS8- 8X3200
Overview
Description

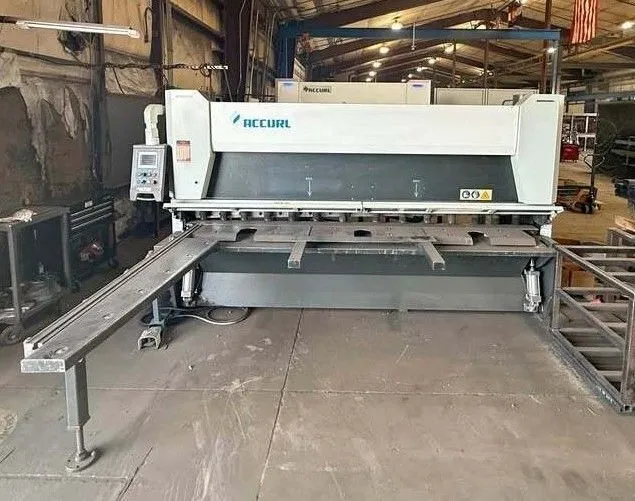

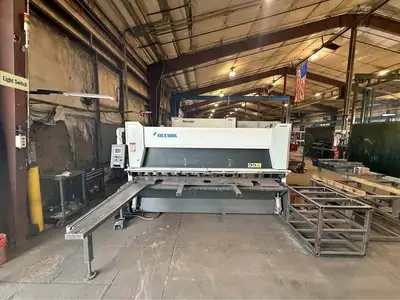

ACCURL MS8-8X3200 CNC Hydraulic Shear (2020)
Specifications
| Max Thickness | 0.3125" | 7.9375 mm |
|---|---|---|
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 33" | 838.2 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 13 strokes/min. | 13 strokes/min. |
Maximum Cutting Length: 125.98 inches / 3200 mm
Cutting Capacity (Mild Steel): 0.31 inches / 8 mm
Cutting Capacity (Stainless Steel): 0.21 inches / 5.3 mm
Shearing/Rake Angle: Variable from 0.5° to 1.5°
Stroke Speed: 13 strokes per minute
Blade Length: 129.92 inches / 3300 mm
Throat Depth: 3.94 inches / 100 mm
Maximum Operating Pressure: 250 bar
Oil Tank Capacity: 58.1 Gallons / 220 Liters
Electrical System requirements: 220V operating voltage / 60 Hz frequency / 24V DC
