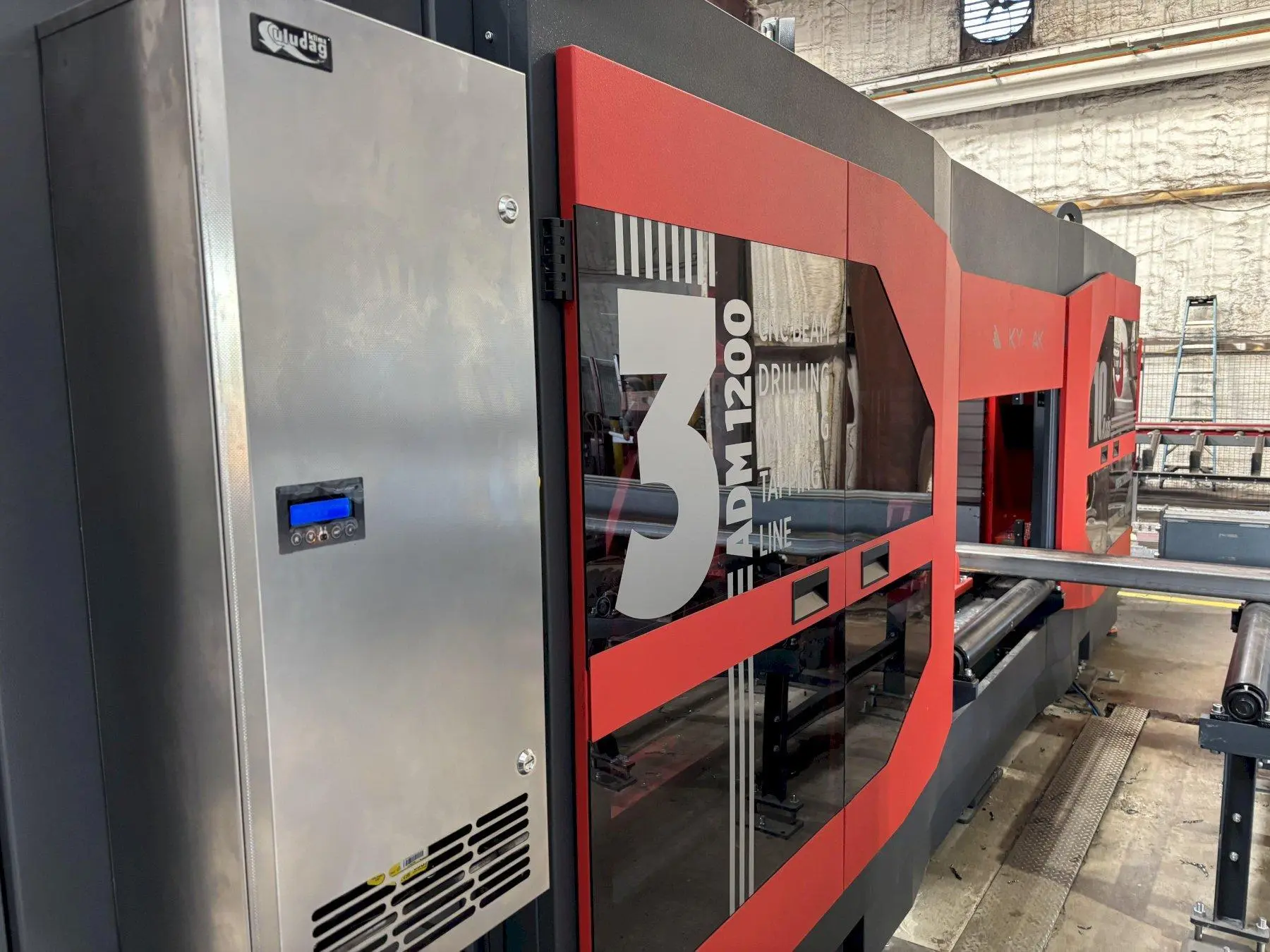

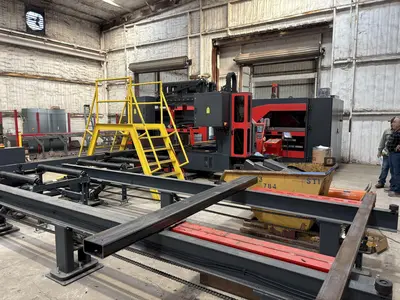

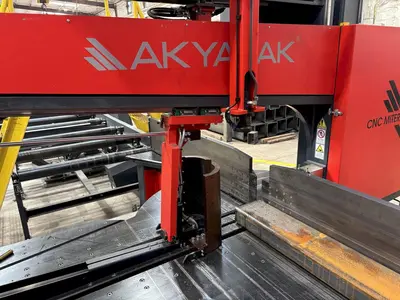

AKYAPAK 3 ADM 1200 3-SPINDLE DRILLING & CUTTING LINE

Equipped With
AKYAPAK 3 ADM 1200 3-SPINDLE DRILLING & CUTTING LINE
New: 2025
Specifications:
Control:  Siemens
Number of Vertical Drilling Units:  1
Number of Horizontal Drilling Units:  2
Drilling Diameter Range:  3/8 in – 1-1/2 in
Spindle Speed Range:  50 – 3,000 RPM
Spindle Motor Power:  30 HP
Spindle Torque:  103 lb-ft
Automatic Tool Changers:  1 ATC per Spindle (4 Tools per ATC)
Tool Cooling System:  MQL
Tool Holder:  BT 40 (Internal Coolant Hole)
Maximum Beam Width:  48 in
Maximum Beam Height:  20 in
Sawing Specifications:
Main Saw Motor:  20 HP
Mitering Servo Motor:  2.0 HP
Chip Brush Motor:  0.16 HP
Hydraulic Pump Motor:  7.4 HP
Blade Length:  32.8 ft
Cutting Speed:  65 – 328 ft/min
Working Height:  31.5 in
Mitering Angle:  +60° / -60°
Maximum Sawing Capacity:  51 in × 24 in
Minimum Sawing Capacity:  2.56 in × 1.77 in
Equipped with:

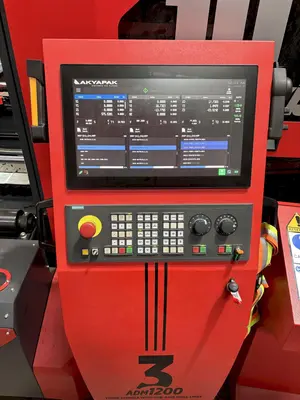

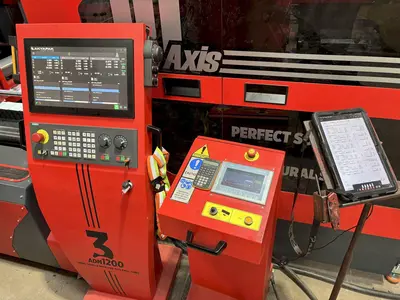

Siemens Touch-Screen Control

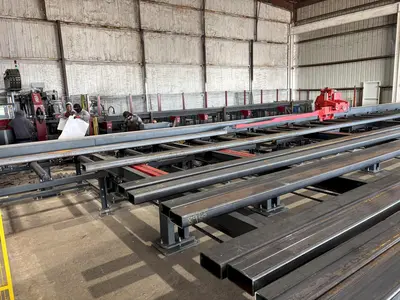

60 ft Infeed System
60 ft Outfeed System

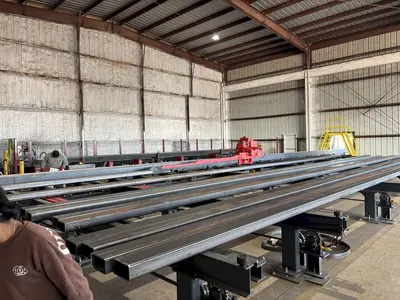

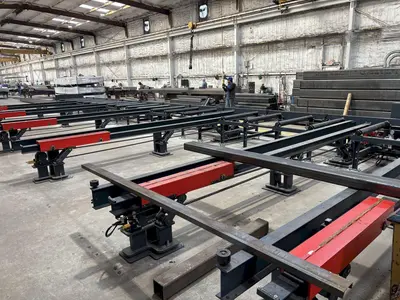

Transfer Tables
Underscribe Scribing Station
Automatic Tool Measurement
Automatic Material Measurement
Chip Conveyor
Oil Cooler

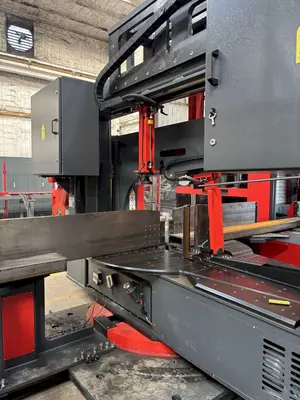

Akyapak AST 1300 Horizontal Bandsaw
