USED NANXING "NPL3340 HG"

Lot Closes:: 7/1/2026 9:00:00 AM PT

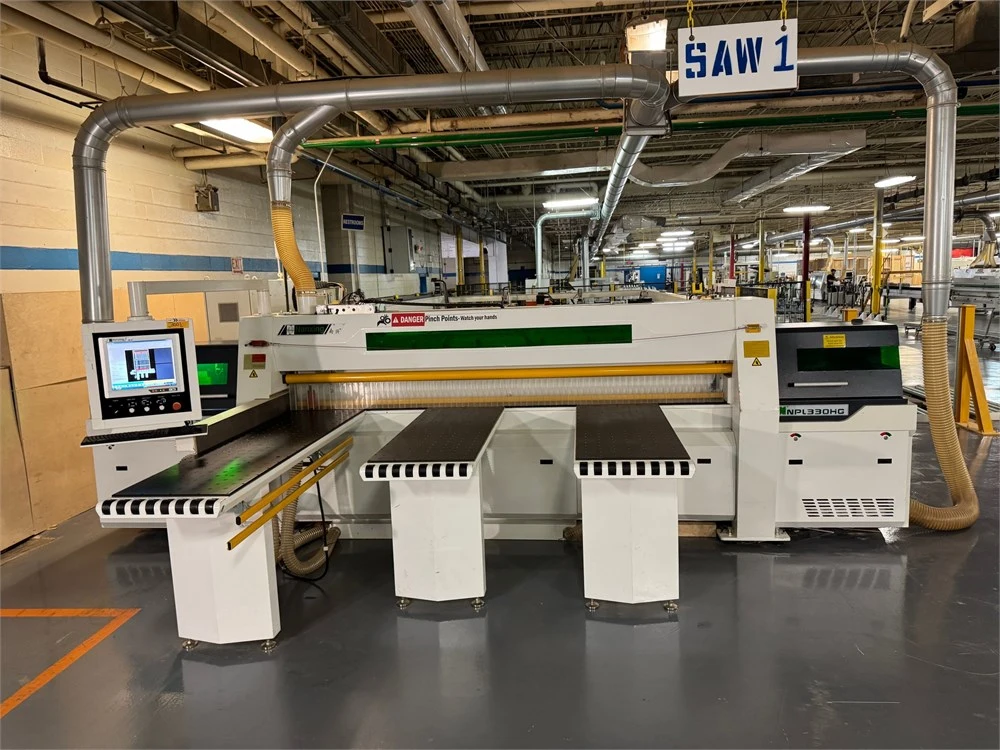

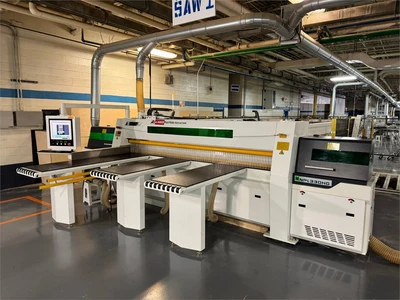

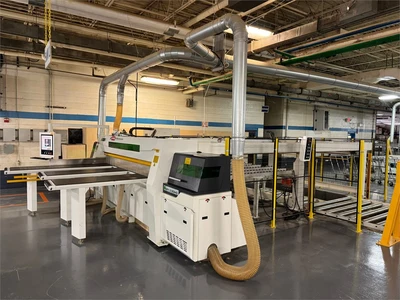

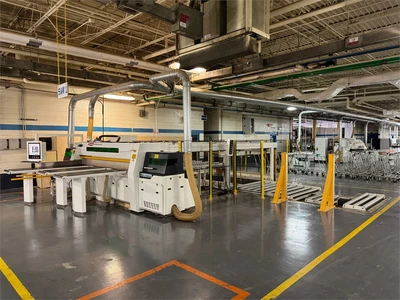

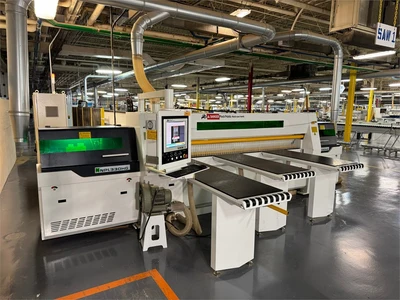

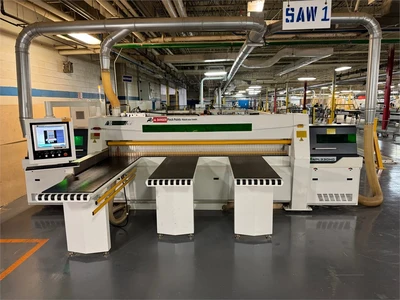

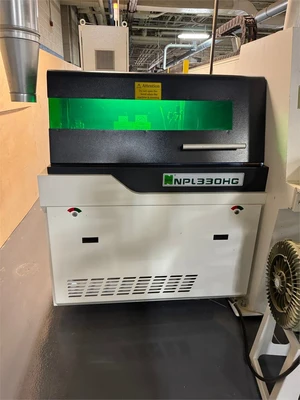

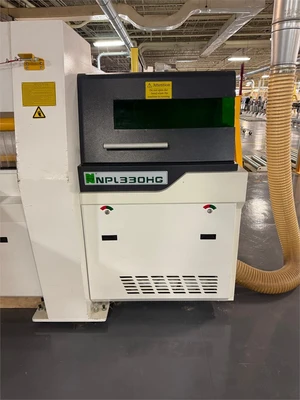

Nanxing NPL3340-HG Rear-Load CNC Beam Saw with Hydraulic Lift Table (2019)
Manufactured by Nanxing, one of the world's largest woodworking machinery manufacturers, and supported in North America through Castaly Industries, this 2019 Nanxing NPL3340-HG Rear-Load Beam Saw is designed for high-production panel processing environments. Featuring an automatic hydraulic rear loading system, servo-controlled saw carriage, computerized optimization software, and heavy-duty construction, this machine is ideally suited for cabinet manufacturing, closet production, furniture manufacturing, millwork operations, and panel processing facilities.
The rear-load design allows operators to efficiently process large panel stacks while minimizing material handling and maximizing throughput. Independent main and scoring saw assemblies provide exceptional cut quality, while automatic panel optimization software improves yield and reduces waste.
Comparable to HOMAG Holzma, Biesse Selco, SCM, Schelling, and Holz-Her beam saw systems.
Features

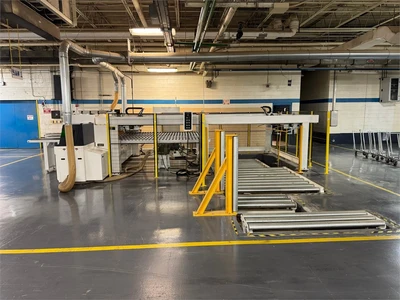

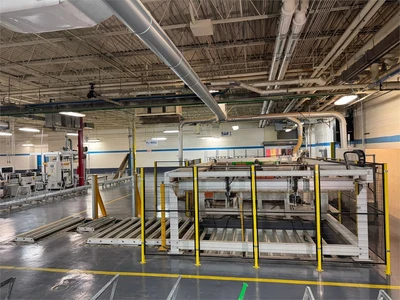

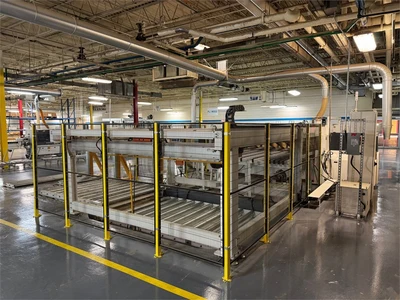

• Hydraulic rear-loading lift table

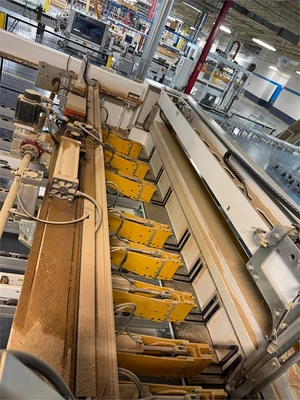

• Servo-driven saw carriage

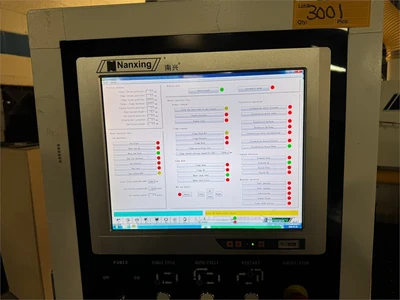

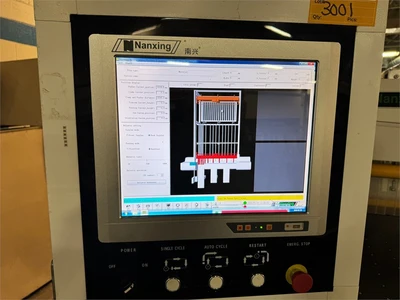

• Automatic panel optimization software

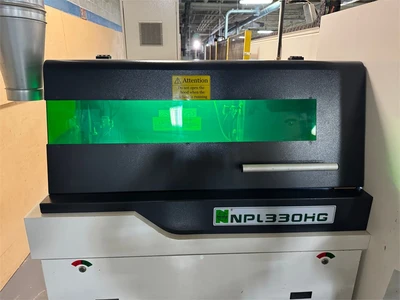

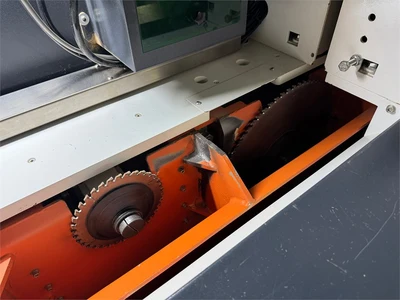

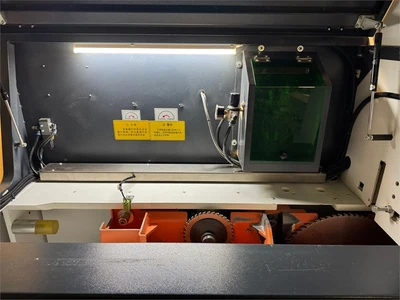

• Independent scoring saw and main saw assemblies

• Side alignment system for accurate squaring

• Automatic saw height positioning

• Heavy-duty industrial frame construction

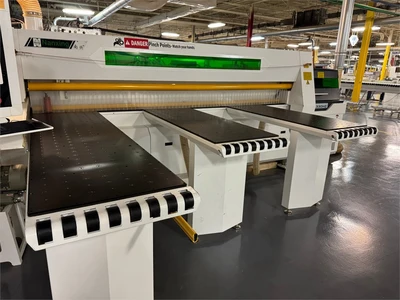

• Air flotation material support tables

• Barcode and production reporting capabilities

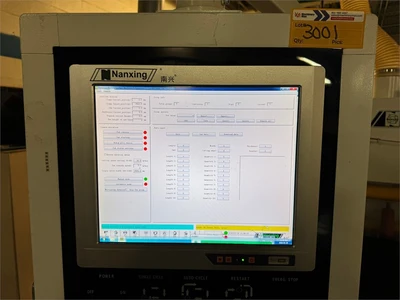

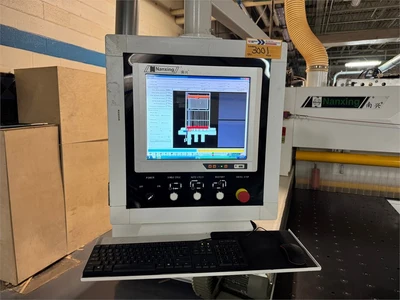

• Industrial PC control system

• Designed for high-volume cabinet and furniture production
Technical Specifications

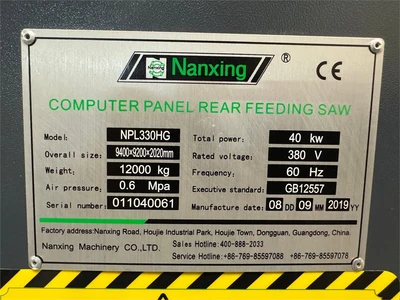

Model: NPL3340-HG
Maximum Cutting Length:

• 3,300 mm (129.9")
Maximum Cutting Thickness:

• 120 mm (4.72")
Main Saw Motor:

• 18.5 kW (24.8 HP)
Main Saw Speed:

• 3,910 RPM
Scoring Saw Speed:

• 4,150 RPM
Saw Carriage Speed:

• Forward: 90 m/min

• Return: 120 m/min
Automatic Feeding Speed:

• Up to 85 m/min
Rear Feed Speed:

• Up to 60 m/min
Hydraulic Lift Capacity:

• Up to 5 Tons
Dust Collection Ports:

• (3) 150 mm Connections
Total Connected Power:

• Approx. 40 kW
Electrical:

• 480 Volt

• 3 Phase
Approximate Overall Dimensions:

• 31' x 31' x 7' H
Approximate Weight:

• 26,400 Lbs.
Machine Includes

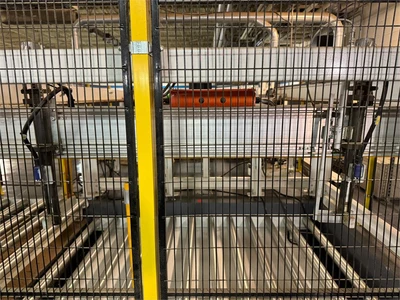

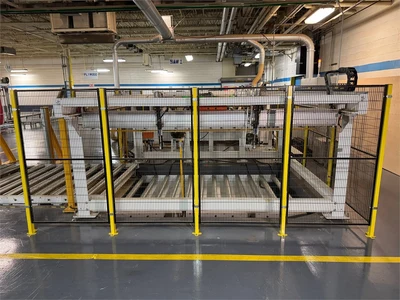

• Hydraulic Rear Lift Table

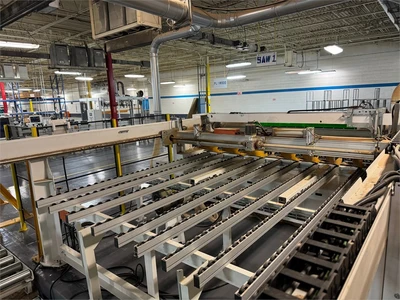

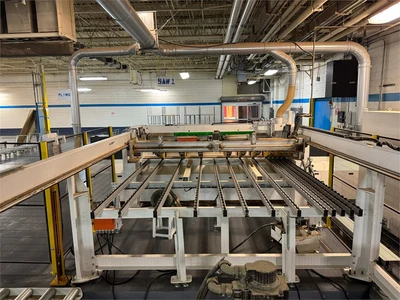

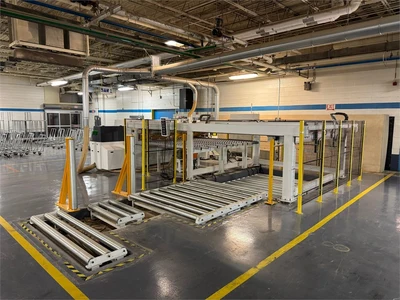

• Rear Loading Conveyor System

• Computerized Control System

• Optimization Software

• Servo Driven Saw Carriage

• Air Float Tables

• Dust Collection Connections
Applications
• Cabinet Manufacturing

• Closet Manufacturing

• Architectural Millwork

• Furniture Manufacturing

• Panel Processing Facilities

• Store Fixture Production

• High-Volume Woodworking Operations
The information presented herein is believed to be accurate but is not guaranteed. Buyers are encouraged to inspect the equipment and verify all specifications prior to bidding.

Phase: 3 PHASE
Voltage: 208-230/460
Buyer Inspection Period: June 24 and June 25th 8:00AM - 3:00PM
Load Out Period: July 7-24 2026 By Appt Only
Estimated Dimensions: 31' x 31' x 7'H O.A.
Seller Comment: Buyer responsible for disassembly, packing and load out or hiring a rigger to do so
Load Fee: 0.00
