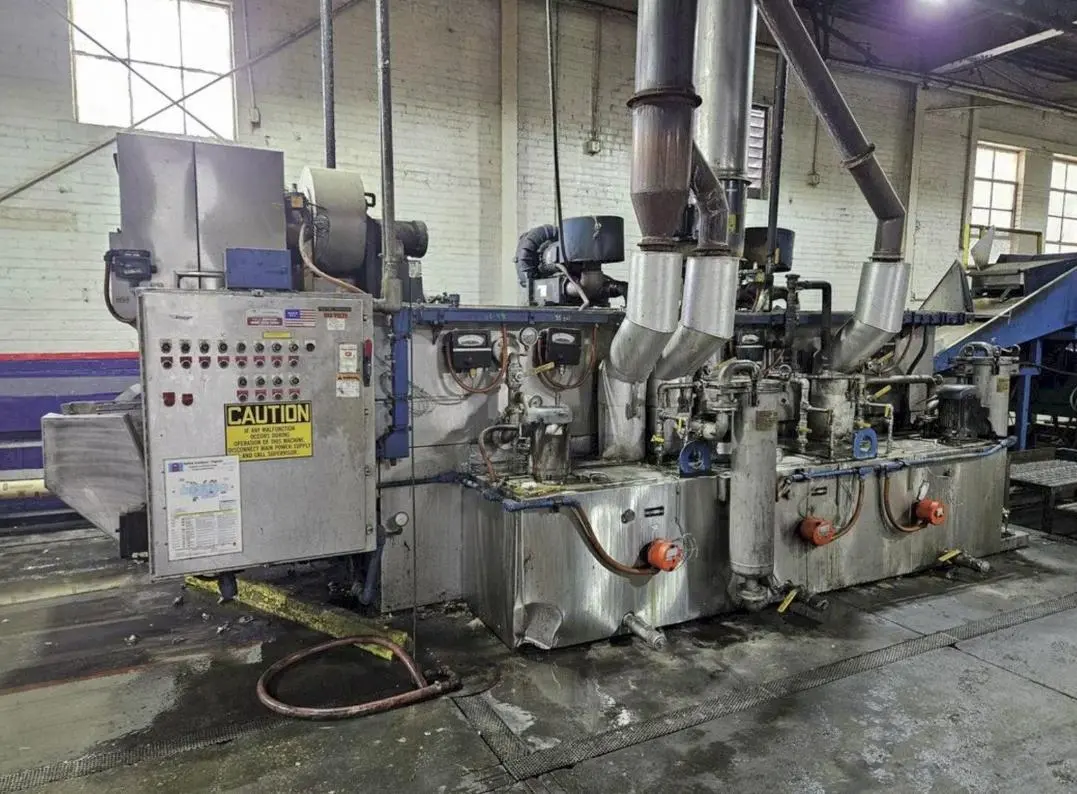

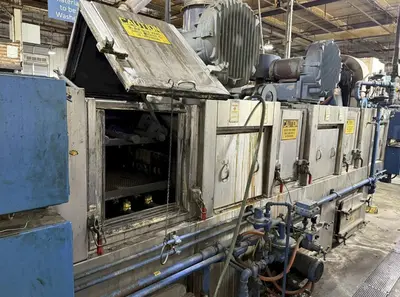

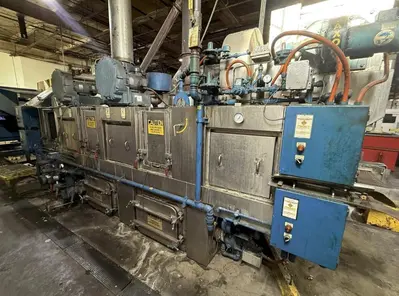

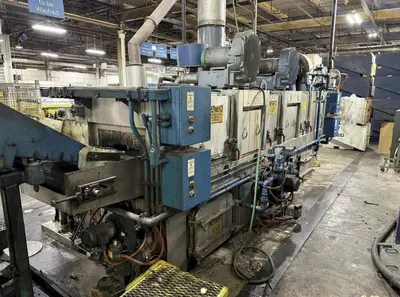

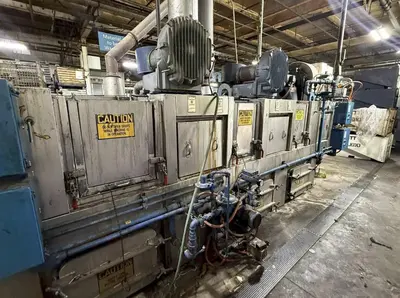

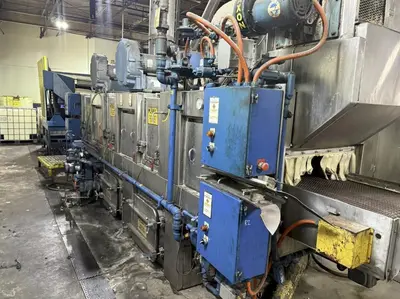

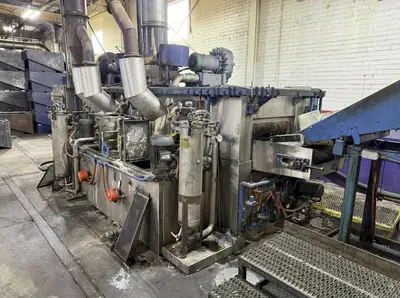

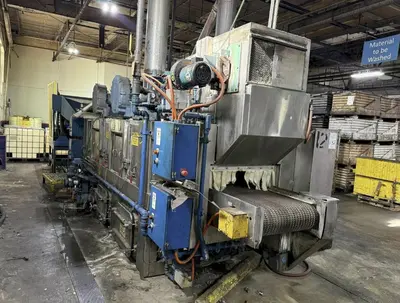

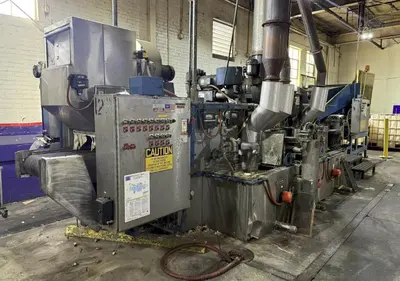

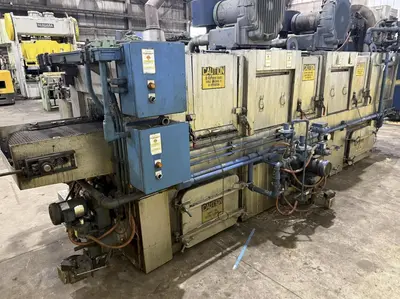

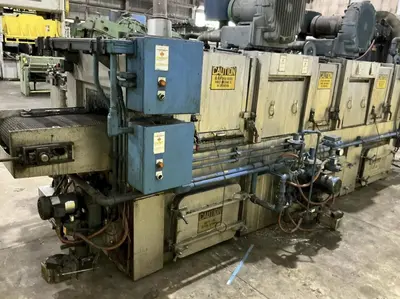

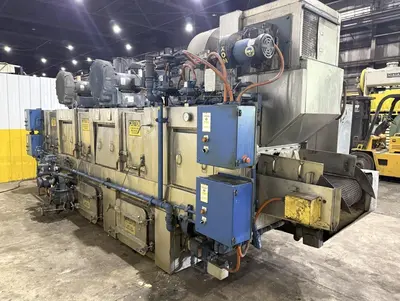

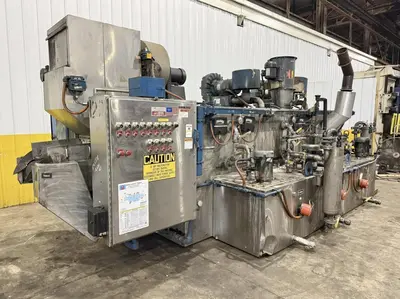

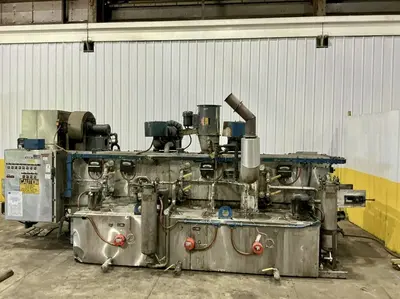

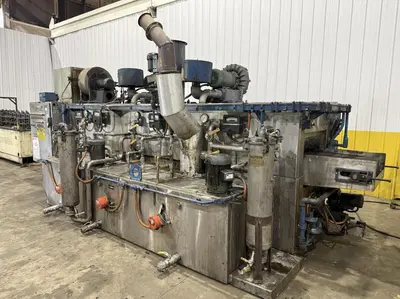

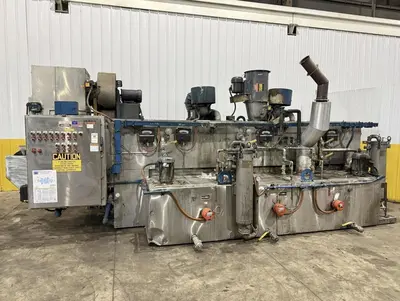

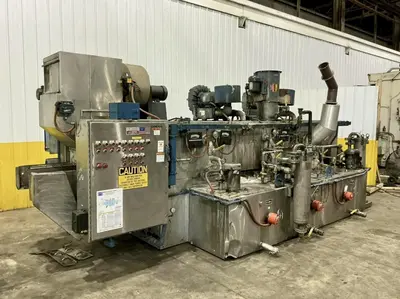

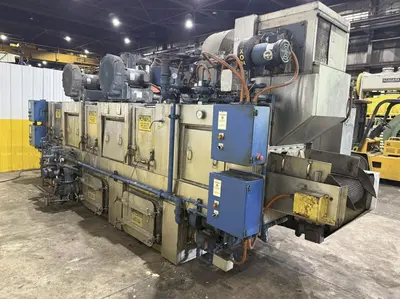

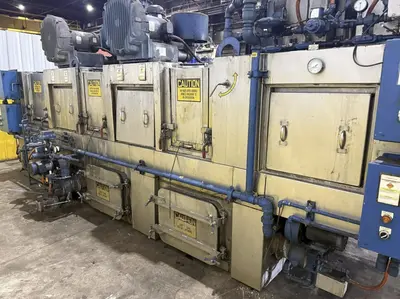

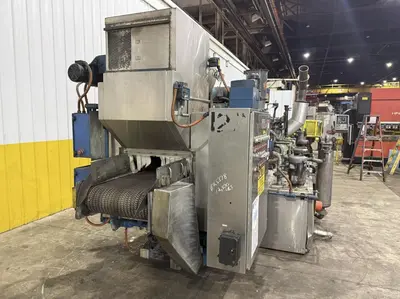

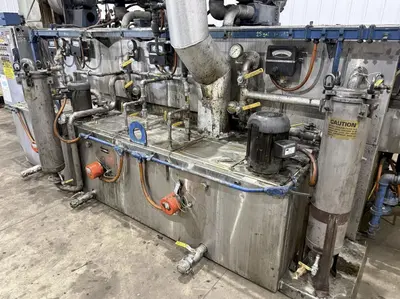

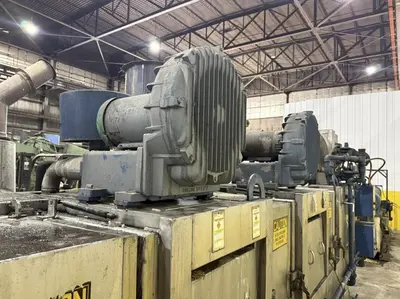

USED 1997 CAE RANSOHOFF SURECLEAN 24 WIDE BELT

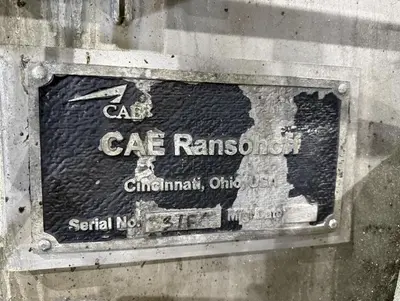

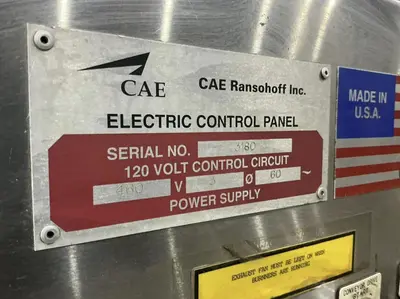

Mfg: Ransohoff (CAE)

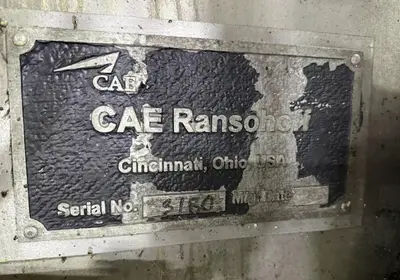

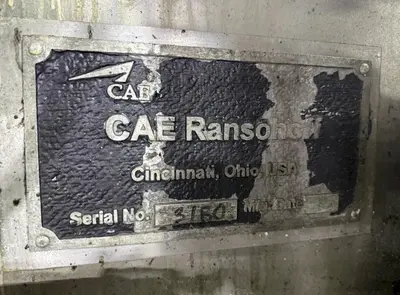

SERIAL: 3180
Year: 1997
STAINLESS STEEL CONSTRUCTION
MODEL: SURECLEAN 24" WIDE BELT
WASH, RINSE, RUST INHIBITOR, BLOW OFF

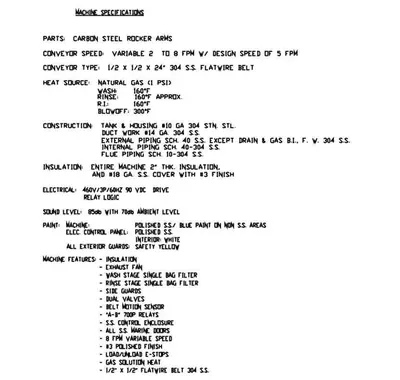

Process & Thermal Parameters:
Heat Source: Natural Gas (< 1 PSI)
Wash Stage Temperature:160°F
Rinse Stage Temperature :160°F Approx.
R.I. Temperature: 160°F
Blowoff Temperature: 300°F
Structural & Materials Construction
Tank & Housing: #10 GA 304 Stn. Stl.
Duct Work: #14 GA 304 S.S.
External Piping: Sch. 40 S.S. except Drain & Gas B.I., F. W. 304 S.S.
Internal Piping: Sch. 40-304 S.S.
Flue Piping: Sch. 10-304 S.S.
Insulation: Entire machine 2" Thk. Insulation and #18 GA S.S. Cover with #3 Finish

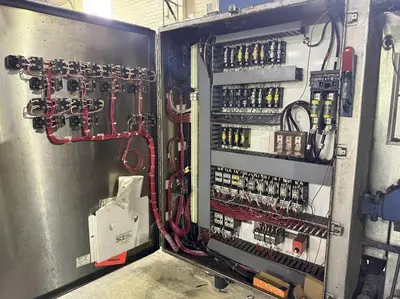

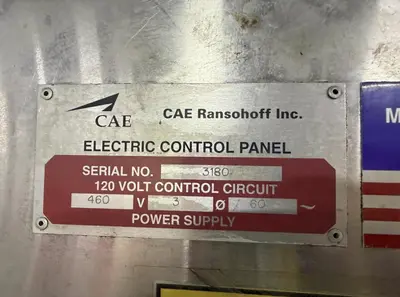

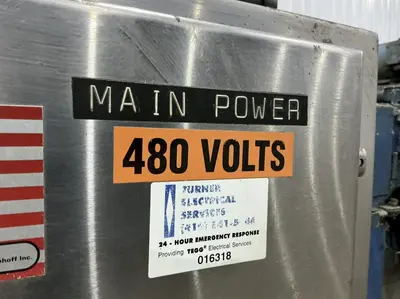

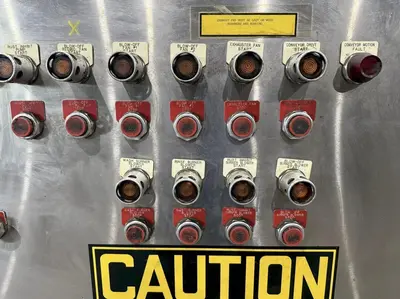

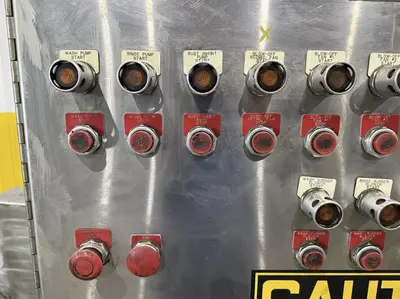

Electrical System, Enviromental & Finish: 460V / 3P / 60Hz, 90 VDC Drive, Relay Logic
Sound Level: 85db with 70db Ambient Level
Paint (Machine): Polished S.S. / Blue Paint on non-S.S. areas

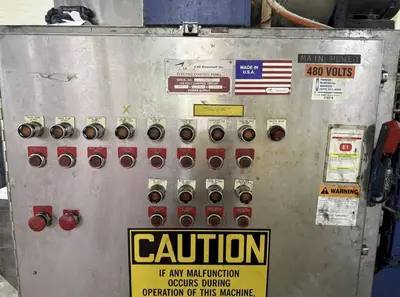

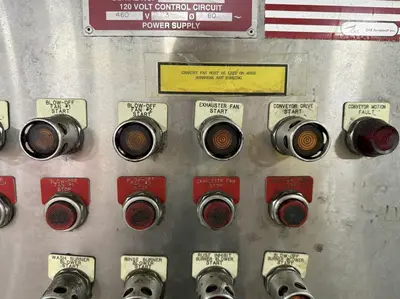

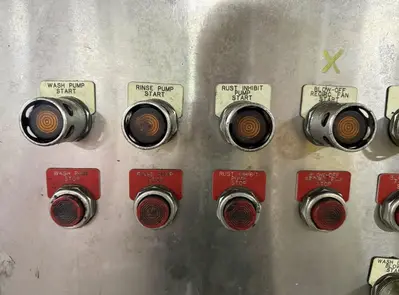

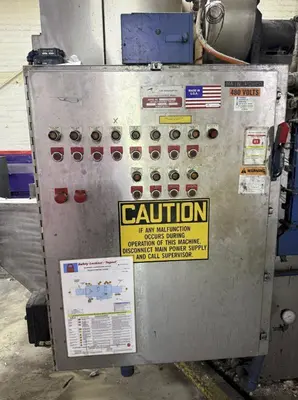

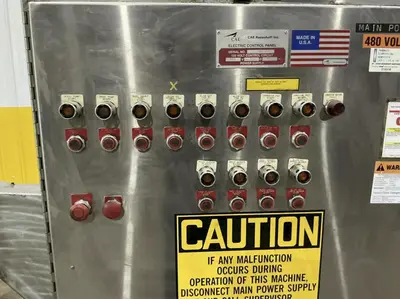

Paint (Elec. Control Panel): Polished S.S. Exterior, White Interior

Standard Machine Features:
- Insulation

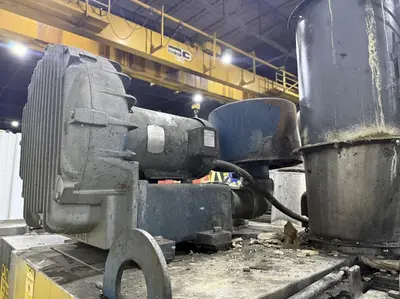

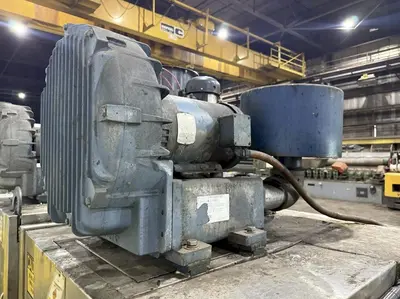

- Exhaust Fan

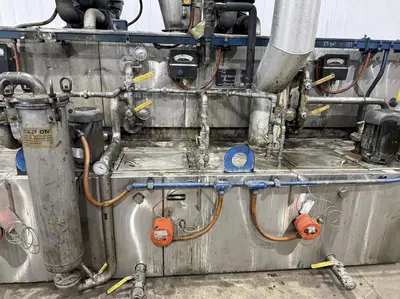

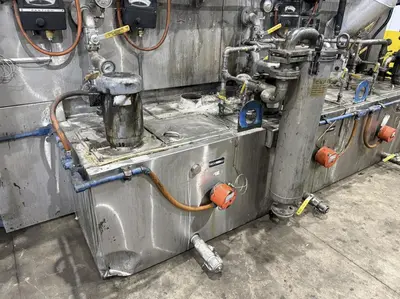

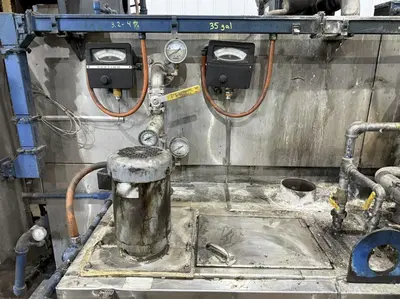

- Wash Stage Single Bag Filter

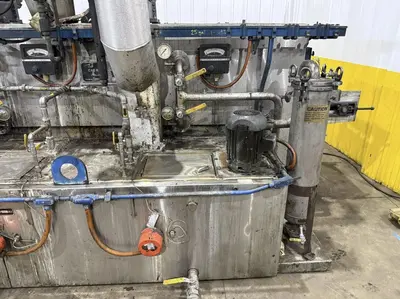

- Rinse Stage Single Bag Filter
- Side Guards
- Dual Valves
- Belt Motion Sensor
- "A-B" 700P Relays

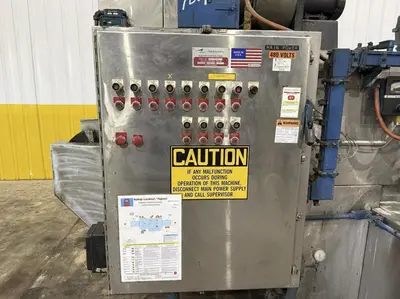

- S.S. Control Enclosure
- All S.S. Marine Doors
- 8 FPM Variable Speed
- #3 Polished Finish
- Load/Unload E-Stops

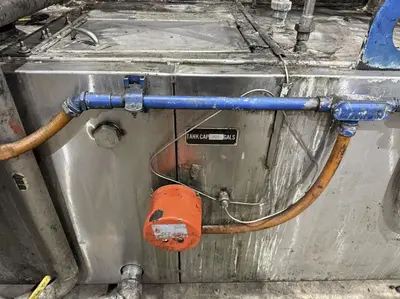

- Gas Solution Heat

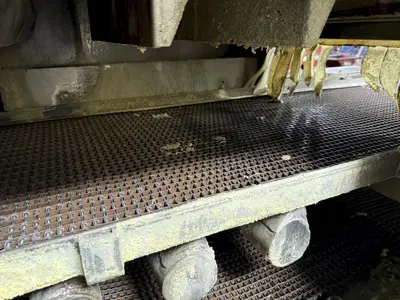

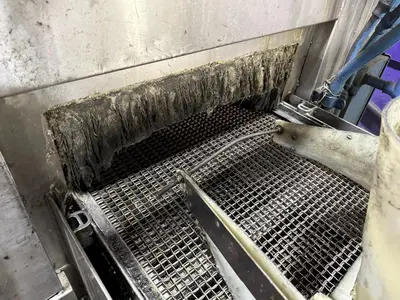

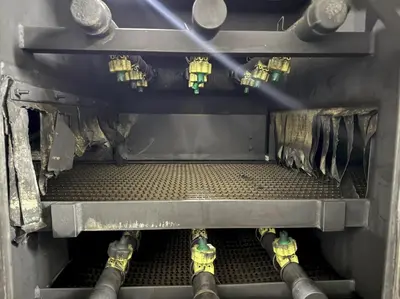

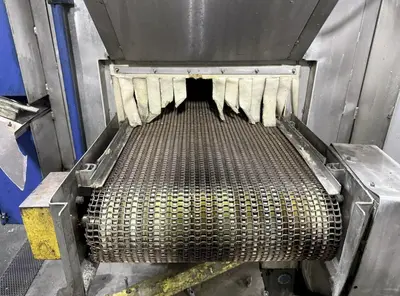

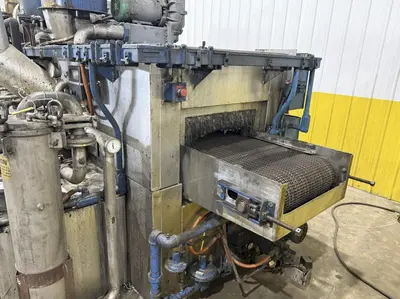

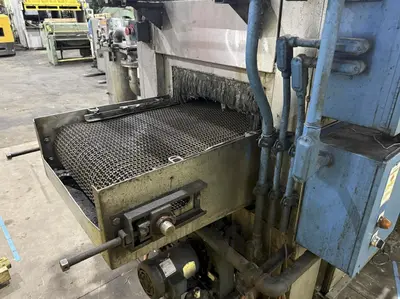

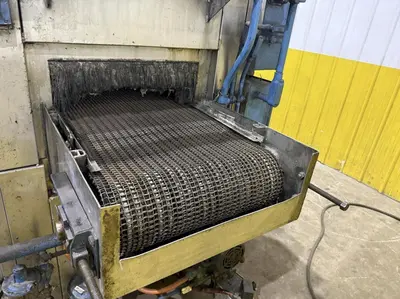

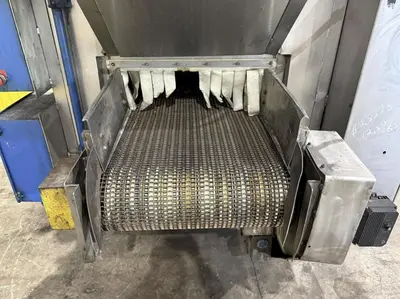

Conveyor Type: 1/2" x 1/2" x 24" Flatwire Belt 304 S.S.
Conveyor Speed: Variable 2 to 8 FPM with a design speed of 5 FPM
