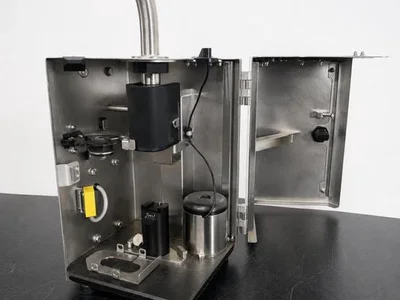

USED ASEPTIC TECHNOLOGIES CRYSTAL M1 FILLING STATION

The Aseptic Technologies Crystal M1 is a compact tabletop aseptic vial filling station designed for small-scale and personalized fill-finish operations in pharmaceutical and biotechnology environments.

The system operates using the proprietary AT-Closed Vial® technology, allowing vials to remain functionally closed throughout the filling process, significantly reducing contamination risks associated with conventional manual filling methods.

The Crystal M1 is commonly installed inside a biosafety cabinet (BSC), isolator, or RABS environment and is widely used for cell & gene therapies, biologics, ATMPs, clinical trials, and R&D production.
---------------------------------------------------------------

Key Highlights

- Compact tabletop aseptic filling system
- Uses AT-Closed Vial® technology for contamination control
- Designed for small and personalized batches
- Filling range from 0.1 mL to 50 mL
- Up to 150–200 vials/hour depending on configuration and operators
- Integrated laser resealing technology
- Single-use product-contact components
- Easy validation and rapid deployment
- Toolless format changeover
- Suitable for GMP and cleanroom environments
---------------------------------------------------------------

Applications / Uses

- Cell & gene therapy production
- Clinical trial batch filling
- Biologics and vaccine filling
- Personalized medicine manufacturing
- R&D and process development
- Small-batch cGMP production
---------------------------------------------------------------

Typical Specifications (Summary)

(may vary depending on configuration)

- System Type: Manual aseptic vial filling station
- Filling Volume Range: 0.1 – 50 mL
- Throughput: ~150–200 vials/hour
- Container Type: AT-Closed Vial®
- Operation: Manual / semi-manual
- Pump Type: Peristaltic dispensing system
- Closure Method: Laser resealing + snap-fit cap
- Installation Environment: BSC / Isolator / RABS
- Utilities: Standard electrical supply only
- Compliance: cGMP-oriented design
---------------------------------------------------------------

Typical Configuration Includes

- Crystal M1 filling station
- Filling tool and dosing system
- Laser resealing unit
- Capping tool
- Precision balance
- Peristaltic pump (optional depending package)
- Control interface and accessories
