| Rect-Cap (H) | 10" | 254 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 204" | 5,181.6 mm |
| Control | CNC | CNC |
| Dimensions | 101 (L-R) x 156 (F-B) x 56 (H) | 101 (L-R) x 156 (F-B) x 56 (H) |
| Weight | 7500 Lbs | 7500 Lbs |

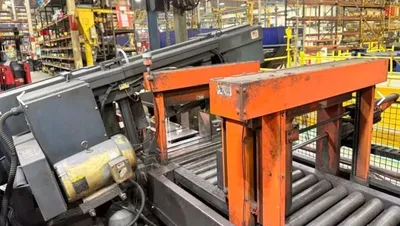

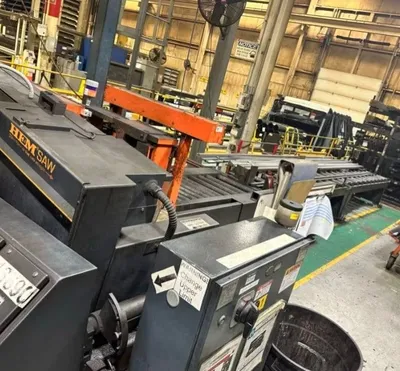

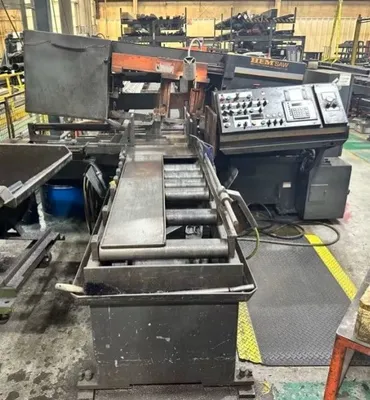

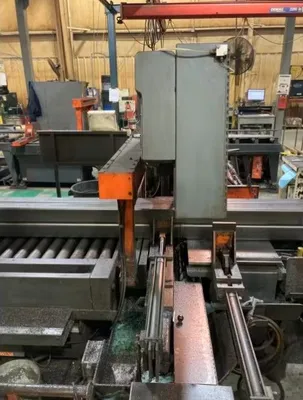

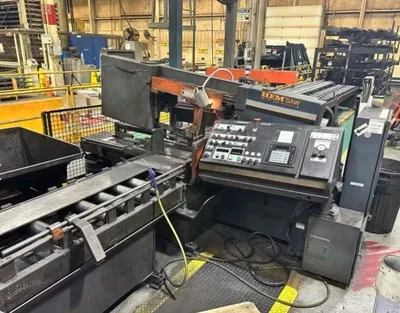

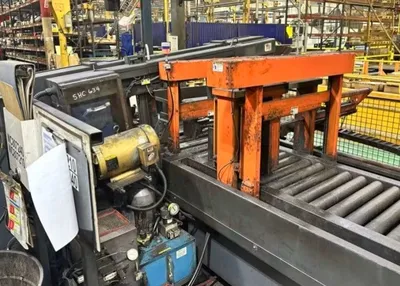

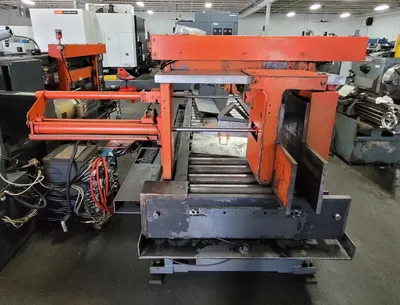

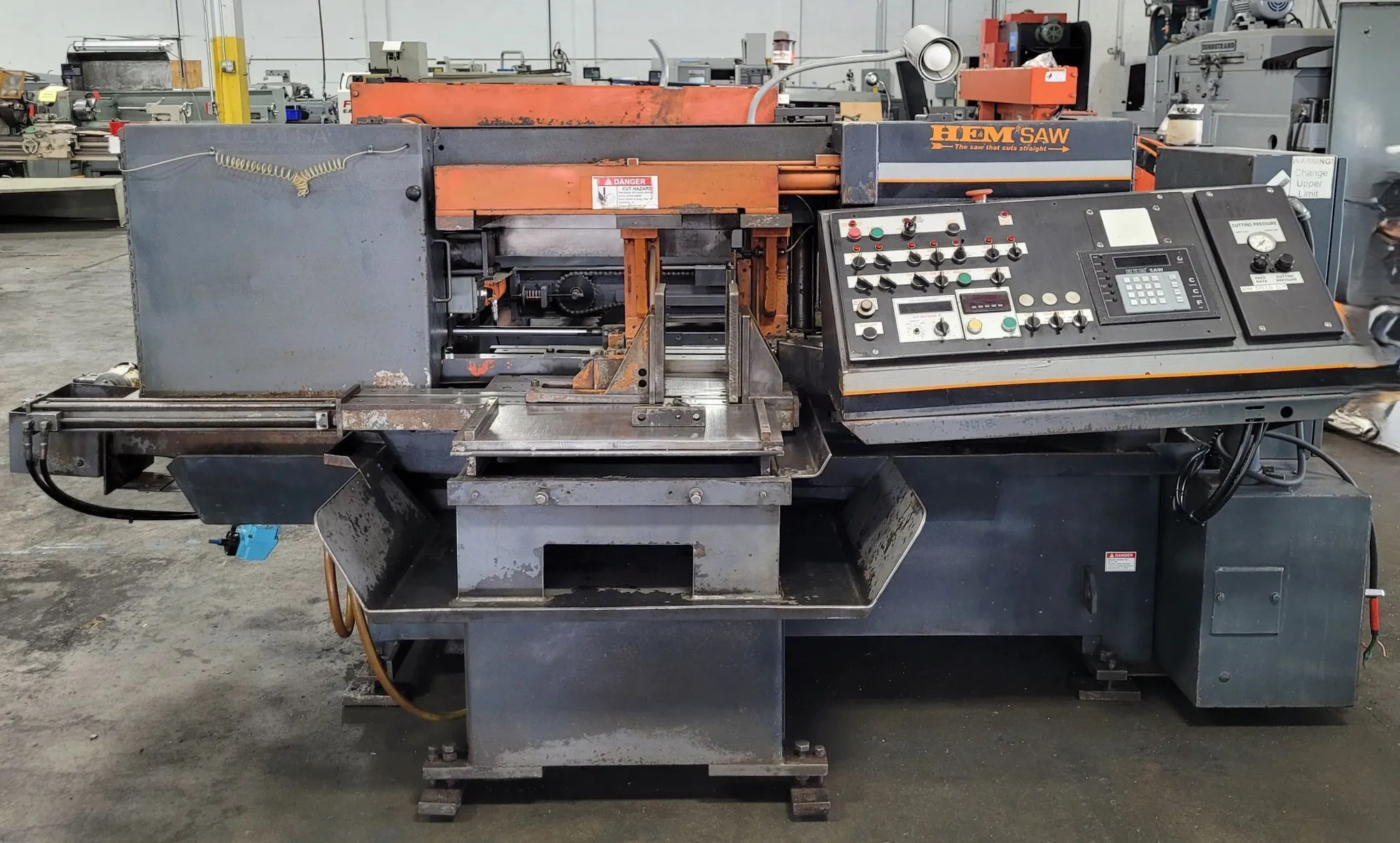

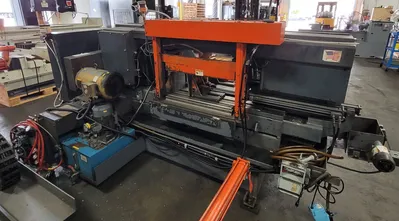

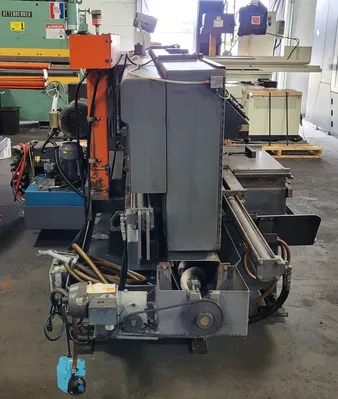

2014 HEM Model H 130 HA-C Automatic Horizontal Bandsaw
Brand: HEM
Bandsaw Year: 2014
Model: H 130 HA-C
Automatic: Yes
Capacities:
Round: 16″
Square: 16″
Rectangle: 20″(W) x 10″(H)
Blade: 1-1/2″ x 17′ x 0.050″
Blade Speed: Variable, 72-400 SFPM
Multi-Index Variable Feed: 0 – 24″
Motor: 10 HP

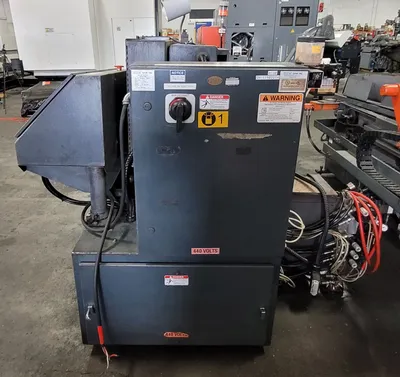

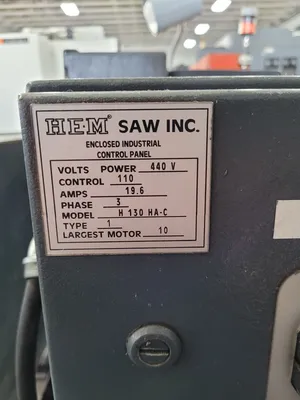

Electrics: 440V/3Ph/60Hz
Dimensions/Catalog: 101″(L-R) x 156″(F-B) x 56″(H)
Weight: Approximately 7,500 Lbs.
Standard Features:

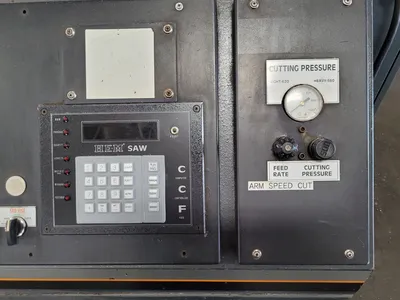

Computer Controlled Feed System and Cutting Force Traverse
Powered blade tension and heavy-duty powered guide arm
Full stroking vises with adjustable clamping force
Built-in flood coolant system

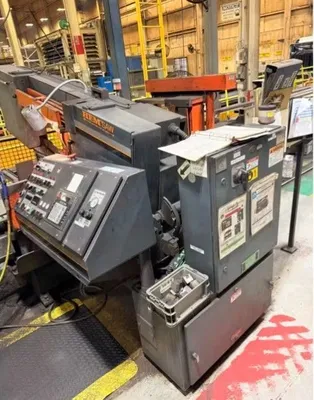

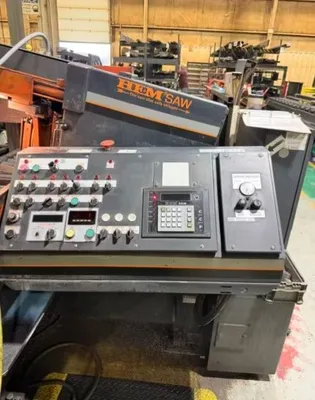

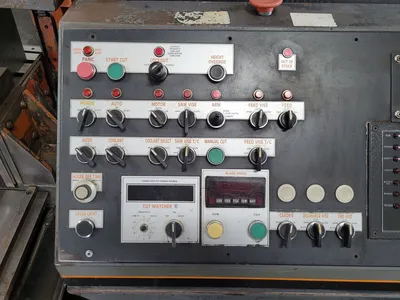

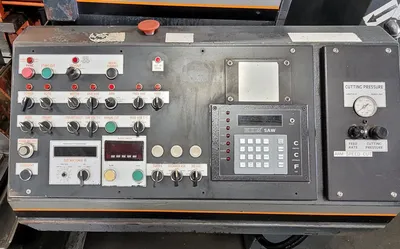

Swing-away operator console
Hydraulic Clamping,
3rd Vise on Feed,

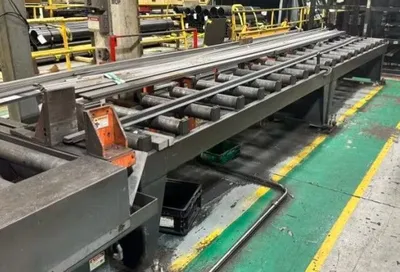

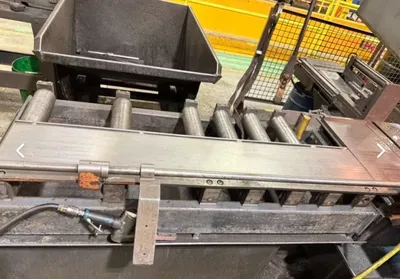

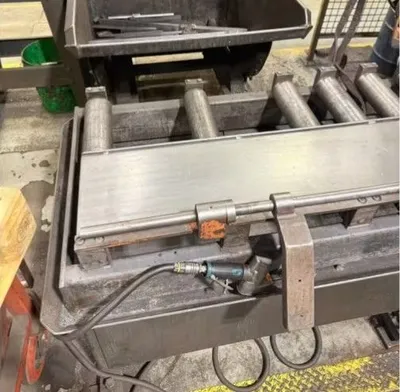

Power In-Feed Conveyor,

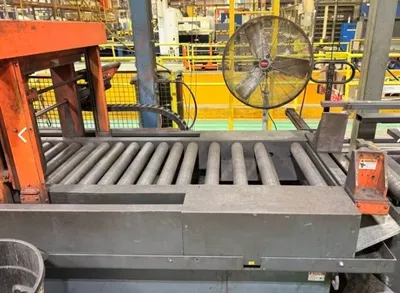

Exit Conveyor,
Material Jogging,
2-HP Hydraulic Motor,
Over $9,000 in New Spare Parts Including:
(3) Encoders, Idler Wheel, Adjustable Guide Arm Assembly, (2) Keypad Retrofits
Specifications Subject to Verification
