USED ROSS INDUSTRIES CDA-300

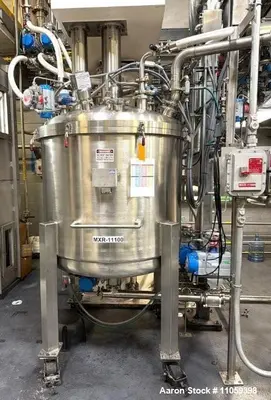

Used ROSS CDA-300 Dual Shaft Vacuum Mixer with High Shear Disperser and Sweep Agitator 300 Gallon Jacketed Mixing System. 300 Gallon. Unit equipped with Portable Jacketed Tank rated 2 PSI / Full Vacuum @ 300 Deg.F. Jackets rated 50 PSI @ 300 Deg.F.. Approx. 11'1" Overall height. Explosion Proof Motors (XP). (1) 20 HP, 1775 RPM, 208-230/460 volt. (1) 30 HP, 1775 RPM, 208-230/460 volt.

Used Equipment Facts About This Machine
Manufacturer Information

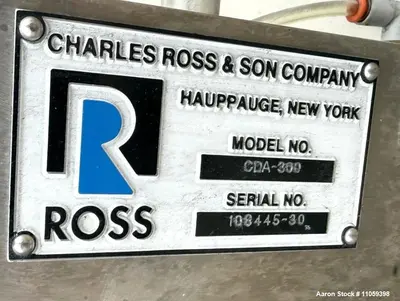

Manufacturer: Charles Ross & Son Company
Model: CDA-300
Equipment Type: Dual Shaft Vacuum Mixer
Capacity: 300 Gallons

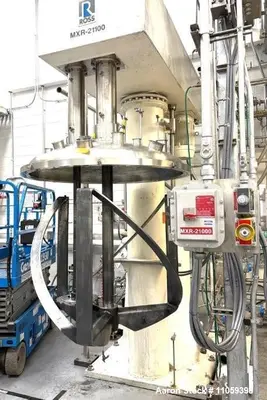

Mixing Configuration: Anchor Sweep Agitator & High Shear Disperser
Condition: Used

Description
Available for sale is a used ROSS Model CDA-300 Dual Shaft Vacuum Mixer, engineered for demanding mixing, dispersing, homogenizing, and vacuum processing applications. This versatile system combines a high-speed disperser with a low-speed sweep agitator, providing excellent product turnover, efficient heat transfer, and superior mixing performance across a wide range of viscosities.
The mixer is supplied with a portable 300-gallon jacketed mixing vessel rated for full vacuum operation at 300°F and equipped with a heating/cooling jacket rated for 50 PSI at 300°F. The dual-shaft design allows simultaneous macro-mixing and high-shear dispersion, making it ideal for products requiring powder incorporation, pigment dispersion, emulsification, and vacuum deaeration.
Powered by explosion-proof motors, including a 30 HP high shear disperser drive and a 20 HP sweep agitator drive, this system is suitable for hazardous and solvent-based processing environments commonly found in chemical, coatings, adhesives, cosmetic, pharmaceutical, and specialty materials manufacturing facilities.

Specifications
General Information

Manufacturer: Charles Ross & Son Company
Model: CDA-300
Equipment Type: Dual Shaft Vacuum Mixer
Capacity: 300 Gallons
Condition: Used

Vessel Specifications
Tank Capacity

300 Gallons

Vessel Type

Portable Jacketed Mixing Vessel

Vessel Rating

Full Vacuum @ 300°F
Internal Pressure Rating: 2 PSI @ 300°F

Jacket Rating

50 PSI @ 300°F

Mixing System
Primary Mixer

High Shear Disperser

Secondary Mixer

Sweep Agitator / Anchor Agitator

Mixing Functions

High Shear Dispersion
Product Homogenization
Powder Incorporation
Vacuum Mixing
Emulsification
Deaeration
Heat Transfer Enhancement

Drive System
Sweep Agitator Motor

20 HP
1,775 RPM
Explosion Proof (XP)

High Shear Disperser Motor

30 HP
1,775 RPM
Explosion Proof (XP)

Electrical Requirements

Voltage: 208-230/460 Volt
Phase: 3 Phase
Frequency: 60 Hertz

Dimensions
Overall Height

Approximately 11 Feet 1 Inch

Safety Features

Explosion Proof Motors
Vacuum Rated Vessel
Pressure Rated Jacket
Industrial Processing Design

Applications

Adhesive manufacturing
Sealant production
Paint manufacturing
Coatings production
Cosmetic processing
Personal care products
Pharmaceutical formulations
Specialty chemical production
Polymer blending
Resin processing
Ink manufacturing
High-viscosity product mixing

Products This Equipment Would Be Used For

Adhesives
Sealants
Epoxies
Paints
Coatings
Inks
Cosmetic creams
Lotions
Gels
Resins
Specialty chemicals
Pharmaceutical suspensions

Frequently Asked Questions

What is the capacity of the ROSS CDA-300?
The mixer is equipped with a 300-gallon jacketed mixing vessel.

What type of mixing system does this unit use?
The system utilizes a dual-shaft design consisting of a high shear disperser and a sweep agitator.

What is the advantage of a dual-shaft mixer?
Dual-shaft mixers provide simultaneous high-shear dispersion and low-speed bulk movement for faster, more uniform mixing.

Is the vessel rated for vacuum operation?
Yes, the tank is rated for full vacuum service at temperatures up to 300°F.

What is the jacket pressure rating?
The vessel jacket is rated for 50 PSI at 300°F.

What motors are installed?
The system includes a 20 HP sweep agitator motor and a 30 HP high shear disperser motor.

Are the motors explosion proof?
Yes, both motors are explosion-proof (XP) rated.

What products are commonly processed in this type of mixer?
Adhesives, coatings, sealants, cosmetics, pharmaceuticals, inks, resins, and specialty chemicals are frequently processed in dual-shaft vacuum mixers.

Why is vacuum mixing beneficial?
Vacuum processing removes entrapped air, improves product consistency, enhances dispersion, and reduces foam formation.

What industries commonly use ROSS dual-shaft mixers?
Chemical, coatings, adhesives, pharmaceutical, cosmetic, personal care, and specialty materials manufacturers commonly utilize these systems.

Can Aaron Equipment assist with shipping and logistics?
Yes, Aaron Equipment can coordinate inspections, rigging, loading, transportation, export documentation, and worldwide logistics services.

Does Aaron Equipment buy and sell used ROSS mixers and process equipment?
Yes, Aaron Equipment actively purchases and sells used mixers, dispersers, reactors, tanks, blenders, process systems, and complete manufacturing facilities worldwide.
