USED SMITHCO ENGINEERING 1 F 30-111

Manufacturer Information

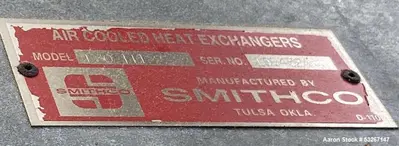

Manufacturer: Smithco Manufacturing
Model: 1F30-111-2
Serial Number: 108432-B
Equipment Type: Multi-Bundle Fin-Fan Cooler / Air-Cooled Heat Exchanger
Configuration: Four (4) Process Bundles
Year Built: 2010
Construction: Galvanized Steel Structure with 304 Stainless Steel Tubes
Condition: Used

Description
Available for sale is a used Smithco Model 1F30-111-2 Four-Bundle Fin-Fan Cooler Package, designed for heavy-duty natural gas and lube oil cooling applications in upstream, midstream, petrochemical, refinery, power generation, and industrial processing facilities.

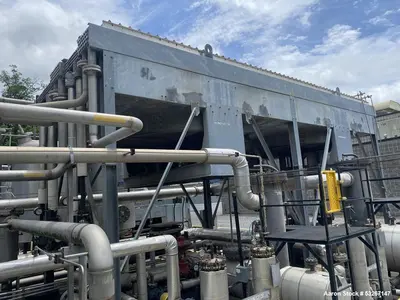

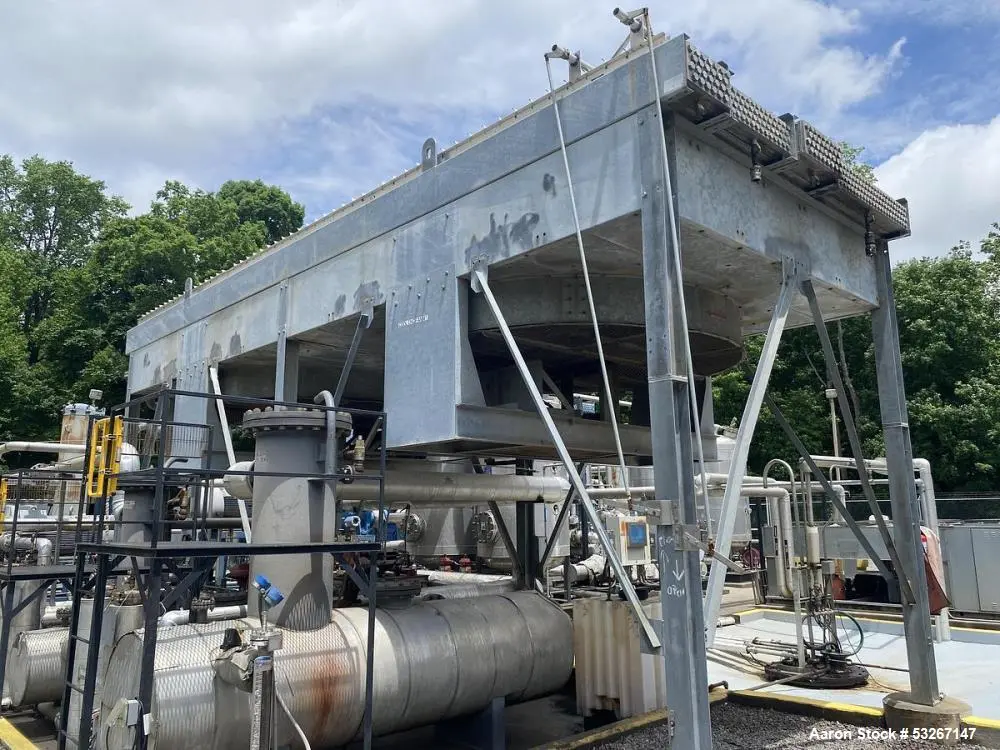

This air-cooled heat exchanger system incorporates four independent cooling bundles, consisting of two lube oil coolers and two natural gas coolers, mounted within a galvanized structural frame. Heat rejection is accomplished through two large 10-foot diameter COFIMCO axial flow fans, delivering approximately 122,800 ACFM of airflow.
Each bundle features 304 stainless steel tubes with L-tension aluminum fins, providing excellent heat transfer performance while maintaining corrosion resistance and durability. The system offers substantial cooling surface area and is rated for operating temperatures from -20°F to 350°F.
With an overall footprint of approximately 31.5 feet long x 11.1 feet wide x 12.67 feet high and a shipping weight of approximately 22,800 pounds, this package is ideal for gas compression stations, natural gas processing facilities, turbine lubrication systems, compressor cooling applications, and industrial utility operations.

Specifications
General Information

Manufacturer: Smithco Manufacturing
Model: 1F30-111-2
Serial Number: 108432-B
Equipment Type: Fin-Fan Cooler Package
Configuration: Four Bundle Air-Cooled Heat Exchanger
Year Built: 2010
Condition: Used

Overall Dimensions

Length: 31.5 Feet
Width: 11.1 Feet
Height: 12.67 Feet

Weight

Approximate Weight: 22,800 Pounds

Bundle Configuration
Lube Oil Cooler #1
Connections

3" 300# Inlet
3" 300# Outlet

Tubes

Quantity: 98
Tube Size: 1"
Material: 304 Stainless Steel
Length: 30 Feet
Configuration: 4 Rows, 2-Pass

Fins

Type: L-Tension Aluminum

Rating

330 PSIG
-20°F to 350°F

Surface Area

Bare Surface Area: 770.3 Sq. Ft.
Extended Surface Area: 16,310 Sq. Ft.

Natural Gas Cooler CLR-1
Connections

6" 300# Inlet
6" 300# Outlet

Tubes

Quantity: 34
Tube Size: 1.25"
Material: 304 Stainless Steel
Length: 30 Feet
Configuration: 4 Rows, 2-Pass

Fins

Type: L-Tension Aluminum

Rating

300 PSIG
-20°F to 350°F

Surface Area

Bare Surface Area: 334 Sq. Ft.
Extended Surface Area: 6,542 Sq. Ft.

Lube Oil Cooler #2
Connections

2" 300# Inlet
2" 300# Outlet

Tubes

Quantity: 54
Tube Size: 1"
Material: 304 Stainless Steel
Length: 30 Feet
Configuration: 4 Rows, 2-Pass

Fins

Type: L-Tension Aluminum

Rating

450 PSIG
-20°F to 350°F

Surface Area

Bare Surface Area: 424.4 Sq. Ft.
Extended Surface Area: 8,986 Sq. Ft.

Natural Gas Cooler CLR-2
Connections

4" 300# Inlet
4" 300# Outlet

Tubes

Quantity: 26
Tube Size: 1.25"
Material: 304 Stainless Steel
Length: 30 Feet
Configuration: 4 Rows, 2-Pass

Fins

Type: L-Tension Aluminum

Rating

-20°F to 350°F

Surface Area

Bare Surface Area: 255.4 Sq. Ft.
Extended Surface Area: 5,003 Sq. Ft.

Fan System
Axial Flow Fans
Quantity

Two (2)

Manufacturer

COFIMCO

Model

49 5000

Diameter

10 Feet

Blade Configuration

Five (5) Aluminum Blades Per Fan

Blade Pitch

Adjustable Pitch
10° Blade Angle

Motor Size

20 HP Each

Electrical Requirements

460 Volt
3 Phase
60 Hertz

Drive Type

Belt Driven Speed Reducer

Airflow Capacity

122,800 ACFM

Construction Features

Galvanized Structural Framework
304 Stainless Steel Tube Construction
Aluminum L-Tension Fins
Multi-Service Cooling Package
Air-Cooled Design
Industrial Outdoor Service Configuration

Applications

Natural gas cooling
Compressor station cooling
Lube oil cooling
Gas transmission systems
Midstream processing
Petrochemical facilities
Refinery operations
Power generation plants
Turbine lubrication systems
Pipeline operations
Industrial utility systems
Process cooling applications

Products This Equipment Would Be Used For

Natural gas
Compressor discharge gas
Lube oil
Turbine oil
Hydraulic oil
Process fluids
Petrochemical streams
Hydrocarbon gases
Utility fluids
Industrial lubricants
Process cooling circuits
Energy production systems

Frequently Asked Questions

What type of equipment is this?
This is a four-bundle air-cooled fin-fan heat exchanger package designed for natural gas and lube oil cooling applications.

How many cooling bundles are included?
The unit contains four bundles consisting of two lube oil coolers and two natural gas coolers.

What material are the tubes constructed from?
All process tubes are fabricated from 304 stainless steel.

What type of fins are installed?
The bundles utilize L-tension aluminum fins for enhanced heat transfer efficiency.

How many fans are included?
The package includes two 10-foot diameter COFIMCO axial flow fans.

What is the airflow capacity?
The system is rated for approximately 122,800 ACFM.

What temperature range is the cooler designed for?
The bundles are rated for operation from -20°F to 350°F.

What are the pressure ratings of the bundles?
Depending on the bundle, pressure ratings range from 300 PSIG to 450 PSIG.

What industries commonly use fin-fan coolers?
Natural gas processing, pipeline transmission, petrochemical plants, refineries, compressor stations, and power generation facilities commonly utilize fin-fan cooling systems.

What are the advantages of air-cooled heat exchangers?
Air-cooled systems eliminate cooling water requirements, reduce operating costs, minimize environmental impact, and simplify installation.
