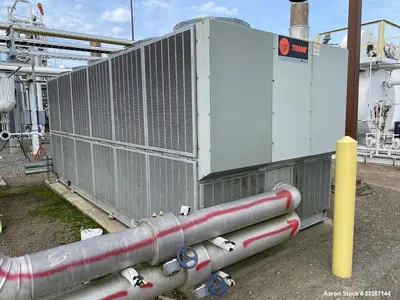

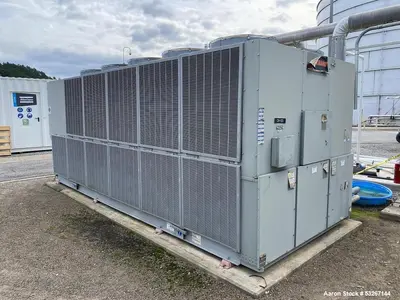

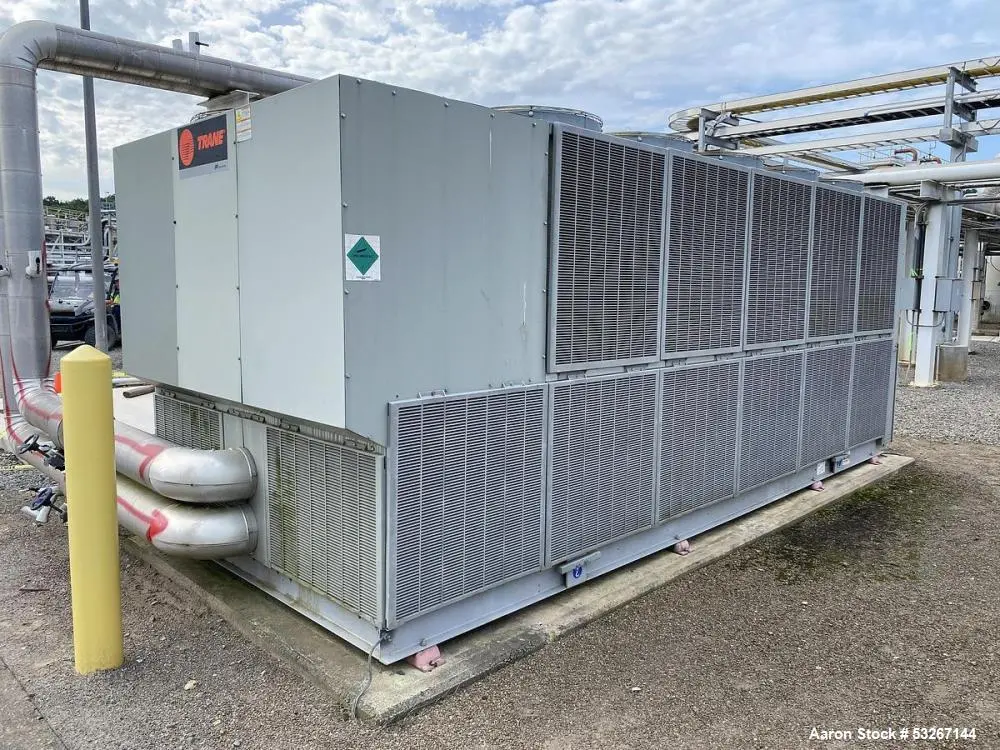

Used Trane RTAC 185 Ton Air-Cooled Chiller Dual Compressor Industrial Cooling System. Model RTAC 1854 U1GN UAFN L1TX 2TDN NN5U N10A R0EX N. Rated voltage 3/60/460. Unit has 2 compressors. 11 fans 3/60/460 1.5 HP each. Two fans are VFD controlled. Factory charged with R134A and OIL48. Ckt1 215 lbs, 1.9 gallon, Ckt2 210 lbs, 1.3 gallon. High side 350 low side 200. DIMS: 19'-6" long X 90.5" wide X 8' tall. Weight 13,000#. Serial# U19G04350.
Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: Trane
Model: RTAC 1854 U1GN UAFN L1TX 2TDN NN5U N10A R0EX N
Serial Number: U19G04350
Equipment Type: Air-Cooled Chiller
Nominal Capacity: 185 Tons
Refrigerant: R134A
Condition: Used
Description
Available for sale is a used Trane RTAC 185 Ton Air-Cooled Chiller, designed for reliable industrial and commercial process cooling applications. This heavy-duty air-cooled chiller features dual compressor operation, 11 condenser fans, and factory-installed R134A refrigerant, providing dependable cooling performance for manufacturing facilities, plastics processing plants, chemical operations, HVAC systems, and industrial process applications.
The unit is configured with two independent refrigeration circuits, enhancing reliability and operational flexibility. Eleven condenser fans provide efficient heat rejection, with two fans equipped with variable frequency drives (VFDs) to improve energy efficiency and optimize condenser performance under varying ambient conditions.
With a footprint measuring approximately 19 feet 6 inches long by 90.5 inches wide by 8 feet high and an operating weight of approximately 13,000 pounds, this Trane RTAC chiller offers substantial cooling capacity while maintaining the installation advantages of an air-cooled system.
Specifications
General Information
Manufacturer: Trane
Model: RTAC 1854 U1GN UAFN L1TX 2TDN NN5U N10A R0EX N
Serial Number: U19G04350
Equipment Type: Air-Cooled Chiller
Condition: Used
Cooling Capacity
Nominal Capacity: 185 Tons
Electrical Requirements
Voltage: 460 Volt
Phase: 3 Phase
Frequency: 60 Hertz
Compressor System
Compressors
Quantity: 2
Independent Refrigeration Circuits
Industrial Duty Design
Condenser Fan System
Total Fans
11 Condenser Fans
Fan Motors
1.5 HP Each
460 Volt
3 Phase
60 Hertz
Variable Frequency Drives
2 Fans Equipped with VFD Controls
Refrigeration System
Refrigerant
R134A
Compressor Oil
OIL48
Refrigerant Charge
Circuit 1
Refrigerant Charge: 215 lbs
Oil Charge: 1.9 Gallons
Circuit 2
Refrigerant Charge: 210 lbs
Oil Charge: 1.3 Gallons
Pressure Ratings
High Side
350 PSI
Low Side
200 PSI
Dimensions
Length: Approximately 19 Feet 6 Inches
Width: Approximately 90.5 Inches
Height: Approximately 8 Feet
Weight
Approximate Weight: 13,000 Pounds
Applications
Industrial process cooling
Plastics manufacturing
Injection molding facilities
Extrusion operations
Chemical processing
Pharmaceutical manufacturing
Food processing
Beverage production
HVAC cooling systems
Data center cooling
Manufacturing plant cooling
Central utility cooling systems
Products This Equipment Would Be Used For
Process water
Chilled water systems
Plastic molding equipment
Extrusion cooling loops
Chemical processing systems
Pharmaceutical production lines
Food manufacturing processes
Beverage processing equipment
HVAC systems
Industrial machinery cooling
Utility cooling systems
Facility temperature control
Frequently Asked Questions
What is the cooling capacity of this Trane chiller?
The unit is rated for approximately 185 tons of cooling capacity.
How many compressors are installed?
The chiller is equipped with two compressors operating on independent refrigeration circuits.
What refrigerant does the unit use?
The system is factory charged with R134A refrigerant.
How many condenser fans are installed?
The unit utilizes 11 condenser fans.
Do any fans utilize variable frequency drives?
Yes, two condenser fans are equipped with VFD controls for improved energy efficiency.
What voltage is required for operation?
The chiller operates on 460 Volt, 3 Phase, 60 Hertz electrical service.
What is the refrigerant charge for each circuit?
Circuit 1 contains approximately 215 pounds of refrigerant, while Circuit 2 contains approximately 210 pounds.
What are the physical dimensions of the chiller?
The unit measures approximately 19'-6" long, 90.5" wide, and 8' high.
What industries commonly use air-cooled chillers?
Plastics processing, manufacturing, chemical processing, food production, pharmaceuticals, HVAC systems, and industrial facilities commonly utilize air-cooled chillers.
What are the benefits of an air-cooled chiller?
Air-cooled chillers eliminate the need for cooling towers, reduce water usage, simplify installation, and lower maintenance requirements.
Can Aaron Equipment assist with shipping and logistics?
Yes, Aaron Equipment can coordinate inspections, rigging, loading, transportation, export documentation, and worldwide logistics services.
Does Aaron Equipment buy and sell used chillers and utility equipment?
Yes, Aaron Equipment actively purchases and sells used chillers, cooling towers, boilers, heat exchangers, HVAC equipment, utility systems, and complete manufacturing facilities worldwide.
