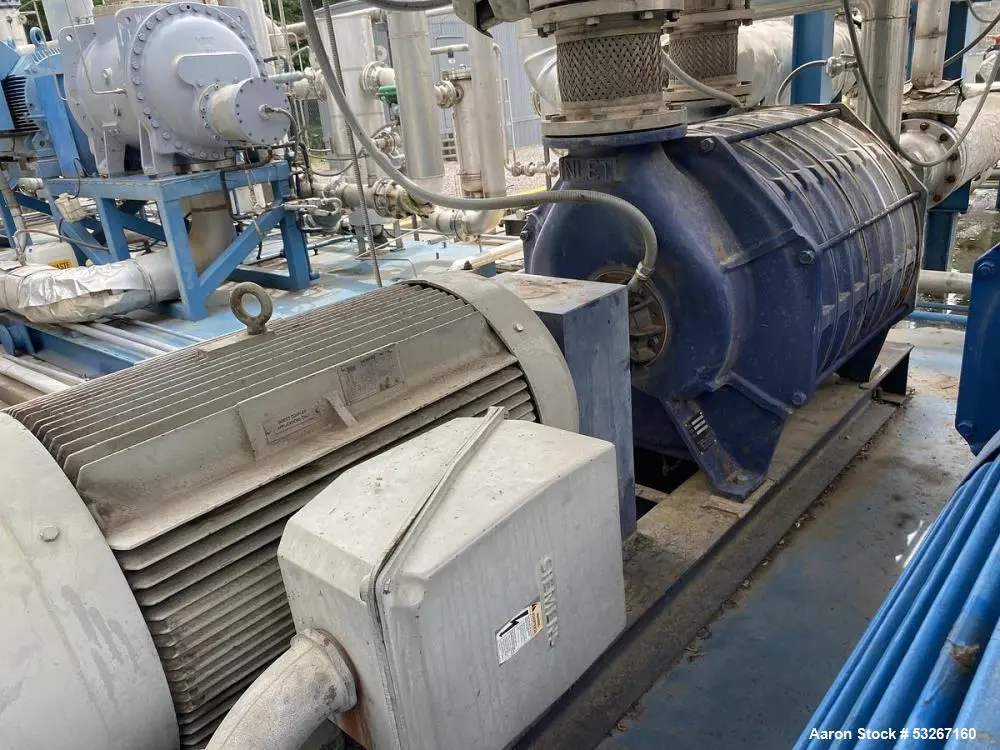

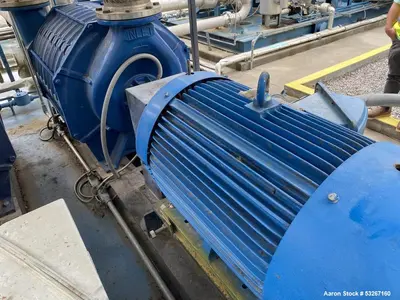

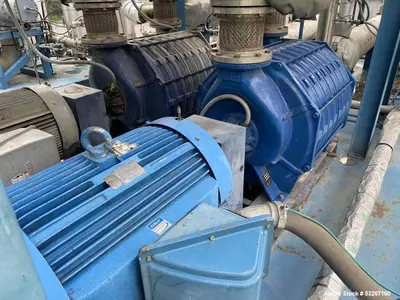

USED HSI NT88408

Manufacturer Information
Manufacturer: HSI (Hoffman & Lamson / HSI Blower Systems)

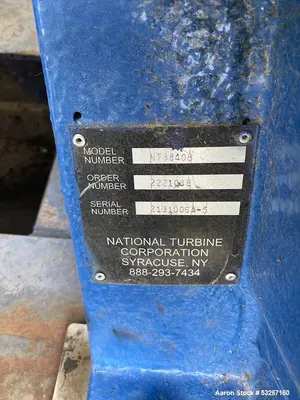

Model: NT88408
Serial Number: 2131006A-5
Equipment Type: Multi-Stage Centrifugal Gas Blower
Configuration: 11-Stage Centrifugal Blower
Condition: Used

Description
Available for sale is a used HSI Model NT88408 11-stage centrifugal gas blower, engineered for high-volume gas handling, process air movement, pneumatic conveying, vapor recovery, aeration, and industrial gas compression applications. This heavy-duty blower package features an eleven-stage centrifugal design that delivers efficient airflow and pressure generation while maintaining reliable continuous-duty operation.
The blower is constructed with a cast iron casing protected by a Heresite P403L corrosion-resistant coating, making it suitable for challenging industrial environments. The rotor assembly incorporates a 4140 carbon steel shaft, labyrinth seals, and a brass deflector for dependable operation and long service life.
The package includes a 300 HP TECO electric motor and is mounted on a substantial 25-foot long skid complete with an HSI 449TS standard motor base. The blower features a 10-inch inlet and 8-inch outlet connection arrangement with a POS.1 vertical discharge orientation.
Built for demanding industrial service, this blower is suitable for wastewater treatment facilities, chemical plants, refineries, pneumatic conveying systems, power generation facilities, and industrial process operations requiring reliable gas movement and pressure generation.

Specifications
General Information

Manufacturer: HSI
Model: NT88408
Serial Number: 2131006A-5
Equipment Type: Multi-Stage Centrifugal Gas Blower
Configuration: 11-Stage
Condition: Used

Blower Construction
Casing Material

Cast Iron

Internal Coating

Heresite P403L Corrosion Resistant Coating

Shaft Material

4140 Carbon Steel

Seal Type

Labyrinth Seals

Additional Components

Brass Deflector

Impeller Configuration
Wheel #1

5011 Cast B.C.

Wheels #2 Through #11

5021 Cast Radial Design

Total Stages

Eleven (11)

Process Connections
Inlet Connection

10 Inch Diameter

Outlet Connection

8 Inch Diameter

Orientation

POS.1 Vertical Configuration

Drive System

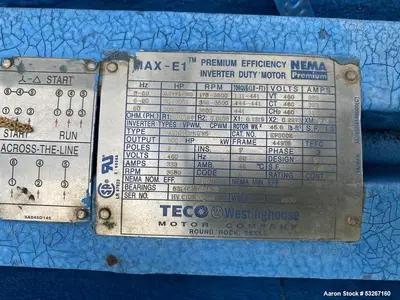

Motor Manufacturer

TECO

Motor Power

300 HP

Electrical Requirements

460 Volt
3 Phase
60 Hertz

Skid Assembly
Skid Length

Approximately 25 Feet

Skid Width

Approximately 130 Inches

Base

HSI Standard 449TS Motor Base

Design Features

Multi-Stage Compression Design
Continuous Duty Operation
Corrosion Resistant Internal Coating
Heavy-Duty Industrial Construction
High-Efficiency Gas Handling
Skid Mounted Package

Applications

Industrial air handling
Process gas movement
Pneumatic conveying
Wastewater aeration
Vapor recovery systems
Chemical processing
Industrial drying systems
Combustion air supply
Gas boosting
Environmental systems
Industrial ventilation
Process air systems

Products This Equipment Would Be Used For

Air
Process gases
Combustion gases
Vapor streams
Industrial exhaust streams
Pneumatic conveying air
Aeration air
Utility gases
Chemical vapors
Process air systems
Environmental control streams
Manufacturing process gases

Frequently Asked Questions

What type of blower is the HSI NT88408?
This is an 11-stage centrifugal gas blower designed for industrial gas handling and air movement applications.

How many stages does the blower have?
The unit utilizes eleven centrifugal stages.

What size motor powers the blower?
The blower is driven by a 300 HP TECO electric motor.

What are the process connection sizes?
The blower features a 10-inch inlet and an 8-inch outlet.

What material is the blower casing made from?
The casing is constructed from cast iron.

What protective coating is installed?
The casing incorporates a Heresite P403L corrosion-resistant coating.

What material is the shaft constructed from?
The shaft is manufactured from 4140 carbon steel.

What type of seals are utilized?
The blower uses labyrinth seals.

What industries commonly use multi-stage centrifugal blowers?
Wastewater treatment, chemical processing, petrochemical facilities, power generation, manufacturing plants, and pneumatic conveying operations commonly use these blowers.

What are the benefits of a multi-stage centrifugal blower?
Multi-stage designs provide higher pressure capability, smooth airflow, energy efficiency, continuous-duty operation, and reduced maintenance requirements.
