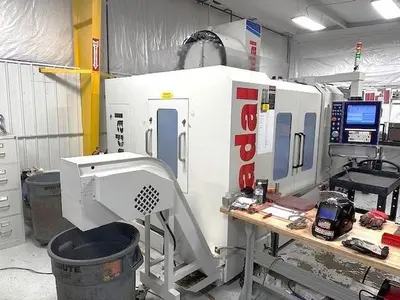

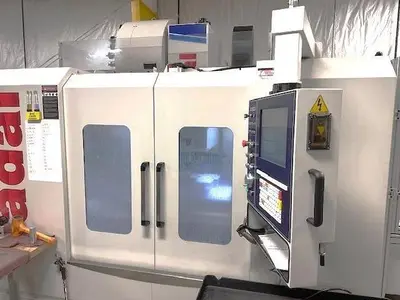

Used condition. Features 47.25" x 19.75" table, 24-station tool changer, 15/22.5 HP spindle, 40"x20"x20" travels, and 10,000 RPM. Comes with 2 pallet changer, coolant system, and Fadal 64 MP CNC control.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 22.5 hp | 16.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 47.25" | 1,200.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fadal) | CNC (Fadal) |
Table Size 47.25" x 19.75"
Maximum Table Load 1,320 lbs
X-Axis Travel 40"
Y-Axis Travel 20"
Z-Axis Travel 20"
Distance Spindle Nose to Table Top 5" to 25"
Spindle Taper CAT 40
Spindle Speed 10,000 RPM
Spindle Motor 15/22.5 HP
Tool Magazine Capacity 24 Station Side Mounted Tool Changer
Rapid Traverse Rates 1,000 IPM
Machine Weight 11,770 lbs

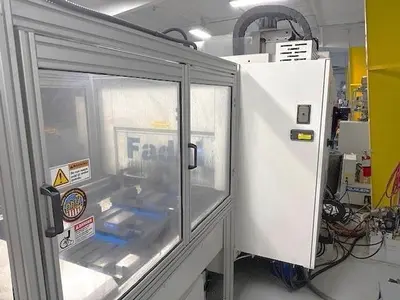

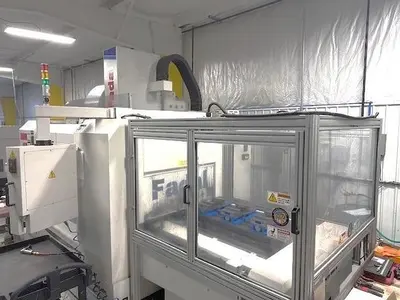

2 Pallet Factory/OEM Changer System
Coolant Through the Spindle
Spindle Oil Cooler
24 Station Side Mounted Tool Changer
Chip Conveyor
Spindle Air Blast
Rigid Tapping
3 Color Machine Status Condition Lights
Complete Coolant System with Tank & Pump
Boxed Ways
USB Port Interface
RS 232 Port Interface
All Available Manuals
Wired 208V Electrics
Machine Control Fadal 64 MP CNC Control
