USED 2023 HAAS VM-6
Overview

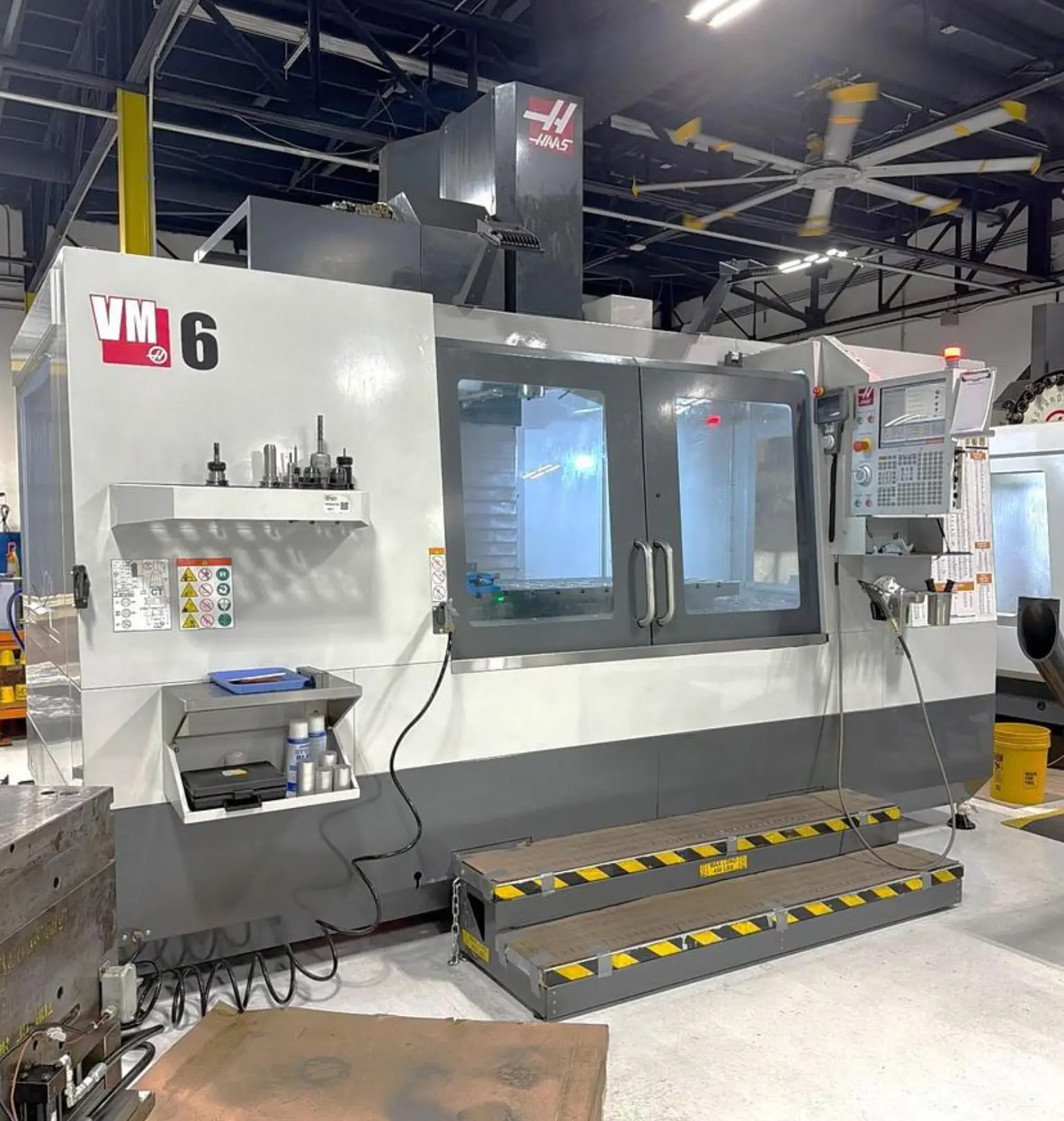

Vertical Machining Center, used, featuring a 64" x 28" table, 15,000 RPM spindle, 30 HP motor, 30 station tool changer, probing package, advanced tool management, and comprehensive connectivity options.
Specs
Table Size 64" x 28"
Maximum Table Load 4,000 lbs.
Distance Spindle Nose to Table Top 4" - 34"
X-Axis Travel 64"
Y-Axis Travel 32"
Z-Axis Travel 30"
Spindle Taper CAT 40
Spindle Speed 15,000 RPM
Spindle Motor 30 HP
Number of Tool Positions 30 Station Side Mounted ATC
Tool Change Time Tool to Tool 1.6 seconds
Rapid Traverse Rates X / Y, Z 540 IPM / 600 IPM
Machine Dimensions 195" x 102" x 129"
Machine Weight 24,000 lbs.
Equipped With
15,000 RPM Spindle
30 Station Side Mounted Tool Changer
Haas WIPS Probing Package with Tool and Part Probing
Programmable Coolant Nozzle
Linear Scales ($15,000 Option)
Rigid Tapping
Auto Air Gun
Auger Style Chip Conveyor
User Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
Visual Part Programming System
Remote Jog Handle
High Intensity Lighting

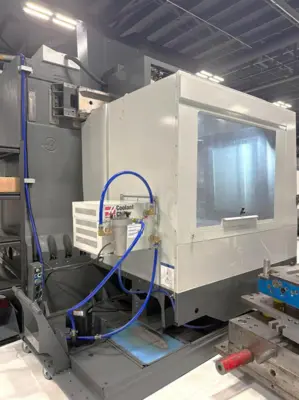

Coolant Chiller Unit
Chip Filter
Multi Stage Coolant Pump
Chip Wash Down Feature
64 GB Expanded Programming Memory
WiFi w/ Ethernet Interface
USB Port Interface
RS 232 Port Interface
Window Air Blast
Coolant System with Tank & Pump
Advanced Tool Management

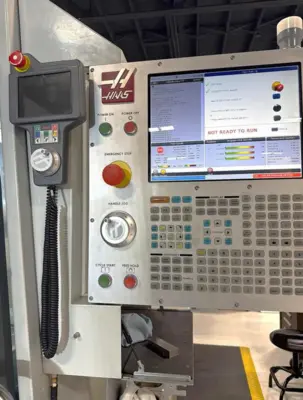

15" Color Monitor
Early Power Failure Detection Module
Media Display by M-Code
95 Gallon Coolant Tank
Haas Safe Run
Haas Drop
Haas Connect
ECO Mode
Low Voltage Transformer
Wired 220V Electrics
