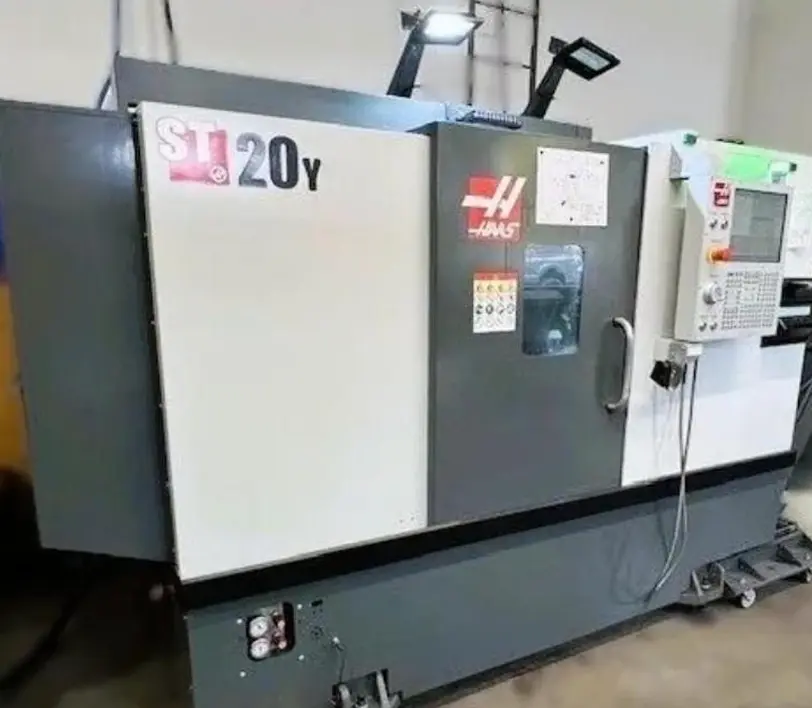

USED 2023 HAAS ST-20Y
Overview
Used CNC Lathe. Features 21" swing, max machining dimensions 11.75" × 22.5", 4,000 RPM spindle speed, 20 HP motor, and advanced control. Equipped with live milling/drilling, barfeed, and more.
Specs
Chuck Size 8.3" 3-Jaw Hydraulic Chuck
Maximum Swing Over Cross Slide 21"
Maximum Machining Diameter 11.75"
Maximum Machining Length 22.5"
Maximum Bar Capacity 2.5"
X-Axis Travel 8.4"
Y-Axis Travel +/- 2.0"
Z-Axis Travel 22.5"
C Axis Spindle Rotation 0.01 Degree
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 4,000 RPM
Spindle Motor 20 HP
Rotary Tool Speed / Rotary Motor 4,000 RPM / 5 HP
Number of Turret Positions 12 Bolt on Style - BMT65 Type
Rapid Traverse Rates X, Y / Z 472 IPM / 945 IPM
Tailstock Taper MT #4
Machine Dimensions LxWxH 142" x 90" x 92"
Machine Weight 10,480 lbs.
Equipped With
High Torque C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Haas Barfeed System
8.3" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Presetter
Haas Visual Part Programming System
User Definable Macros
High Intensity Lighting
Spindle Orientation
Rigid Tapping
Oil Skimmer
Media Display M Code M130

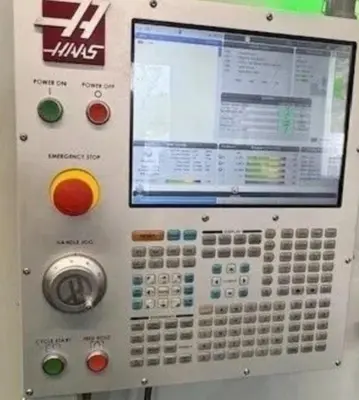

Machine Control Haas NextGen Control
