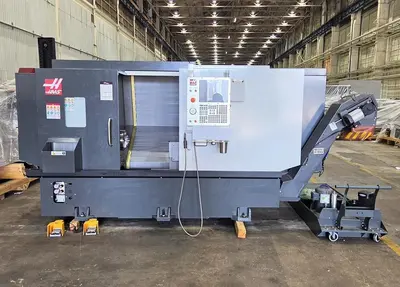

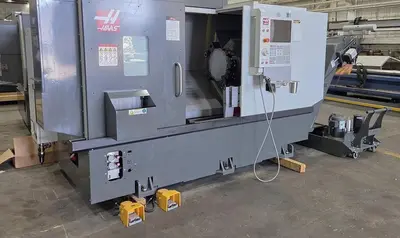

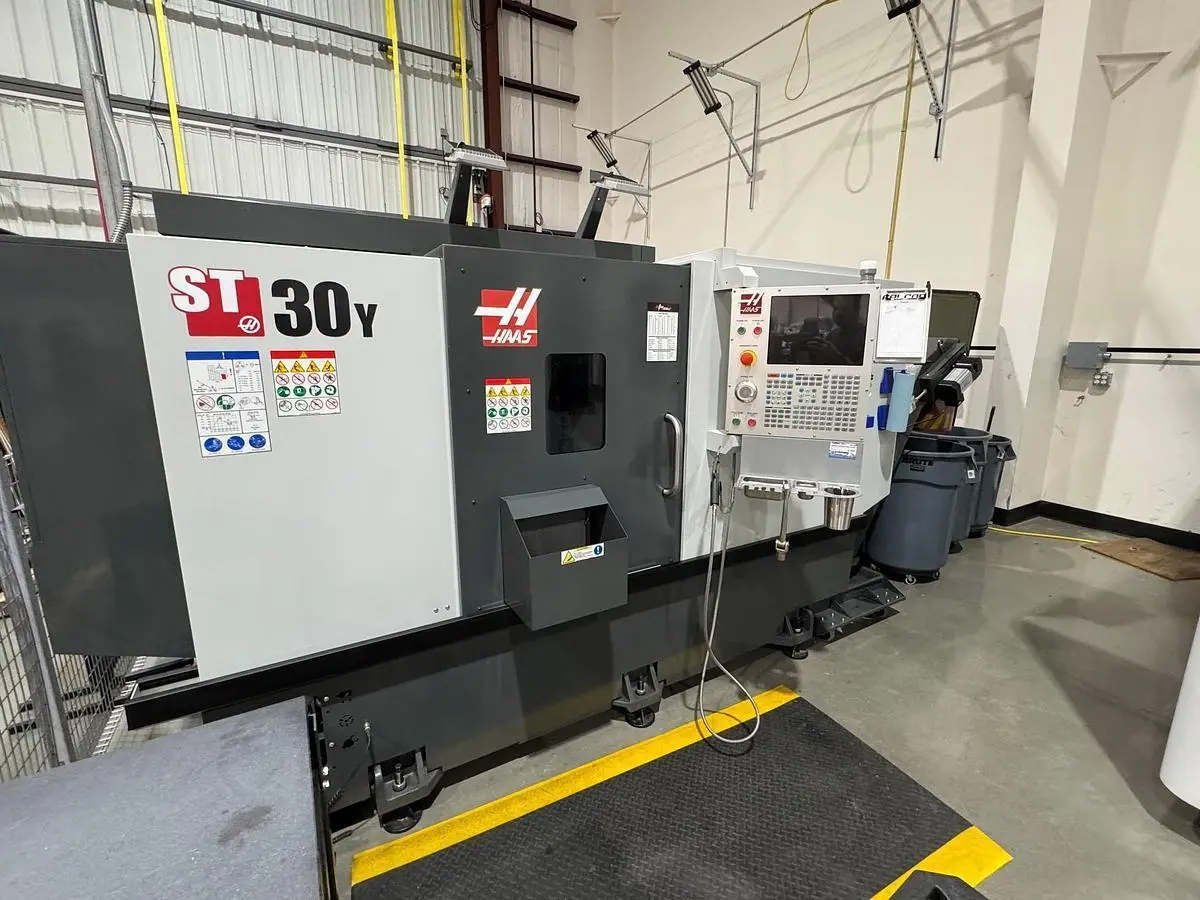

CNC Lathe, used condition, features 10" 3 Jaw Hydraulic Chuck, 31.75" Max Swing, and 18" Max Turning Diameter. Equipped with C Axis Rotation, Live Milling, and more. Dimensions: 171" x 90" x 83", Weight: 14,300 lbs.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 584.2 mm | 23" |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 18" | 457.2 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |

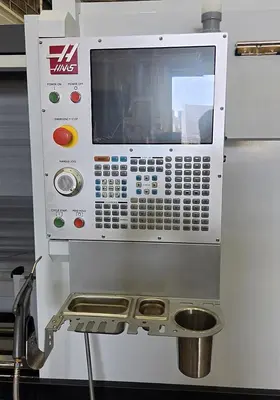

| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 171" x 90" x 83" | 171" x 90" x 83" |
| Weight | 14,300 lbs | 14,300 lbs |
Chuck Size 10" 3 Jaw Hydraulic
Maximum Swing 31.75"
Maximum Turning Diameter 18"
Maximum Machining Length 23"
Maximum Bar Capacity 3"
X-Axis Travel 12.5"
Y-Axis Travel +/- 2.0"
Z-Axis Travel 26"
C Axis Spindle Rotation .001 Full C Axis Rotation
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 30 - 3,400 RPM
Spindle Motor 30 HP
Rotary Tool Speed / Rotary Motor 4,000 RPM / 5 HP
Number of Turret Positions 12 Station Turret
Rapid Traverse Rates X, Y / Z 472 IPM / 945 IPM
Tailstock Body Travel / Taper 20" / MT #4
Machine Dimensions 171" x 90" x 83"
Machine Weight 14,300 lbs.
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Programmable Tailstock
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Tool Presetter
Visual Part Programming System
Spindle Orientation
Rigid Tapping
User Definable Macros
Early Power Failure Detection Module
Ethernet Interface
