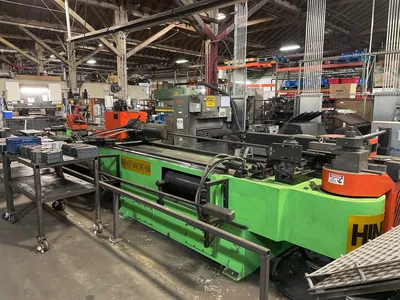

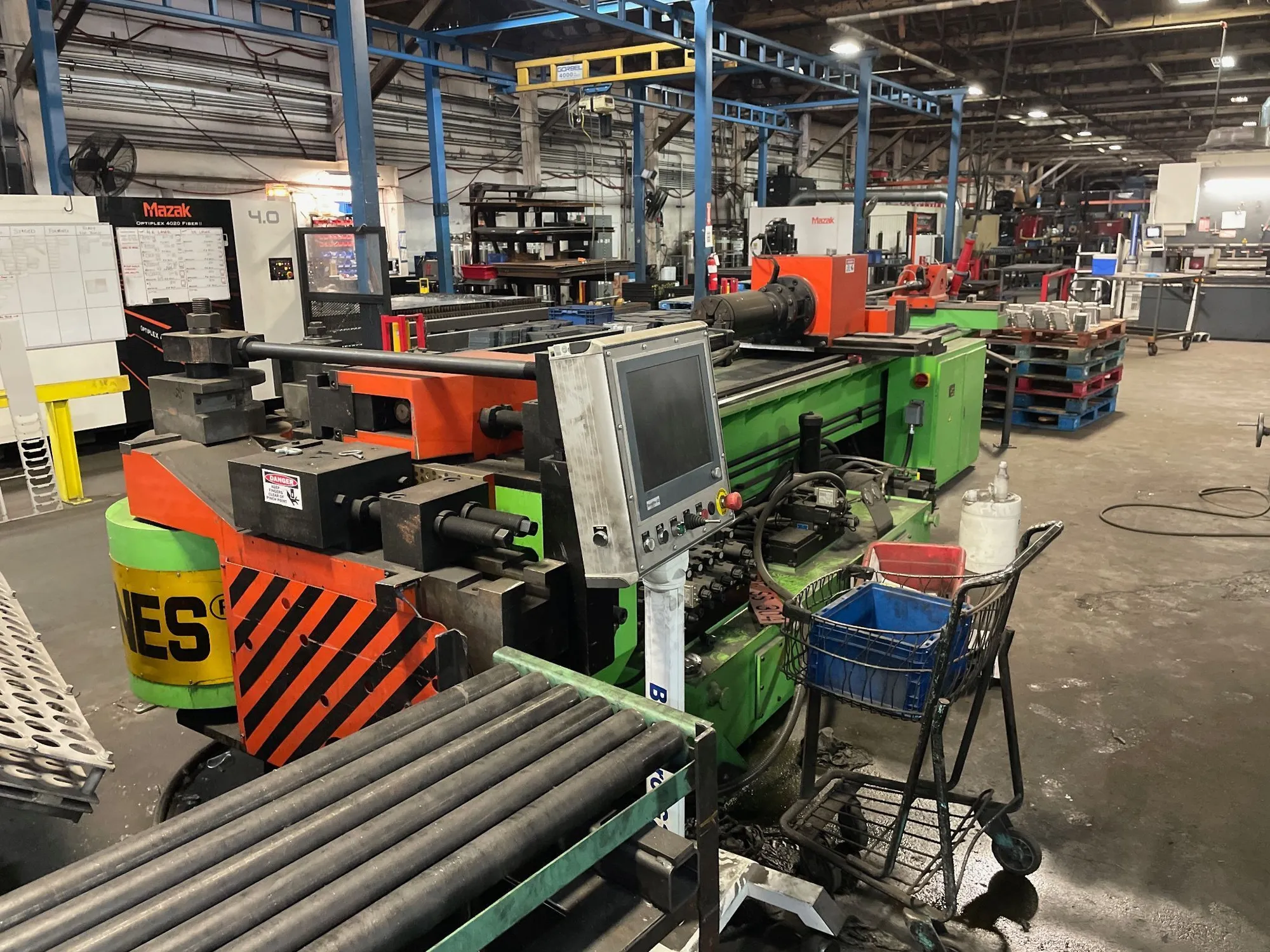

USED 2020 HINES 600 CNC-HB
Overview
Description
2020 Hines 600 CNC-HB 6" OD x 0.25" Wall, 40 HP, 18" Max. Radius, 90 Degree Maximum Bending Angle
Specifications
| Capacity | 6" | 152.4 mm |
|---|---|---|
| Dimensions | 24' L x 7' W x 6' H | 24' L x 7' W x 6' H |
| Weight | 26,000 LBS | 26,000 LBS |
Capacity............................6" OD x 0.250 Wall
Maximum Feeding.....................33 feet/minute
Maximum POB.........................20 r/min
Standard Maximum Radius.............18"
Maximum Bend Angle..................190 Degrees
Bend Angle Accuracy +/-.............0.1 Degree
Bend Arm Speed......................2 RPM
Maximum Tube Length over Mandrel....14'
Motor...............................40 HP
Operating Pressure..................2,300 PSI
Reservoir Capacity..................275 US Gallons
Voltage.............................440/480/3 Phase
Approximate Dimensions..............24' L x 7' W x 6' H
Approximate Weight..................26,000 LBS
**MACHINE IN LIKE NEW CONDITION USED UNDER 100 HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
