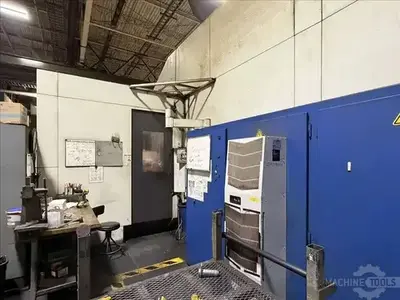

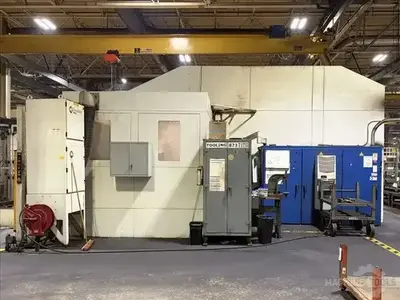

MAG HMC 1250 CNC Horizontal Machining Center
| X | 82.7" | 2,100.6 mm |
| Y | 59.1" | 1,501.1 mm |
| Z | 68.9" | 1,750.1 mm |
| Power | 75 hp | 55.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Pallet-W | 49.2" | 1,249.7 mm |
| Pallet-L | 49.2" | 1,249.7 mm |

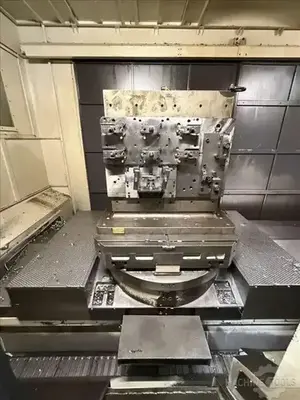

Pallet Size: 49.2" x 49.2"
Max. Workpiece Capacity: 11,023 lb.
Max. Workpiece Diameter: 94.5"
Max. Workpiece Height: 72.8"
X-Axis Travel: 106.3"
Y-Axis Travel: 70.9"
Z-Axis Travel: 80.7"
B-Axis Index: 360°
Spindle Speed: 5,000 RPM
Spindle Taper: ANSI B5.50 No. 50

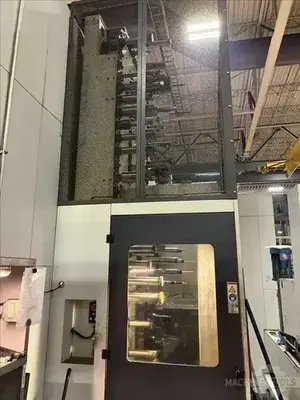

Tool Capacity: 120

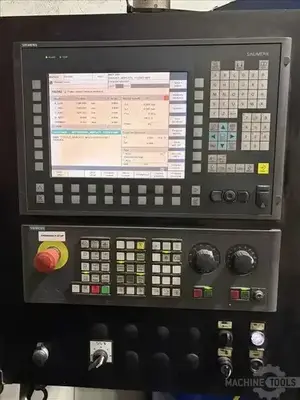

Siemens 840D CNC Control
(1) Pallet Changer w/ Rotation

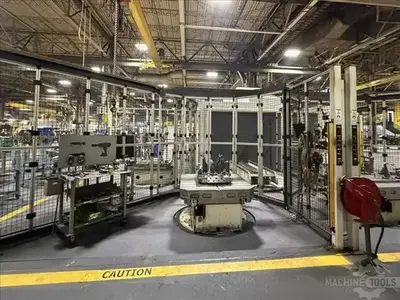

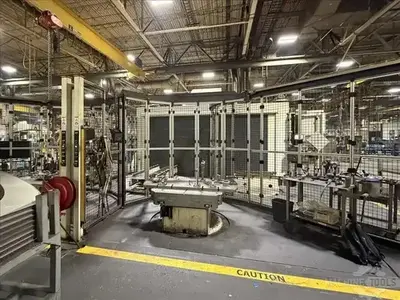

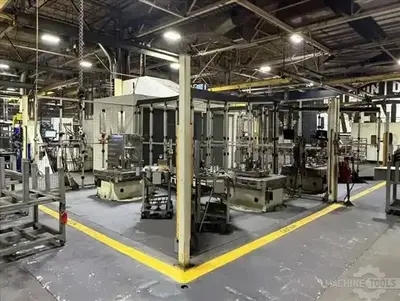

(4) Rotating Pallet Setup Stands

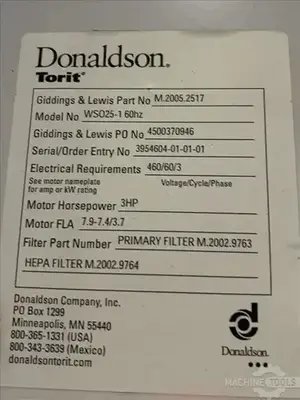

Donaldson Torit WSO 25-1 Mist Collection System

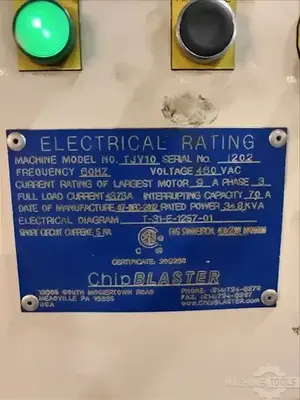

ChipBLASTER TJV-10 High-Pressure Coolant System

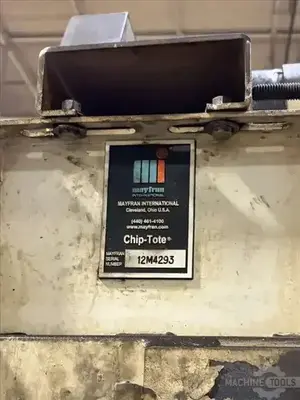

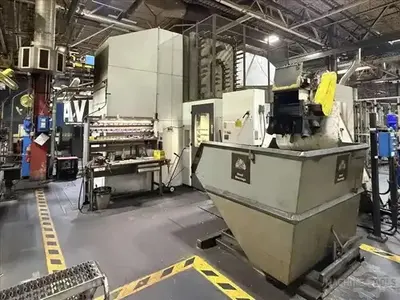

(2) Extended Chip Conveyors

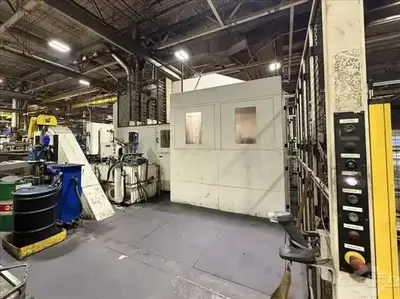

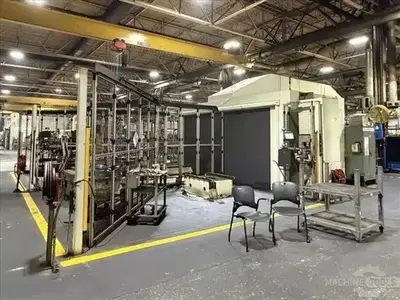

Full Chip Enclosure
Machine Mounted in Pit
