USED 1995 CLAUSING COLCHESTER CNC 200

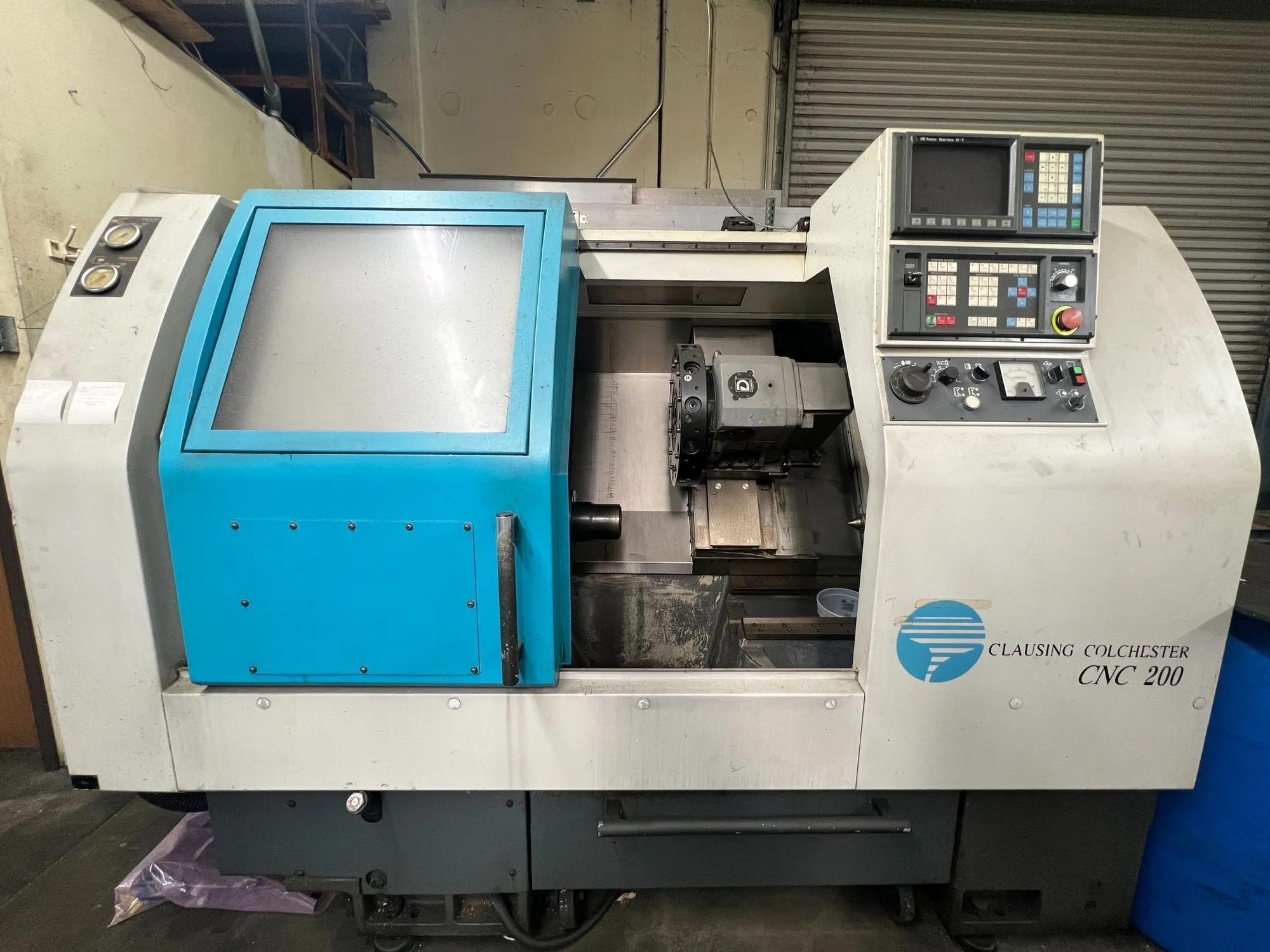

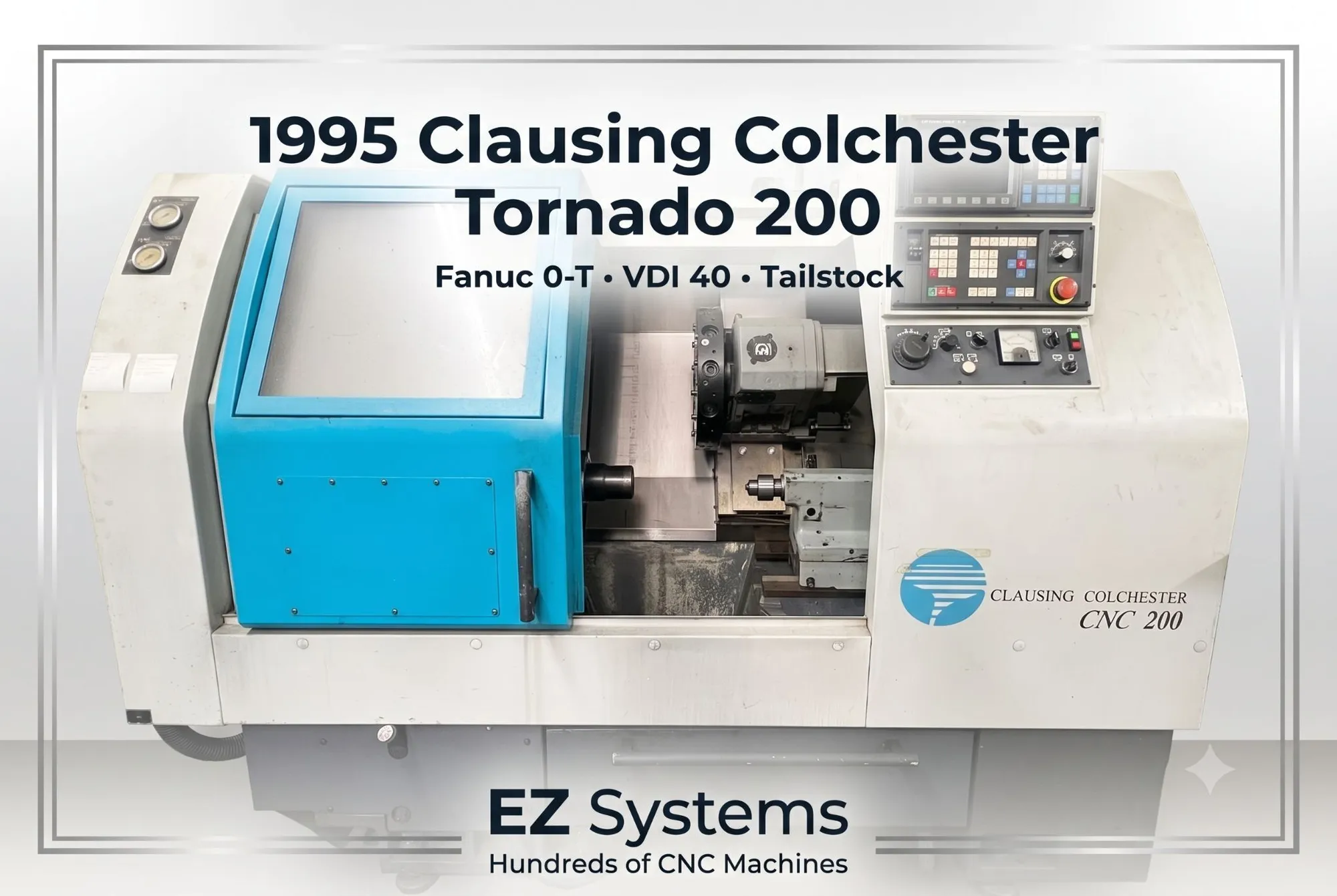

1995 Clausing Colchester Tornado 200 CNC Lathe, Fanuc 0-T Control, 12-Station VDI 40 Turret, Hydraulic Tailstock, 3500 RPM FOB Hayward, CA

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

Title: 1995 Clausing Colchester Tornado 200 CNC Lathe Fanuc 0-T VDI 40 Tailstock

Brand: Clausing Colchester

Model: Tornado 200

Year: 1995

Specifications

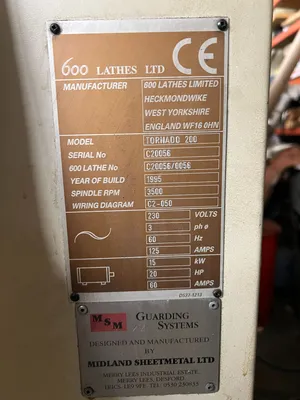

• Manufacturer: 600 Lathes Limited (West Yorkshire, England)


• Model: Tornado 200


• Serial Number: C20056


• Year of Build: 1995


• CNC Control: GE Fanuc Series 0-T


• Swing Over Bed: 17.32" (440 mm)


• Swing Over Cross Slide: 11.81" (300 mm)


• Max Turning Diameter: 9.84" (250 mm)


• Max Turning Length: 17.71" (450 mm)


• Approximate Weight: 5,500 lbs - 6,500 lbs (2,600 - 2,950 kg)


• Footprint (L x W x H): Approx. 92" x 56" x 68" (Excludes chip conveyor dimension)


• Maximum Spindle Speed: 3,500 RPM


• Spindle Motor Power: 20 HP (15 kW)


• Spindle Motor Current: 60 Amps


• Spindle Nose Type: A2-6


• Drawtube/Bar Capacity: 2.04" (52 mm)


• Turret Drive Type: Duplomatic BSV-N Electromechanical Drive


• Turret Capacity: 12-Station Disc Layout


• Tooling Style: VDI 40

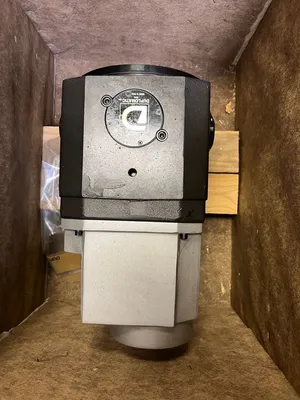

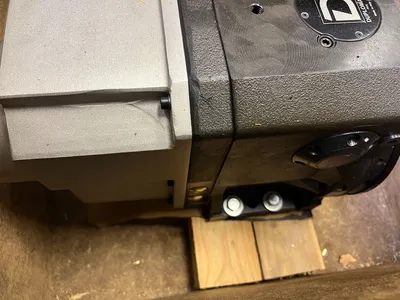

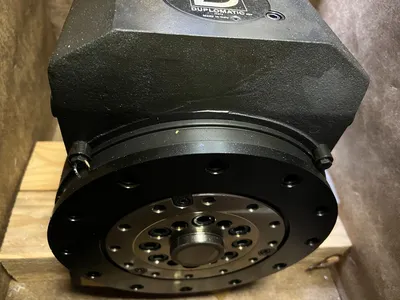

• INCLUDED BONUS ASSET: Brand-New, never-mounted Duplomatic replacement turret housing in factory crate.


• Tailstock: Integrated Programmable Hydraulic Tailstock


• Input Voltage: 230 Volts


• Phase: 3 Phase


• Frequency: 60 Hz


• Full Load Amperage: 125 Amps


• Wiring Diagram Ref: C2-050

Description

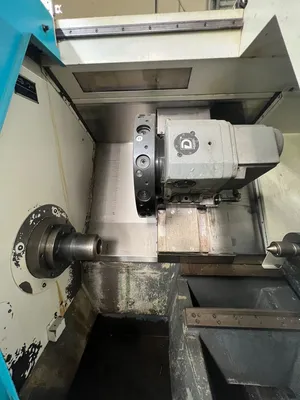

This 1995 Clausing Colchester Tornado 200 package comes complete with an integrated Fanuc 0-T control panel, a full 12-station VDI indexing disc configuration, and a programmable hydraulic tailstock assembly. The machine is constructed on robust, hardened slant-bed linear ways and cross-slide surfaces that remain visually clean, carrying a normal light surface oil film free of deep scoring, gouges, or rust pitting. While the external sheet metal enclosure exhibits typical mid-90s paint flaking and cosmetic wear around the base and lower splash guard panels from water-soluble coolant use, it retains its durable workhorse build. Note that the spindle nose setup is currently bare without a chuck or collet actuator, making it ready for the buyer's choice of workholding, and the spindle assembly itself requires a bearing rebuild due to noisy operation.

Key Features & Benefits

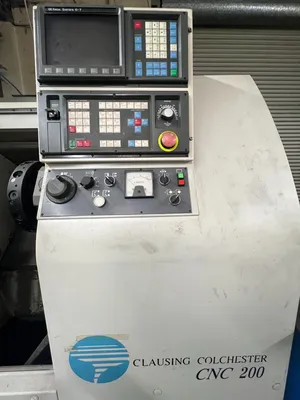

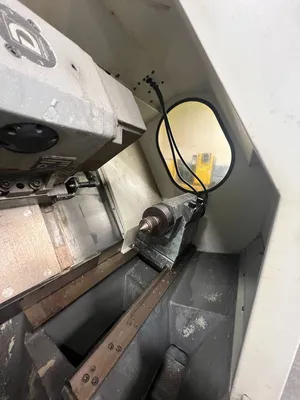

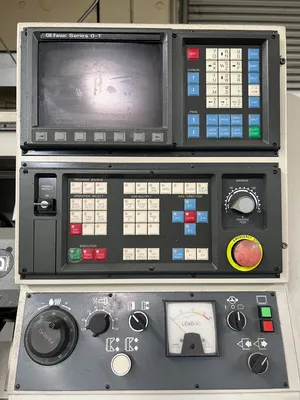

Equipped with a programmable hydraulic tailstock unit on the lower ways, this machine easily transitions from short chucking work to long shaft and bar-fed turning projects between centers. The lower control panel features dedicated hardware buttons for CHUCK ENABLE and T.STK ENABLE alongside an analog spindle load meter calibrated to 150% for direct monitoring of the 20 HP motor. Operator controls are sharp and legible, with the GE Fanuc Series 0-T keypad buttons showing very minimal plastic degradation or text wear. For system monitoring and troubleshooting, twin analog pressure dials are mounted on the upper left bulkhead to trace hydraulic chucking and system pressure. Additionally, this package includes an invaluable, brand-new standalone Duplomatic BSV-N series electromechanical drive housing in its factory crate, serving as a direct mechanical drop-in match for the core casting inside the enclosure.

Dimensions & Weight

• Physical Footprint: Approx. 92" x 56" x 68"


• Weight: Approximately 5,500 lbs - 6,500 lbs

Shipping & Location Details

Location: Hayward, CA

This machine is offered FOB. Buyer is responsible for all applicable freight and rigging expenses.
