USED 2011 CURRENT EDM RT6050
Overview

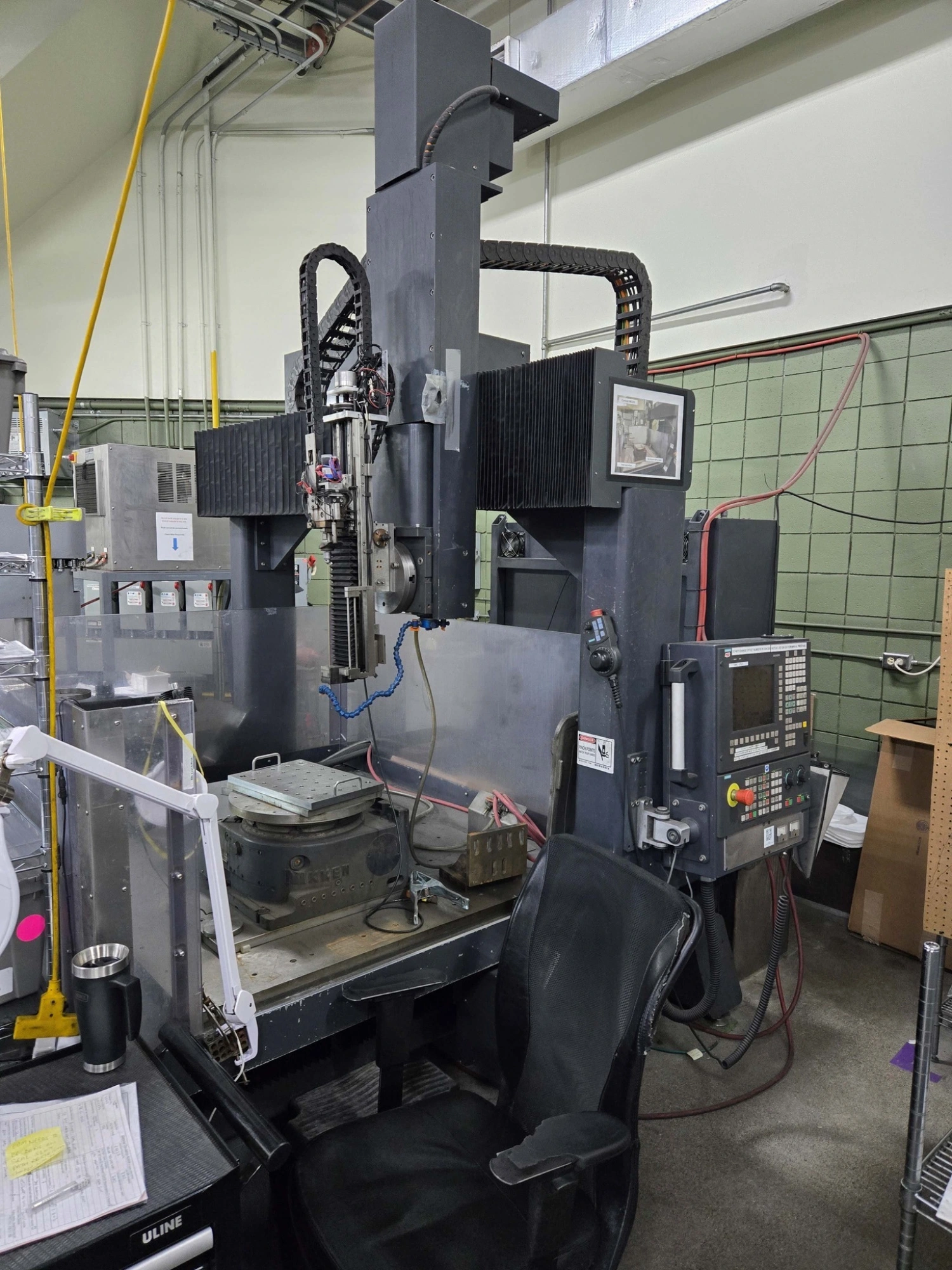

2011 CURRENT EDM RT6050 5-axis CNC EDM Drilling Machine, featuring Siemens Sinumerik control. X: 60", Y: 50", Z: 16". Worktable 60"x50", max table weight 2000 lbs. Ideal for precise drilling with rotary table Nikken CNC321.
Specs
W-Axis Travel 30.0 in. (762mm)
Theta Axis Travel ±75°
Electrode Diameter Range Without/AEC
0.004 in. – 0.256 in. (0.1mm – 6.5mm)
Electrode Diameter Range With/AEC
0.012 in. – 0.118 in. (0.3mm – 3.0mm)
Worktable Size
60 in. x 50 in. (1524mm x 1270mm)
Work Envelope
36 in. D x 25 in. H (914mm D x 635mm H)
Maximum Part Height
36 in. with 2 in. long guide

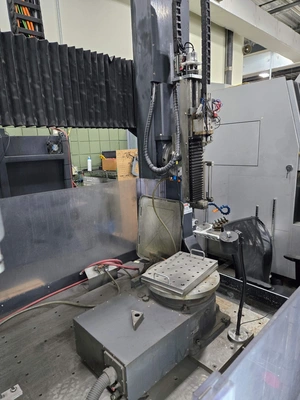

Rotary Table - Nikken CNC321
Table Weight Capacity 2000 lbs. (909kg) maximum
Machine Weight 12000 lbs. (5455kg)
Equipped With

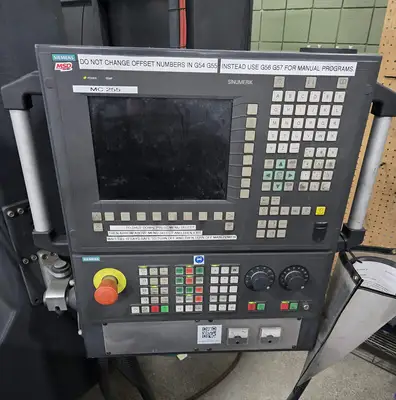

Siemens Sinumerik control
