USED K.O. LEE S618B

K.O. Lee S618B 6x18 Manual Precision Surface Grinder with Digital Readout, Walker Electro-Magnetic Chuck, 1-1.5 HP Spindle, FOB Lakewood, CA

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

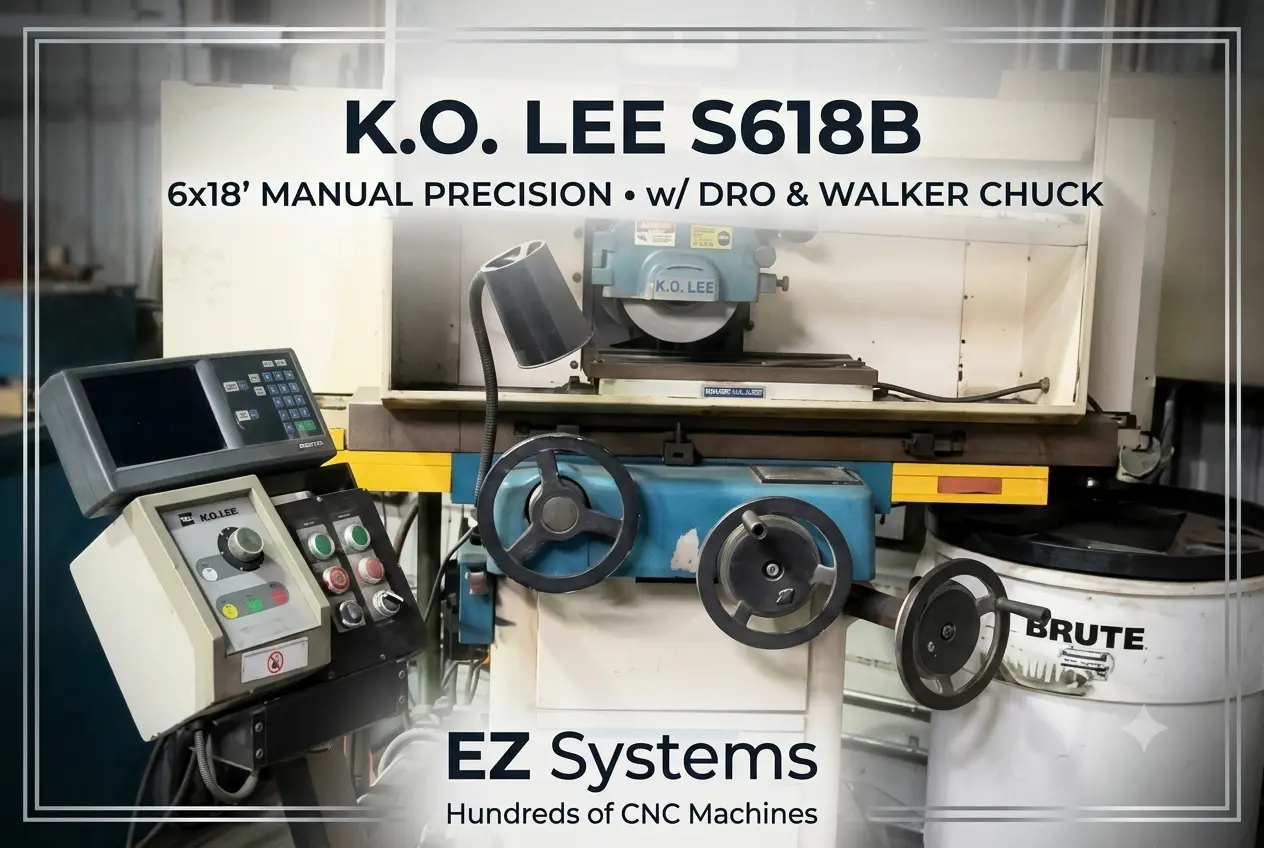

Title: K.O. Lee S618B 6x18 Manual Precision Surface Grinder w/ DRO & Walker Chuck

Brand: K.O. Lee

Model: S618B

Year:

Specifications

• Table Working Surface: 6” × 18” (Actual table casting is approx. 6” × 19”)


• Operation Style: 100% Manual Hand-Feed (driven via the three distinct front handwheels for longitudinal table travel, cross-feed saddle adjustment, and vertical wheel-head depth)


• Maximum Grinding Wheel Capacity: 8” Diameter × 3/4” Wide × 1-1/4” Bore


• Spindle Motor Power: 1 HP or 1.5 HP Direct-Drive High-Precision Spindle (running at ≈ 3, 450 RPM)


• Electrical Configuration: Dual-voltage 230V / 460V (3-Phase, 60 Hz)


• Magnetic Workholding: It is outfitted with a Walker Electro-Magnetic Chuck mounted to the table, controlled by the dedicated Walker control unit positioned on the left-side swing arm


• Safety / Environment: Features an integrated steel and plexiglass wrap-around splash/dust enclosure frame around the table area to contain grinding dust and sparks


• Total Machine Weight (Approximate Range): 1,150 lbs to 1,250 lbs


• Table Travel (Longitudinal): 18.5"" - 21""


• Cross Travel: 6.5"" - 9.25""


• Maximum Distance (Spindle to Table): ~15.5"" - 16""


• Spindle Motor: Typically 1 HP - 2 HP


• Spindle Speed: 3,600 RPM


• Standard Wheel Size: 8"" × 1/2"" × 1-1/4""


• Crossfeed Handwheel (Per Graduation): 0.0008""


• Crossfeed Handwheel (Per Revolution): 0.200""


• Downfeed Handwheel (Per Graduation): 0.00025""


• Downfeed Handwheel (Per Revolution): 0.050""


• Digital Readout: Cross-feed and vertical micro-movements digitally down to 0.0001”

Description

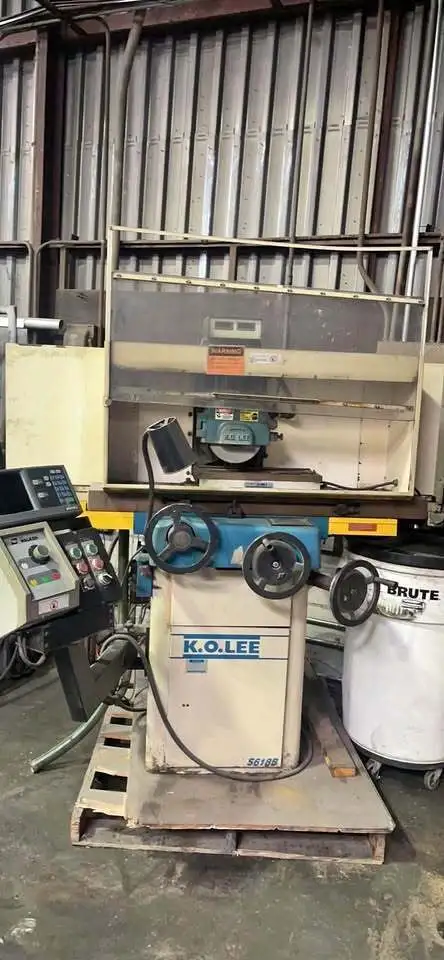

Optimize your toolroom capability with this reliable K.O. Lee Model S618B Manual Precision Surface Grinder. Pictured sitting ready on its shipping pallet, these classic American-made shop mainstays (originally engineered out of Aberdeen, South Dakota) are highly prized across manufacturing environments for delivering high mechanical accuracy during demanding daily tool-and-die processes. The exact designation is a K.O. Lee Model S618B (the ""S618"" indicating the 6” × 18” capacity, and the ""B"" designating the manual hand-feed precision model class).

Key Features & Benefits
This 6-inch by 18-inch capacity manual hand-feed platform provides smooth operation style control through three distinct front handwheels for longitudinal table travel, cross-feed saddle adjustment, and vertical wheel-head depth. It comes outfitted with a heavy-duty table-mounted Walker Electro-Magnetic Chuck and dedicated arm-mounted control console, giving operators precise holding power and high component stability without modern automated software failure points. The addition of a Digital Readout (DRO) drastically elevates the functionality of this toolroom grinder, allowing a machinist to read cross-feed and vertical micro-movements digitally down to 0.0001” rather than squinting at the mechanical vernier dials.

Dimensions & Weight

• Physical Footprint: 50"" L x 44"" W x 68"" H


• Weight: Approximately 1,436 lbs

Shipping & Location Details

Location:

This machine is offered FOB Lakewood, CA . Buyer is responsible for all applicable freight and rigging expenses.

Fair Sell Price Analysis

Market Context: The K.O. Lee S618B manual precision surface grinder is a highly sought-after machine in the used machinery market, known for its robust American-made construction and enduring accuracy. Its 6"" x 18"" capacity, coupled with manual hand-feed operation and a Walker Electro-Magnetic Chuck, makes it ideal for precision toolroom applications. The inclusion of a Digital Readout (DRO) significantly enhances its value, providing machinists with superior control and measurement capabilities, which is a key differentiator for this classic model.
