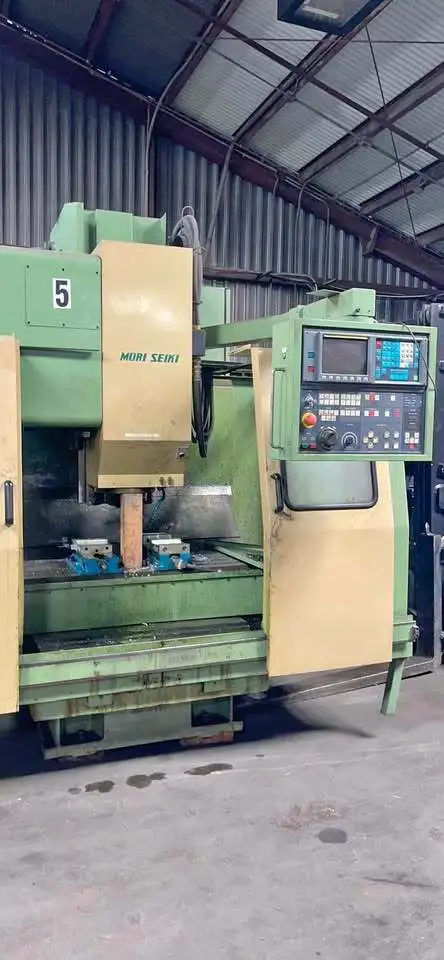

USED MORI SEIKI MV-40B

Mori Seiki MV-40B CNC Vertical Machining Center with BT-40 Spindle, 8,000 RPM, 43.3"" x 17.7"" Table, 20-Pot ATC, FOB

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

Title: Mori Seiki MV-40B CNC VMC, BT-40 Taper, 8,000 RPM Spindle, 43.3"" x 17.7"" Table

Brand: Mori Seiki

Model: MV-40B

Year:

Specifications

• Mori Seiki MSC-501 CNC control panel (integrated with a Fanuc 21i-MA backend) featuring a Mori Seiki MAPPS I (Mori Advanced Programming Production System) interface: Yes


• Machine Type: CNC Vertical Machining Center (VMC)


• Model: MV-40B


• Manufacturing Number (Serial): 2802


• Electrical Input Voltage: 220V (Standard industrial layout)


• Phase / Wiring: 3-Phase, 3-Wire configuration


• Frequency: 60 Hz


• Power Load: 33 KVA (Full-load power requirement, which translates to roughly a 90–100 Amp minimum circuit supply at 220V)


• General Enclosure & Envelope Specs: Yes


• Table Sizing: 43.3” X 17.7” or 20” work surface


• Axis Travels: 31.5” X 16.1 Y 20.0” Z


• Spindle Taper: BT-40


• Spindle Speed: Typically features an 8,000 RPM


• Automatic Tool Changer (ATC): Umbrella-style carousel, 20-pot capacity


• Weight: ~12,000 to 13,360 lbs (5,443 to 6,055 kg) depending on options (e.g., enclosures, pallet changers, or side-mount tool changers)


• Approximate Width: ~87 inches (2,209 mm)


• Approximate Length: ~110 inches (2,794 mm)


• Approximate Height: ~106 inches (2,692 mm)


• Table Load Capacity: 1,540 lbs (700 kg)

Description

The Mori Seiki MV-40B CNC Vertical Machining Center is a robust and reliable solution for precision machining operations. This machine is configured for a BT-40 spindle taper, offering versatility for a wide range of tooling. It features an umbrella-style automatic tool changer (ATC) with a 20-pot capacity, ensuring efficient tool changes and continuous operation. The MV-40B is designed for high-performance machining, making it suitable for demanding industrial environments.

Key Features & Benefits
Equipped with a Mori Seiki MSC-501 CNC control panel, integrated with a Fanuc 21i-MA backend and a MAPPS I interface, this VMC provides advanced programming and user-friendly operation. Its generous table sizing of 43.3” X 17.7” or 20” work surface and substantial axis travels of 31.5” X 16.1 Y 20.0” Z allow for machining of diverse part sizes. The 8,000 RPM spindle speed and 1,540 lbs table load capacity further enhance its productivity and capability for heavy-duty tasks.

Dimensions & Weight

• Physical Footprint: Approximate Length: ~110 inches (2,794 mm) X Approximate Width: ~87 inches (2,209 mm) X Approximate Height: ~106 inches (2,692 mm)


• Weight: Approximately 12,000 to 13,360 lbs

Shipping & Location Details

Location:

This machine is offered FOB . Buyer is responsible for all applicable freight and rigging expenses.

Fair Sell Price Analysis

Market Context: The Mori Seiki MV-40B is a well-regarded CNC Vertical Machining Center known for its durability and precision. Machines of this caliber, especially those equipped with Fanuc controls and a robust ATC system, maintain strong market value due to their reliability and performance in various manufacturing applications. Its BT-40 spindle taper and 8,000 RPM spindle speed make it a versatile asset for shops requiring efficient material removal and accurate finishing.
