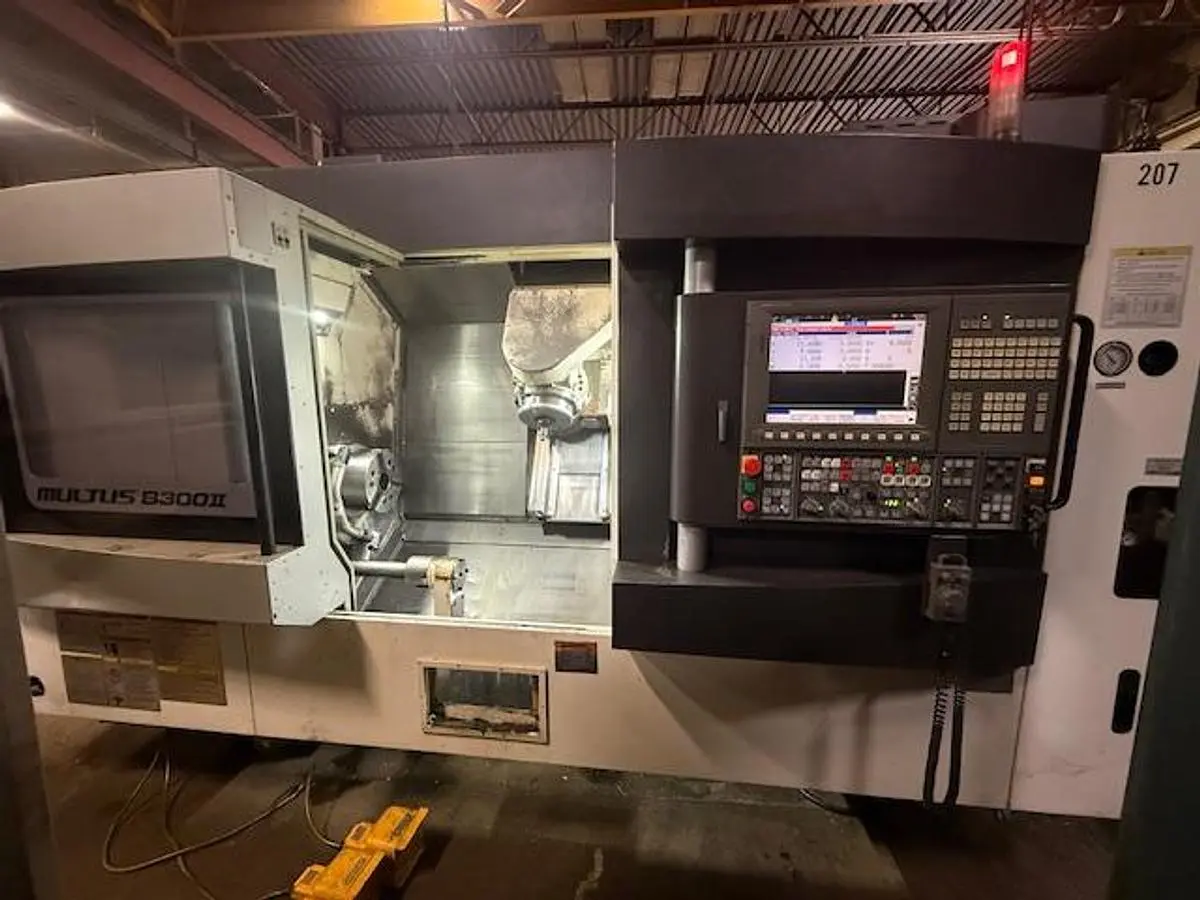

USED 2012 OKUMA MULTUS B300II

2012 Okuma Multus B300II

S/N: 192199

SPECIFICATIONS:

Max Machining Diameter: 17.72"
Max Working Distance Between Spindles: 35.43"
Main Spindle Chuck Size: 10"
X-Axis (Cross Travel of Universal Head): 22.83"
Z-Axis (Longitudinal Travel of Universal Head): 36.80"
Y-Axis (Travel of Universal Head): 6.299"
B-Axis (Rotation of Universal Head): 225°
W-Axis (Sub-Spindle Slide): 33.46"
C-Axis (Indexing Positions of Main Spindle): .001°
C2-Axis (Indexing Positions of Sub-Spindle): .001°
Main Spindle Bore: 3.1"
Main Spindle Nose: A2-8
Main Spindle Horsepower: 20 HP
Main Spindle Speed Range: 50 - 3,800 RPM
Sub-Spindle Horsepower: 20 HP
Sub-Spindle Speed Range: 38 - 5,000 RPM
Automatic Tool Changer Capacity (ATC): 60 Total
Live Tooling Horsepower: 15 HP
Live Tooling Speed Range: 90 - 6,000 RPM
Machine Cutting Hours: 7,700
Approximate Machine Dimensions: 166" x 90"
Approximate Machine Height: 102"
Approximate Machine Weight: 24,000 LBS


EQUIPPED WITH:

Okuma OSP P300S CNC Control
10" 3-Jaw Chuck on Main
8" 3-Jaw Chuck on Sub
60 Position ATC
Parts Catcher
Renishaw Tool Setter
Helical Cutting for Macturn
