USED HARDINGE HLV-H

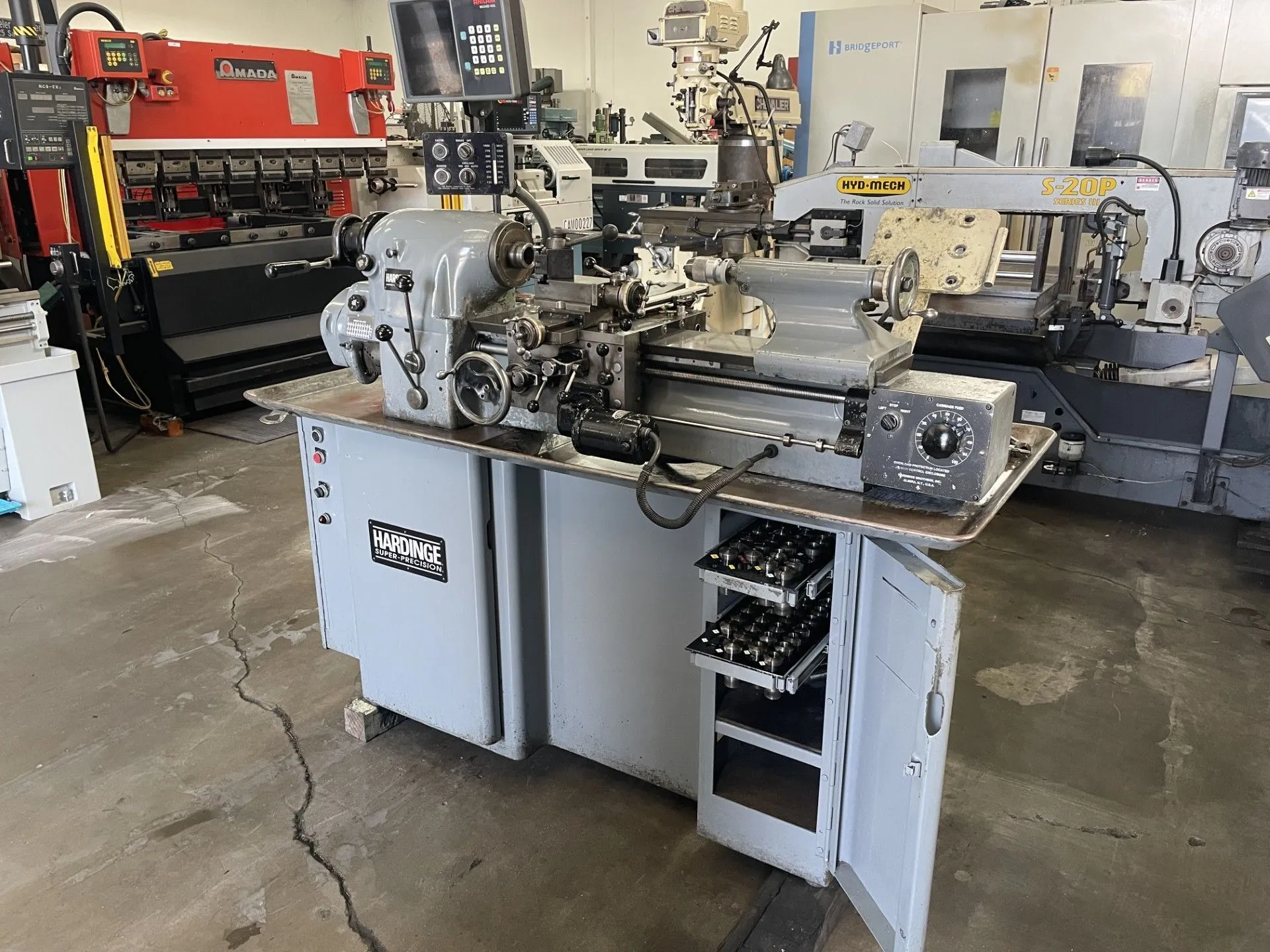

Hardinge HLV-H Precision Tool Room Lathe #8206 #1

SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4"
Motor: 1 1/2 HP
Dimensions (L x W x H): 71" X 38" X 65"
Weight: 1,800 Lbs.

EQUIPPED WITH:
Anilam Wizard 450L Digital Read Out
Tailstock
