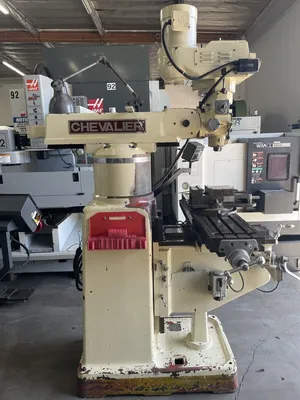

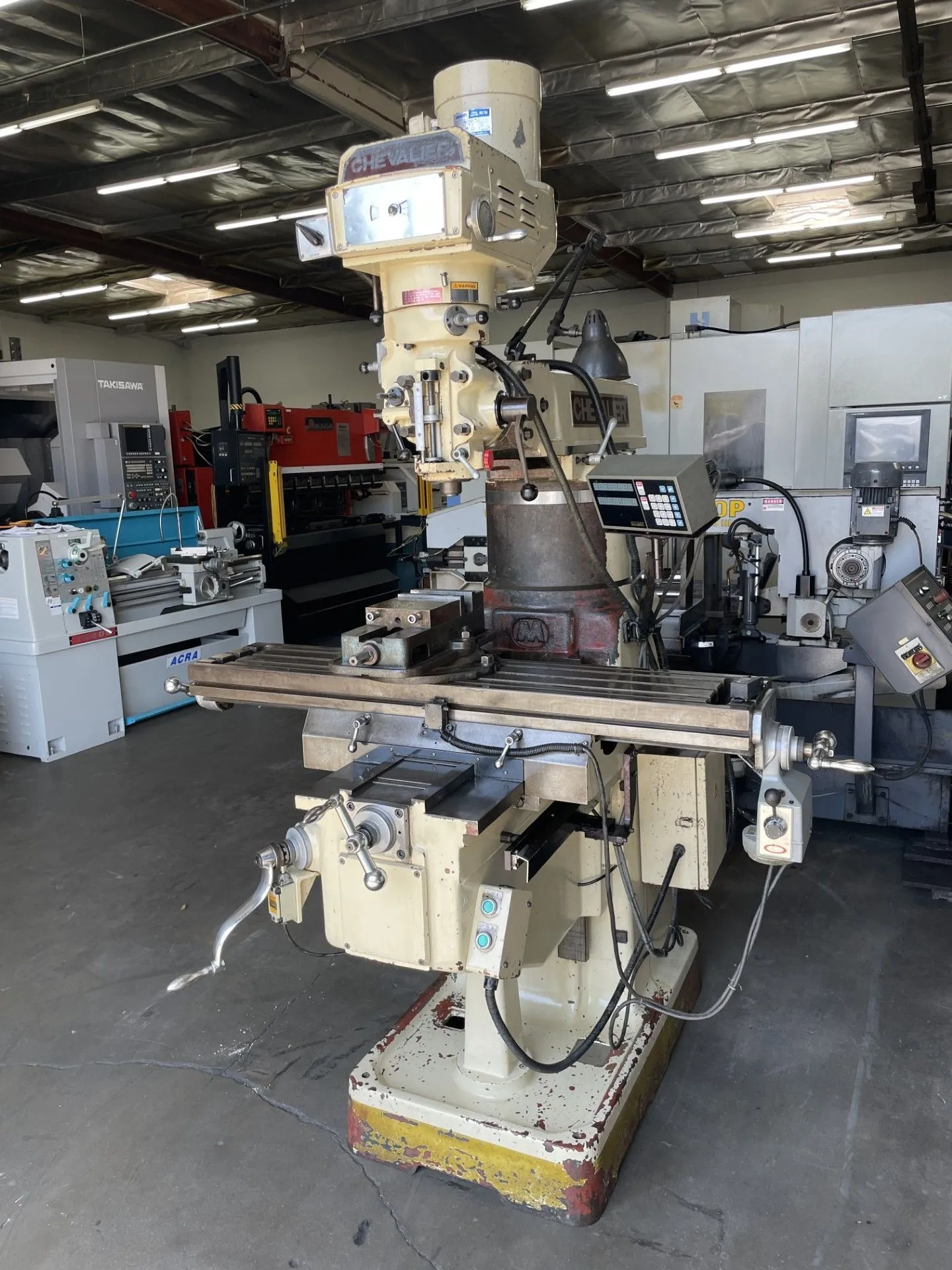

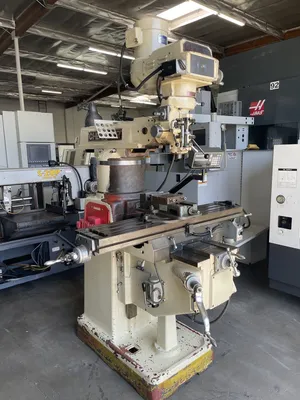

CHEVALIER FM-3KVH Vertical Mill, Model #8094, available in used condition. Features a 10" x 50" table size, ideal for precision milling tasks. Suitable for various industrial applications.
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 32.75" | 831.85 mm |
| Travel-Cross | 16.125" | 409.57 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Control | CNC | CNC |
| Dimensions | 104 x 79 x 85 | 104 x 79 x 85 |
| Weight | 3100 | 3100 |
CHEVALIER FM-3KVH Vertical Mill #8203 #1
SPECIFICATIONS:
TABLE SIZE: 10" x 50"
X-TRAVEL: 32-3/4"
Y-TRAVEL: 16-1/8"
QUILL TRAVEL: 5"
KNEE TRAVEL: 15-1/2"
SPINDLE MOTOR: 3 HP
SPINDLE SPEED: 60 - 4500 RPM
SPINDLE TAPER: R-8
SPINDLE NOSE TO TABLE: 0" - 17-1/4"
WEIGHT (APPROX.): 3,100 LBS.
DIMENSIONS (APPROX.): 104" x 79" x 85"
EQUIPPED WITH:

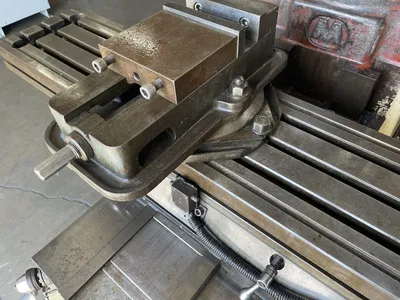

6" Mill Vise
One Shot Lube
Variable Speed Head
8" Riser
Servo X-Axis Power Feed
Digital Read Out
