USED KITAMURA MYCENTER 3

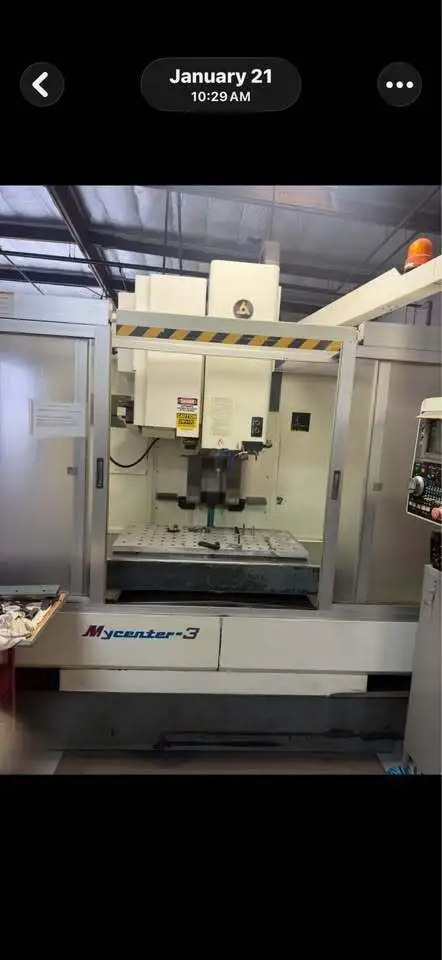

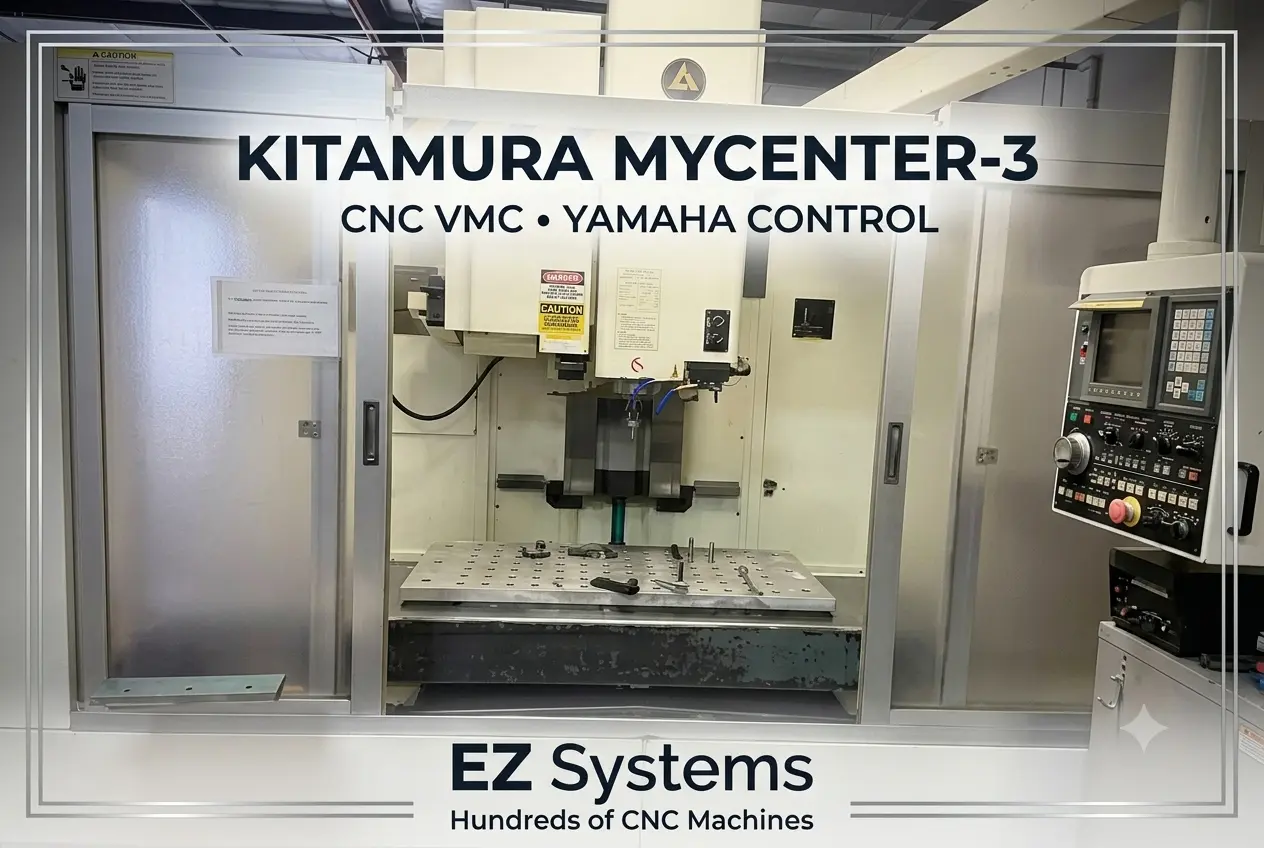

Kitamura Mycenter-3 CNC Vertical Machining Center with Yamaha Control, 30"" X-Axis Travel, 15,000 RPM Spindle, and BT-40 Tooling, FOB Lakewood, CA

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

Title: Kitamura Mycenter-3 CNC VMC Yamaha Control 30"" X-Travel 15,000 RPM Spindle

Brand: Kitamura

Model: Mycenter-3

Year:

Specifications

• Model: Mycenter-3


• Serial NO.: 20907


• Control: Yamaha Control


• Tooling: Red rolling tooling cart with BT40 taper toolholders included


• X-Axis Travel: 30""


• Y-Axis Travel: 18""


• Z-Axis Travel: 18""


• Table Size: Ranges from 16.1"" x 35.4"" up to 43.3"" x 20.6""


• Maximum Table Load: 1,100 lbs to 1,320 lbs (500 kg to 600 kg)


• Spindle Taper: CAT-40 or BT-40


• Spindle Speed: 20 RPM to 15,000 RPM


• Spindle Drive Motor: 15 HP to 20 HP (Continuous/AC)


• Tool Capacity: 20 to 30 Tools


• Tool Change Time: 1.2 to 2.2 seconds (tool-to-tool)


• Max Tool Weight: ~15.4 to 17.6 lbs (7 kg to 8 kg)


• Rapid Traverse (X/Y/Z): Up to 1,969 IPM / 1,969 IPM / 1,417 IPM (X/Y/Z)


• Cutting Feed Rates: 0 to 590 IPM

Description

Maximize your machining capabilities with the robust Kitamura Mycenter-3 CNC Vertical Machining Center. This Kitamura Mycenter-3 is a high-performance CNC Vertical Machining Center designed for precision and efficiency. Equipped with a reliable Yamaha Control, it offers excellent control over complex machining operations. Its generous X, Y, and Z-axis travels of 30"", 18"", and 18"" respectively, provide ample workspace for a variety of parts. The machine comes complete with a red rolling tooling cart and BT40 taper toolholders, ensuring you have the necessary accessories to get started immediately.

Key Features & Benefits
Key features include a versatile spindle with speeds ranging from 20 RPM to an impressive 15,000 RPM, powered by a 15 HP to 20 HP motor, suitable for diverse material applications. The machine supports CAT-40 or BT-40 spindle tapers and boasts a tool capacity of 20 to 30 tools with a rapid tool change time of 1.2 to 2.2 seconds. High rapid traverse rates up to 1,969 IPM on X/Y axes and 1,417 IPM on the Z-axis, combined with cutting feed rates up to 590 IPM, ensure efficient material removal and reduced cycle times.

Dimensions & Weight

• Physical Footprint: 112"" x 114"" (2,845 mm x 2,895 mm) x 110"" H (2,794 mm)


• Weight: Approximately 15,800 to 17,500 lbs (7,200 kg to 8,000 kg) lbs

Shipping & Location Details

Location:

This machine is offered FOB Lakewood, CA. Buyer is responsible for all applicable freight and rigging expenses.
