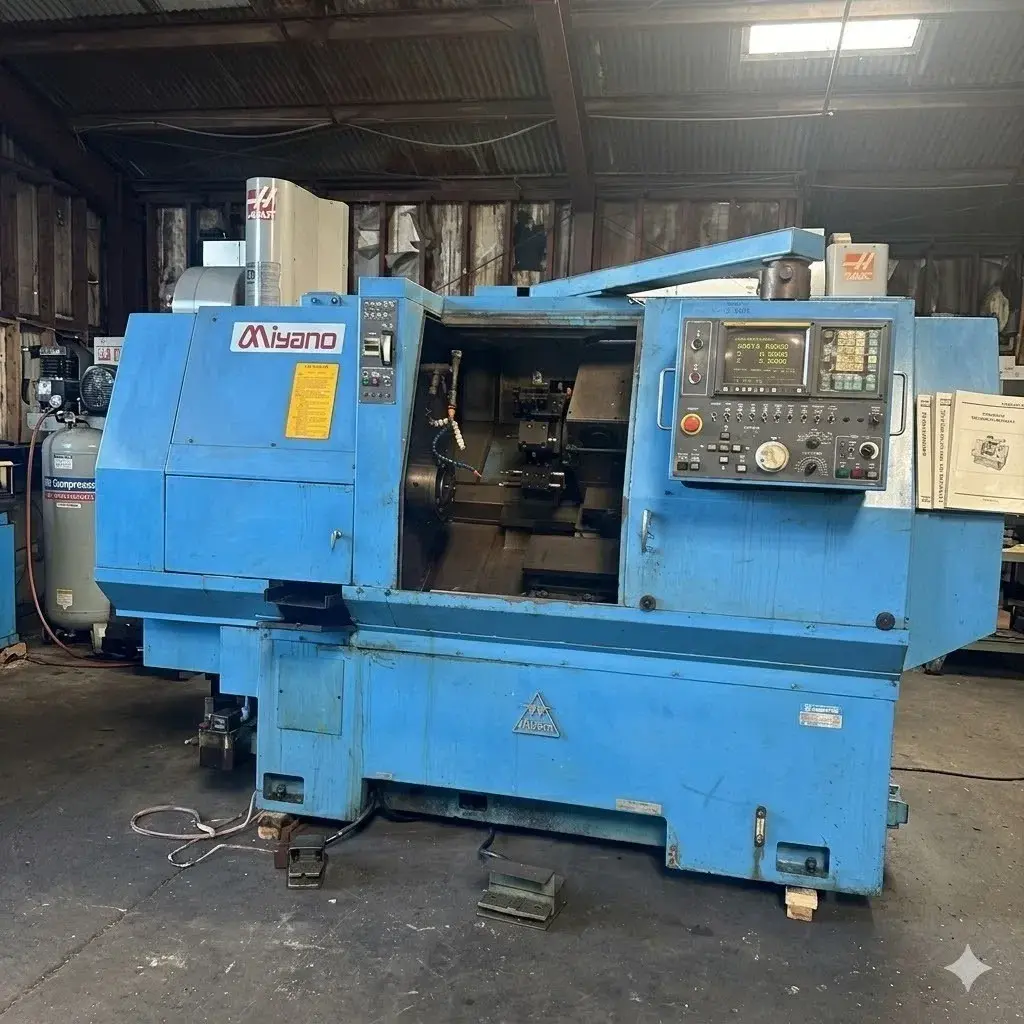

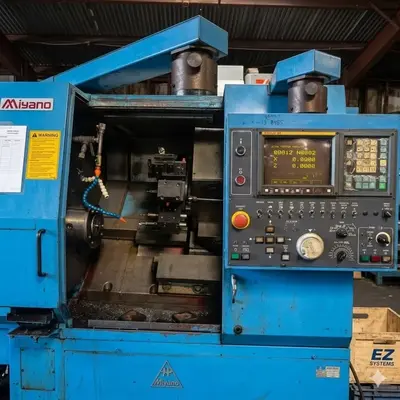

USED MIYANO JNC 60

This Miyano JNC-60 is a high-rigidity 2-axis production lathe equipped with the reliable Fanuc 0T control. Known for their "overbuilt" cast-iron construction, the JNC series is ideal for aggressive turning and heavy bar work. This unit features an A2-8 spindle nose and a 2.5" bar capacity, offering significantly more capability than smaller 42mm models.

TECHNICAL SPECIFICATIONS
Manufacturer Miyano
Model JNC-60
Year (Estimated) 1988
Control Fanuc 0T (Model B/C)
Bar Capacity 2.5" (63.5mm)
Chuck Size 10" (A2-8 Spindle Nose)
Number of Turret Positions 8 Stations
Max Swing Over Bed 20.47"
Max Turning Diameter 11.8"
Max Turning Length 19.6"
X-Axis Travel 7.5"
Z-Axis Travel 20.0"
Spindle Speed 3,000 RPM
Spindle Motor 20/14 HP
Approx. Dimensions 110" L x 68" W x 74" H
Approx. Machine Weight 9,500 lbs
CONDITION NOTES
Machine powers up successfully with no current control alarms.
Fanuc 0T screen is clear and responsive.
Shows typical shop wear for its age; solid candidate for a production shop.
Rigid cast iron base for vibration-free cutting.
FAIR SELL PRICE ANALYSIS
Fair Market Value: $8,500 – $10,500

Replacement Cost (New Equiv): $95,000+

Asking Price: 8,500

SHIPPING & RIGGING

Location: Costa Mesa, CA

Loading: Professional rigging and loading is required. We can provide a quote for loading onto your truck or coordinate with local OC riggers.

Freight: Buyer is responsible for all shipping costs. Freight shipping quotes available upon request.

TRADE-INS & CONSIGNMENTS
We are always looking for quality used CNC machinery (Haas, Mazak, Mori Seiki, Okuma, Miyano). If you have surplus equipment or are looking to upgrade, contact us for a fair valuation.
