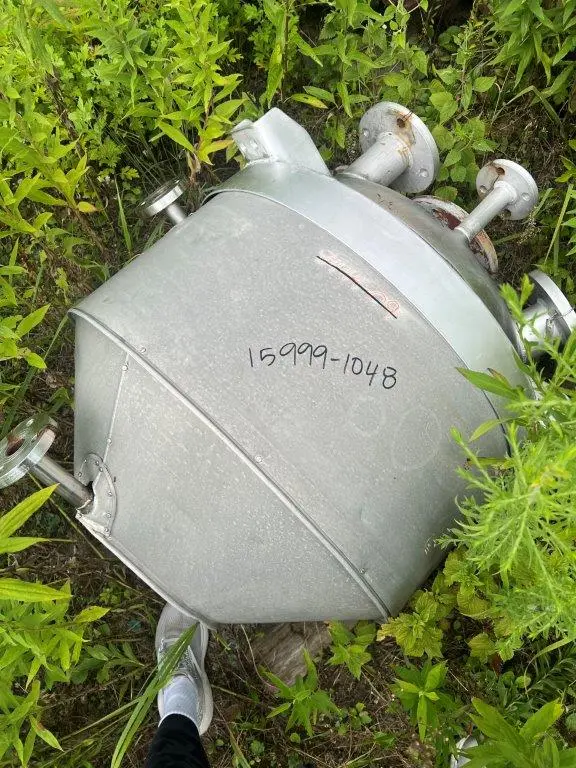

Used Approximately 25 Gallon Stainless Steel Reactor Body
Capacity: 25 gallons
Dimensions: 24" dia. x 15" straight side
Dished heads
Internal rated 30 psi
Lug-mounted
Additional information: 5" agitator mount, 3", 3-1/2", 5", 1-1/2", 3-1/2" top openings. 1-3/4" bottom outlet.
| Capacity | 25 gal | 94.6 L |
| Type of stainless | Stainless Steel | Stainless Steel |
| Internal Pressure | 30 PSI | 2.1 bar |
| Diameter | 24" | 609.6 mm |
| Straight Side | 15" | 381 mm |
| Type Of Heads | Dished | Dished |
| Legs/Lugs | Lug-mounted | Lug-mounted |
| Dimensions | 24 dia. x 15 straight side | 24 dia. x 15 straight side |
