USED COE CPRF-536 / CPPS-400-36 / CPCSR-20036 / CPCC-20036
Overview
Description
20k Servo Feed Line with Roll-Over Loader Guide with ServoMaster Controls
Specifications
| Dimensions | 88" X 79" (RL X FB) X 68" HIGH | 88" X 79" (RL X FB) X 68" HIGH |
|---|
COIL CRADLE CAPACITY: 20,000 LBS.
MAX. COIL WIDTH: 36" (RATED) - (APPROX. 48" ACTUAL MEASUREMENT)
MAX. COIL O.D.: APPROX. 72"
COIL I.D. RANGE: NO LIMIT
ROLL-OVER GUIDE: 36" (RATED) - (APPROX. 48" ACTUAL MEASUREMENT)
COE CPPS-400-36 STRAIGHTENER: APPROX. .020" TO .344" RANGE CAPACITY
MAX. MATERIAL WIDTH: 36" - (RATED FOR .300" AT 36" WIDE)
NUMBER OF BREAKER ROLLS: 7 (four over three)
PINCH ROLL SIZE: approx. 6" dia.
BREAKER ROLL SIZE: approx. 4" dia.
STANDARD SPEED: 0-250 fpm
COE CPRF-536 SERVO FEEDER: 36" RATED WIDTH (MAY HANDLE UP TO 40" WIDE)
MATERIAL CAPACITY: .280" AT 36" WIDE - APPROX. .313" MAX. CAPACITY WITH NARROWER MATERIAL
DIAMETER OF ROLLS: 5" DIA.
MAX. VELOCITY: 409 FPM

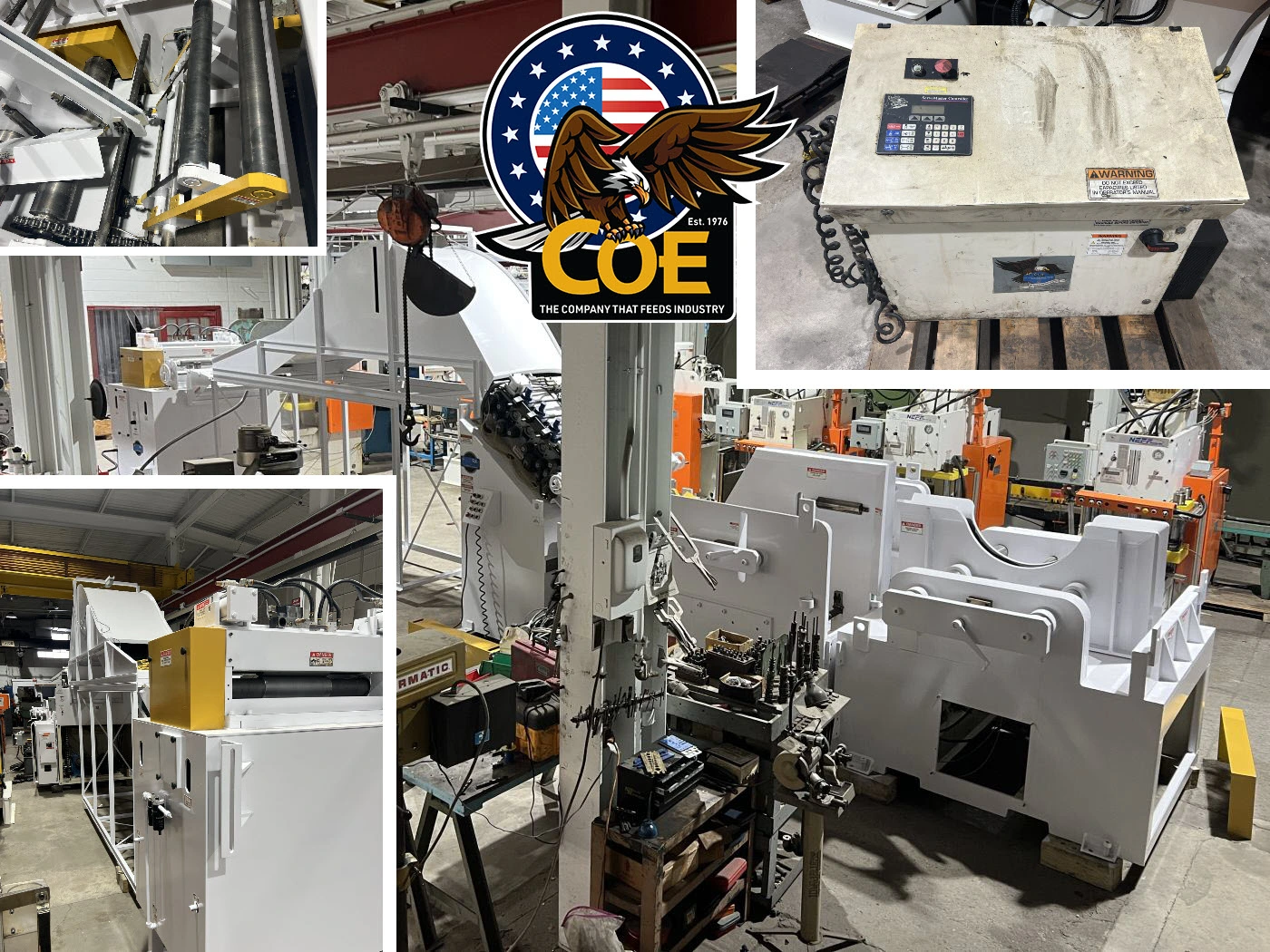

Note: THIS FEEDLINE IS MADE UP OF MACHINES 6604, 6605 AND 6606, PHOTOS ARE OF SISTER FEED LINE #8124
Location: This Used COE CPRF-536 / CPPS-400-36 / CPCSR-20036 / CPCC-20036 Servo Feed Line is located in our Jackson, MI Falahee Building
Equipped With
SERVOMASTER CONTROLLER
