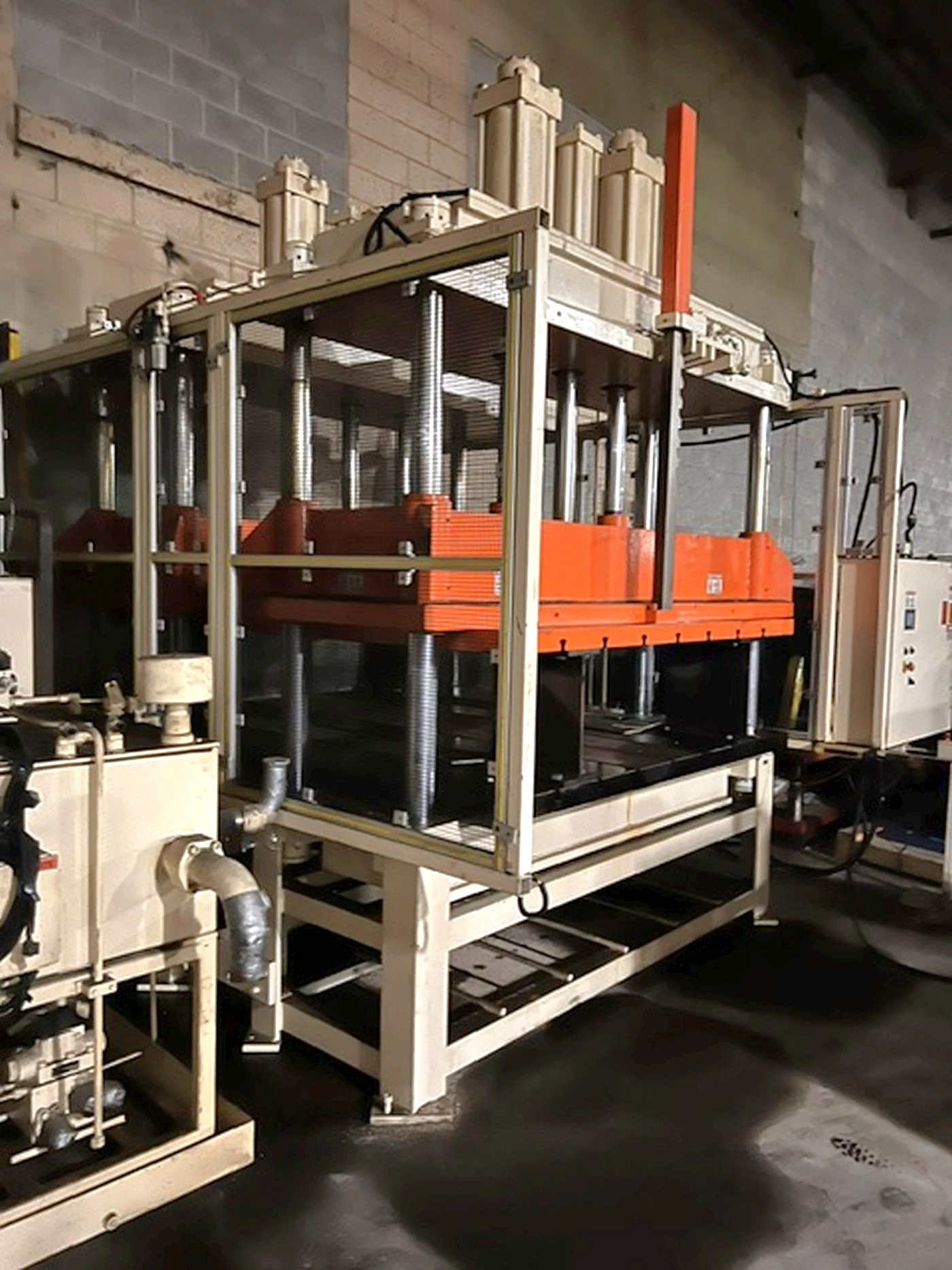

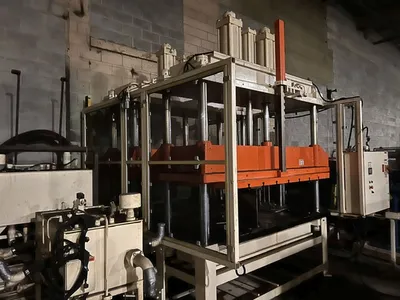

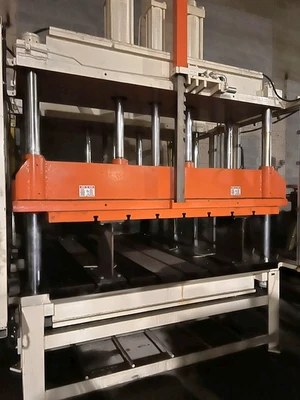

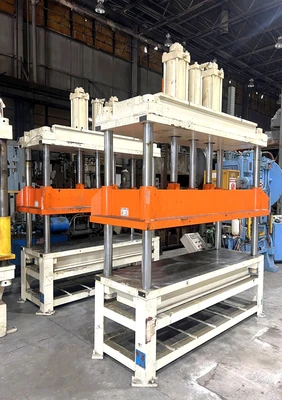

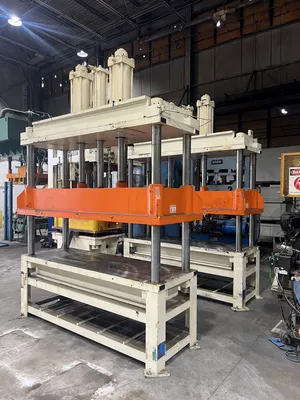

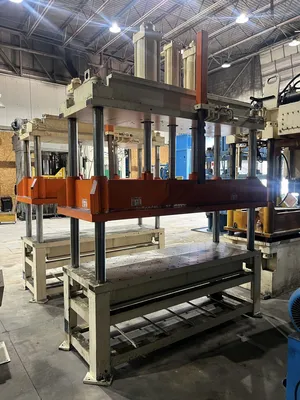

USED ICON ICON PRESS
Overview

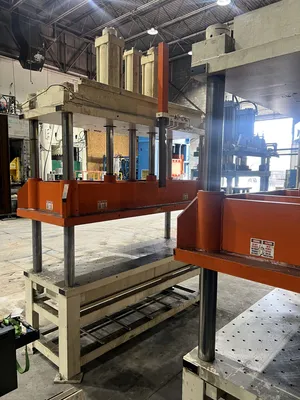

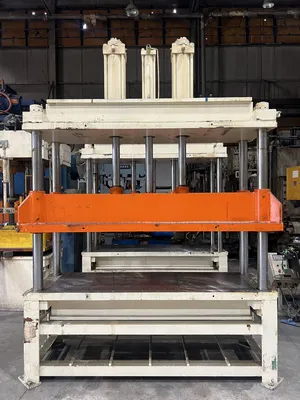

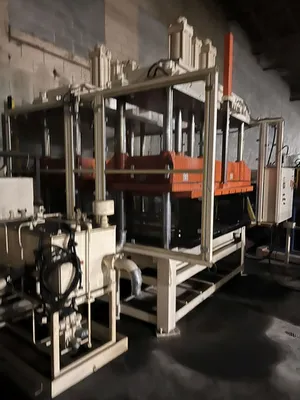

16" Stroke, 40" Daylight, 86" x 100" Bed Area When Combined, 88.5" x 33" when 150 Ton Presses, Allen-Bradley MicroLogix 1400 Controls
Specs
MAX. CAPACITY: (2) 150 TON / 300 TONS
MAX. STROKE: 16"
MAX. DAYLIGHT: 40"
OVERALL BED & RAM AREA: 86" X 100" (WHEN COMBINED) OR 100" X 33" (RL X FB)
DISTANCE BETWEEN POSTS: 88.5" X 20.5" (RL X FB)
USABLE BED & RAM AREA: 88.5" X 33" ON EACH PRESS

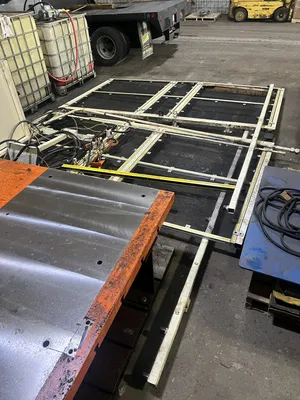

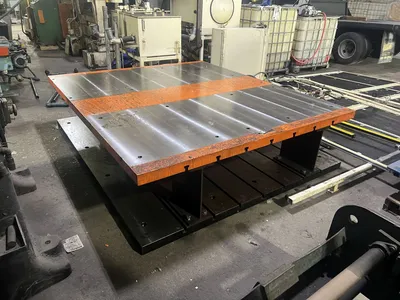

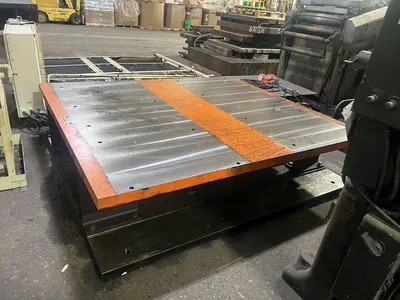

BOLSTER PLATE FOR 300 TON PRESS: 86" X 100" (RL X FB) X 3" THICK ON RAM AND BED WITH RISERS
SPEEDS: __
CYLINDERS SIZE: (2) 8" DIA. / (1) 6" DIA.
RAM RODS SIZE: (2) 3.5" DIA. / (1) 3" DIA.
4 COLUMN / POSTS SIZE: 4" DIA.
FLOOR TO BED HEIGHT: 36.5"

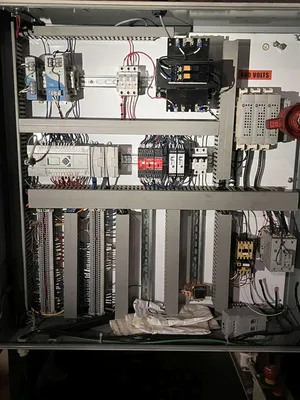

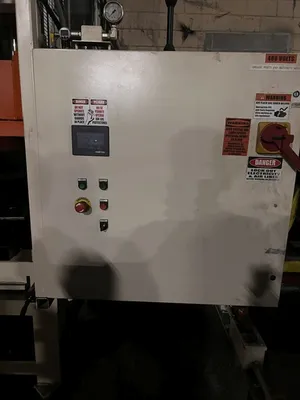

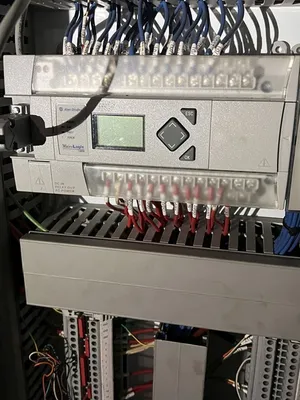

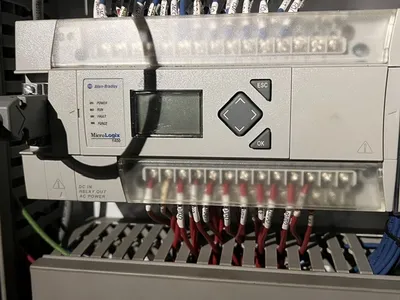

PRESS CONTROLS: ALLEN-BRADLEY MICROLOGIX 1400 CONTROLLER

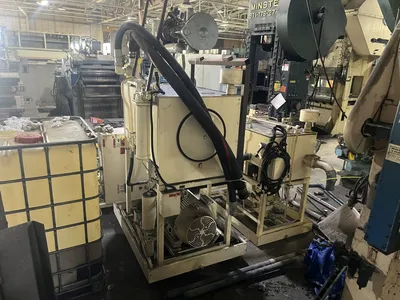

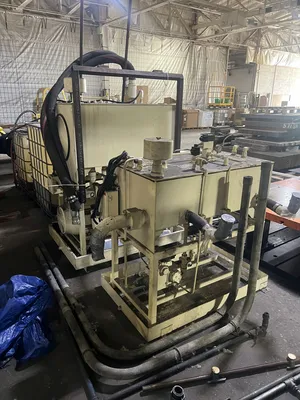

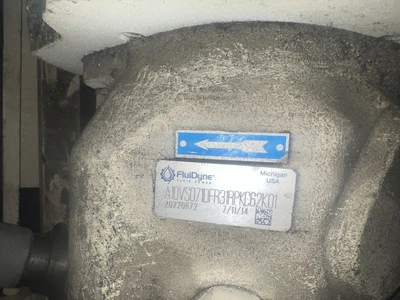

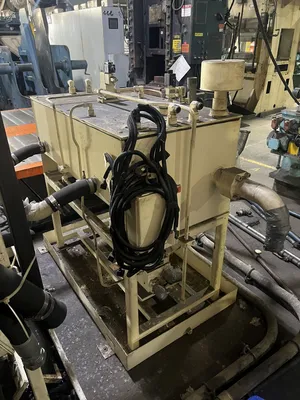

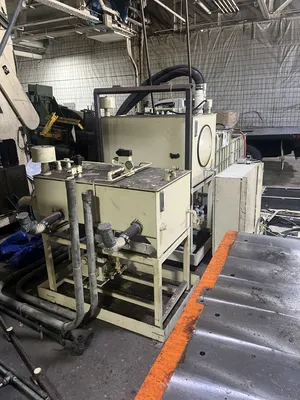

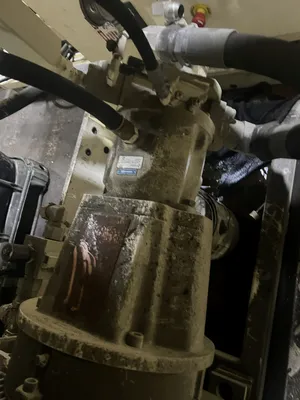

HYDRAULIC SYSTEM / UNIT: FLUIDYNE HYDRAULIC PUMP MODEL A10VS071DFR31RPKC62K01

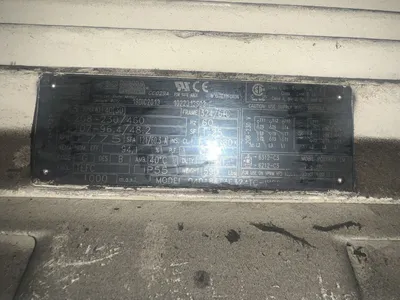

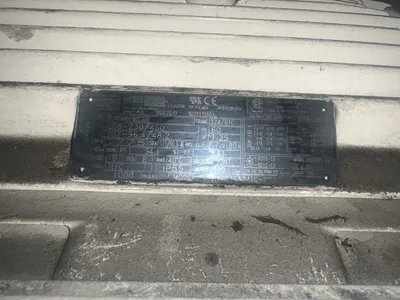

ELECTRIC MOTOR: 40 HP 208-230/460V-3-60 WEG MOTOR | 107 - 96.4 / 48.2 AMPS
ELECTRICAL NOTE: __
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
