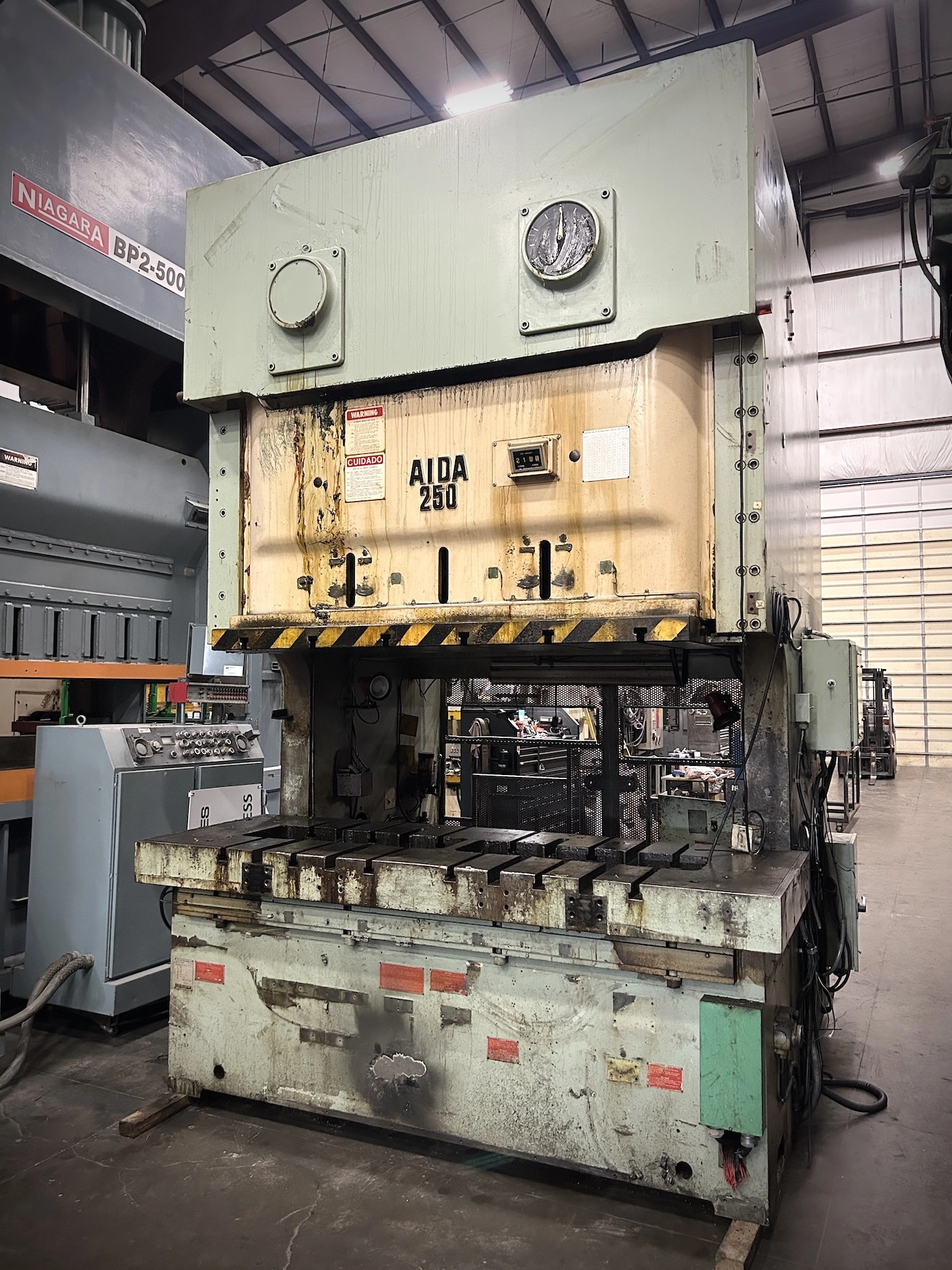

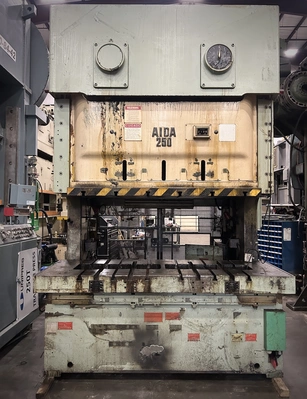

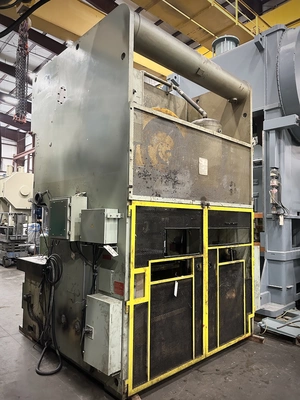

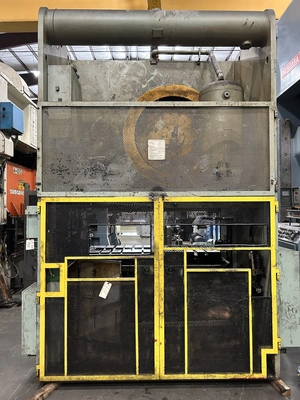

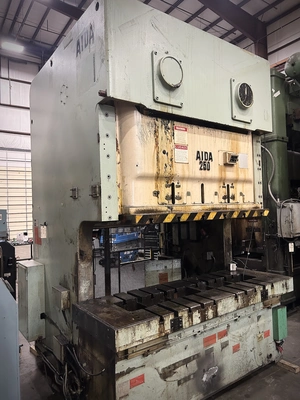

USED 1987 AIDA PRESSES AIDA NC2-250(2) PRESS
Overview
Description
11" STR, 21.7" DH, 106.3X36.2 BED, 14-27 SPM, 4.7" ADJ

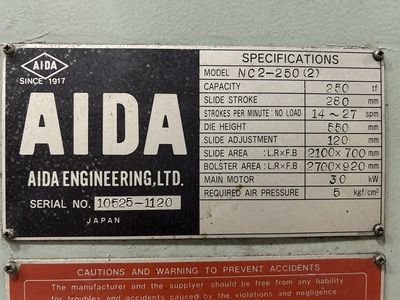

Specifications
| Dimensions | 134" H X 124" RL X 179" FB | 134" H X 124" RL X 179" FB |
|---|---|---|
| Weight | 78,000 LBS | 78,000 LBS |
capacity: 275 us ton
blanking capacity: 220 us ton
stroke: 11"
max die height: 21.7" sdau over 7.1" h bolster

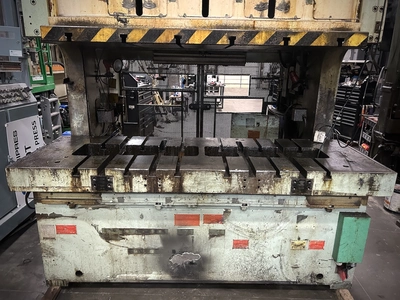

bed area: 106.3" x 36.2" (rl x fb)
speed: 14 - 27 spm
slide adjustment: 4.7" motorized
slide area: 82.7" rl x 27.6" fb (t-slotted)
bolster plate: 7.1" h x 106.3" rl x 36.2" fb (t-slotted)
distance between uprights: 86.2"
distance floor to bed: 43.3"
clutch: aida air clutch / brake combination

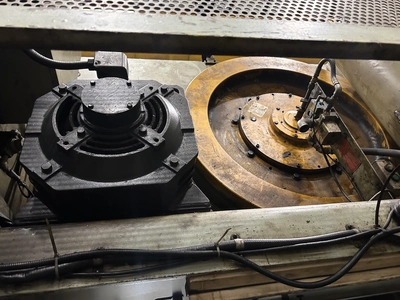

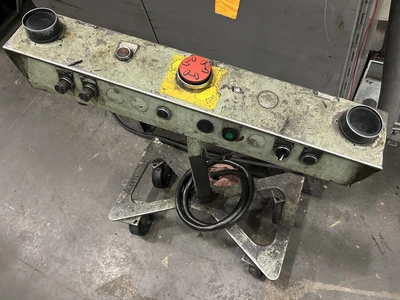

electrics: 40 hp 1750 rpm 480v-3-60 motor & aida press control. will include new cieco press control for reconditioned price.
Location: This Used Press is Located in Our Columbia, TN Warehouse
Equipped With
FLOOR STANDING, AIR COUNTERBALANCES, HIGHLY RIGID FRAME TO MINIMIZE DEFLECTION, BALL & SOCKET CONNECTIONS, HYDRAULIC OVERLOAD PROTECTION SYSTEM, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL
