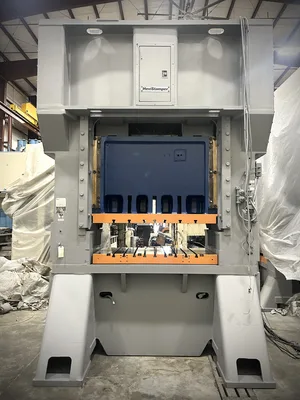

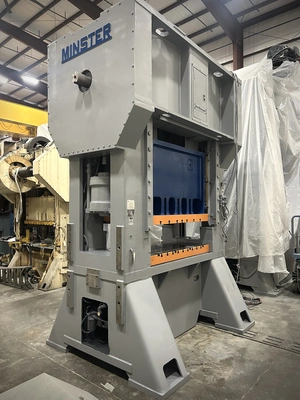

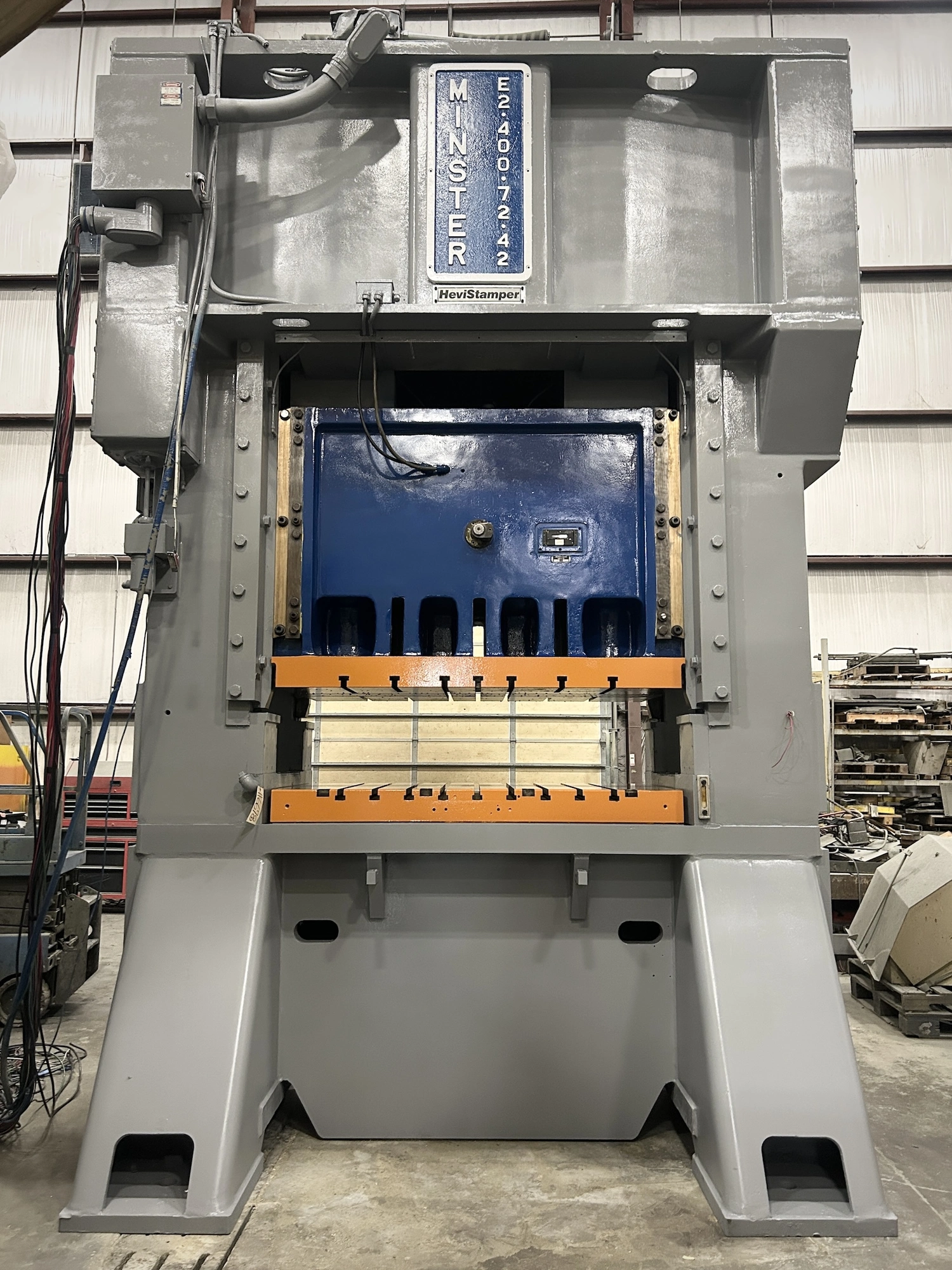

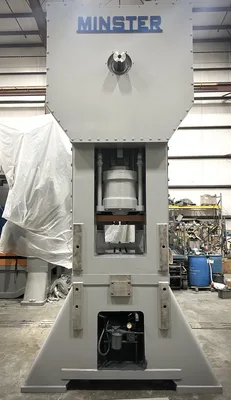

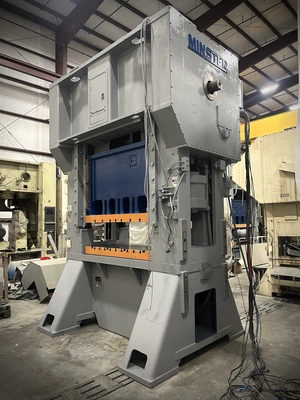

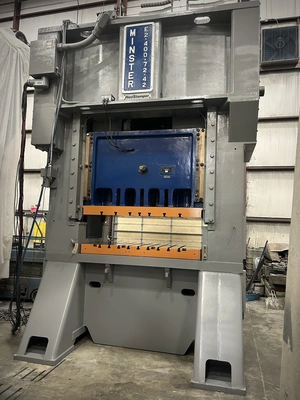

6" , 26" SH, 72 X 42 BED, VS 0-120 SPM, 26"WW, AC, 1986.
| Dimensions | 162" X 96" (RL X FB) X 204" HIGH - 13'6" X 8' (RL X FB) X 17' HIGH | 162" X 96" (RL X FB) X 204" HIGH - 13'6" X 8' (RL X FB) X 17' HIGH |
| Weight | 104,000 LBS | 104,000 LBS |

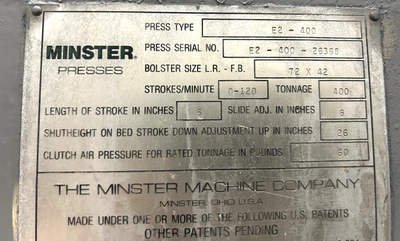

CAPACITY: 400 TONS
STROKE: 6"
SHUT HEIGHT TO BED: 26" SDAU
SPEED: 0 - 120 SPM (VARIABLE)
RAM ADJUSTMENT: 6" (MOTORIZED)
BED AREA: 72" X 42" (RL X FB)
SLIDE AREA: 74" X 42" (RL X FB) T-SLOTTED - wrist pins/saddles addressed as required.
WINDOW SIZE: 26" WIDE X 20" HIGH

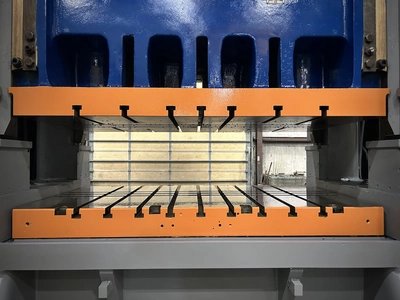

BOLSTER PLATE SIZE: 72" X 42" (RL X FB) X 6" THICK T-SLOTTED BOTH DIRECTIONS
DISTANCE BETWEEN GIBS: 74"
FLOOR TO BED HEIGHT: 55"
AIR CLUTCH: MINSTER AIR CLUTCH & BRAKE ASSEMBLY - new linings and other parts as required

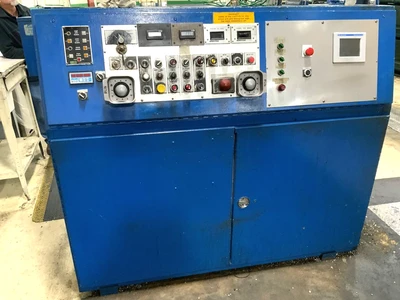

PRESS CONTROLS: cieco 1100r6 (resolver based) included. upgrade to Cieco automator ii - add $ 15 k.
electric motor: 75 hp 1755 rpm 240/480v-3-60 eddy-current drive
other additions:: frame line-bored, crankshaft checked for cracks and straightness. new main bearings
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse
AIR COUNTERBALANCEs - new seals & bushings aUTO OIL LUBRICATION SYSTEM - new motor & pump ram - squared & gibbs machined back flat clutch & brake - all perishables replaced new pneumatic system - piping & flr's replaced bolster plate machined flat as required mains & strap bushings either new or within tolerance. add: foot pads. 6 month major parts warranty clean and paint per customer requirement
