USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Description

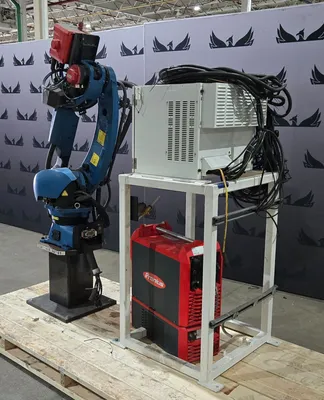

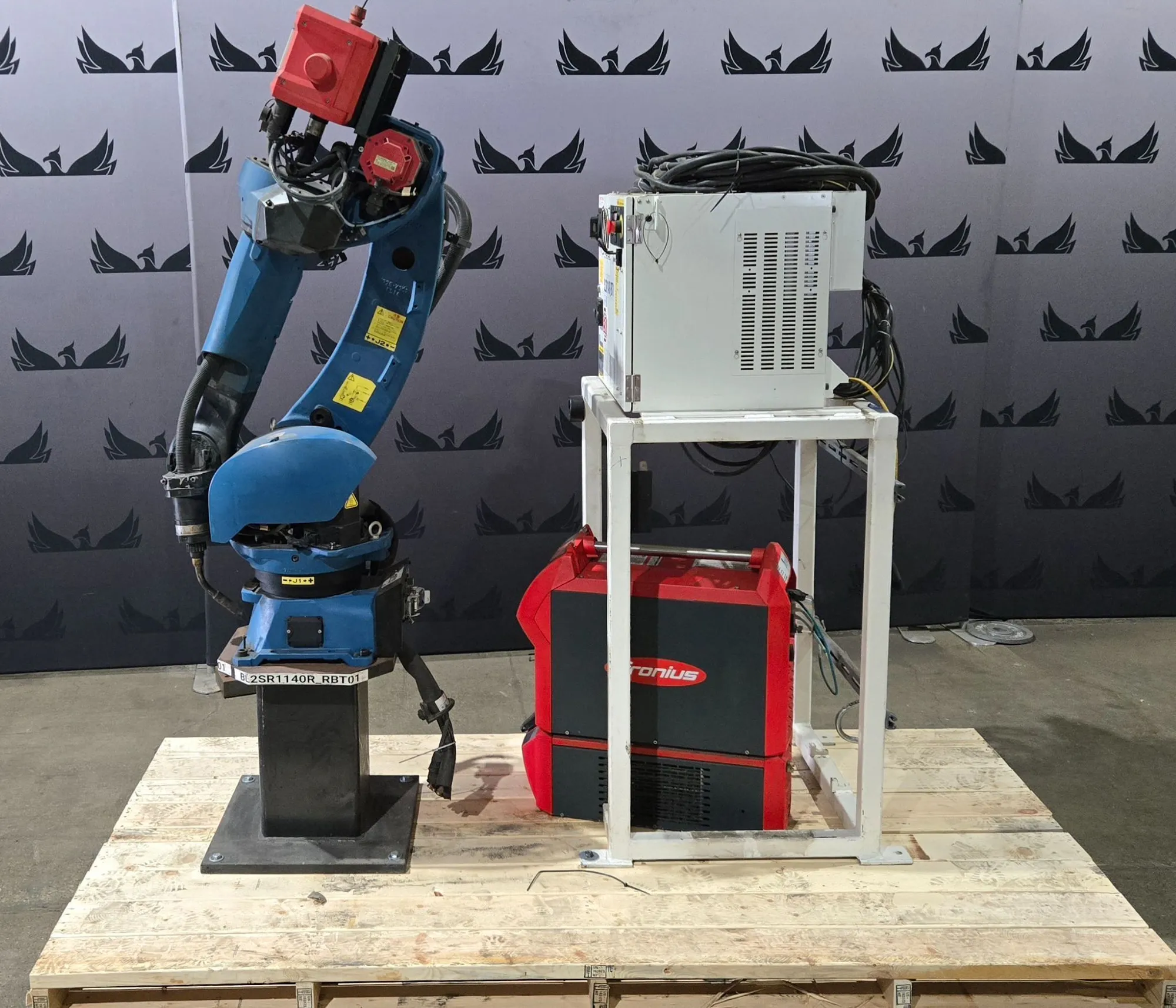

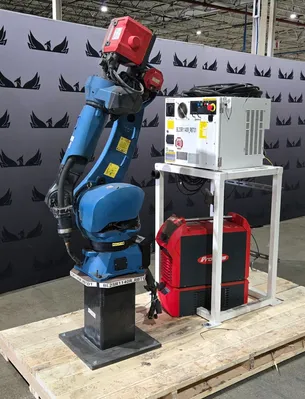

This listing is for a USED FANUC Arc Mate 120iD complete system. It includes an R-30iB Plus controller, iPendant teach pendant, Fronius TPS 400i welding unit, and 20-inch riser, configured to support robotic arc welding operations with 25 kg payload capacity, approximately 1831 mm reach, and multi-voltage three-phase input capability.
Specifications
| Dimensions | 96x48x77 | 96x48x77 |
|---|---|---|
| Weight | 1592lbs | 1592lbs |
Manufacturer: FANUC

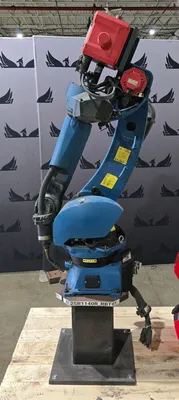

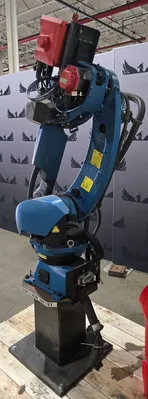

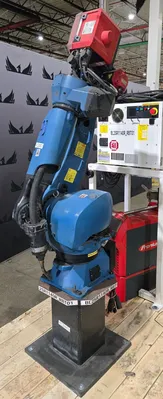

Robot Model: Arc Mate 120iD
Robot Type: 6-axis articulated robot
Robot Type Code: A05B-1228-B201
Robot Serial Number: R20Z20240
Robot Date: 2020-12
Robot Weight: 250 kg

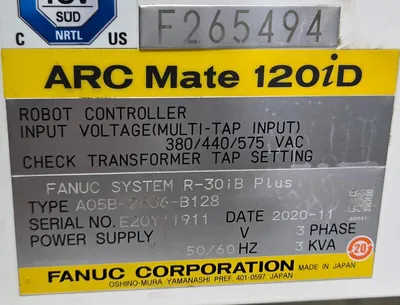

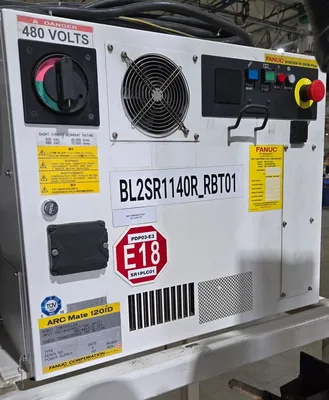

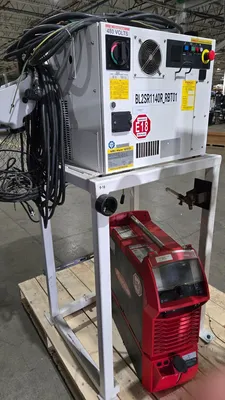

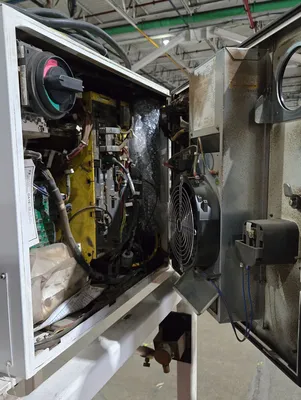

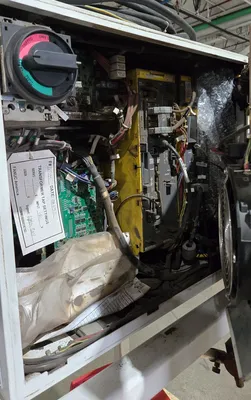

Controller Model: R-30iB Plus
Controller Type: A05B-2636-B128
Controller Serial Number: E20Y1911
Controller Input Label: 380 / 440 / 575 VAC (multi-tap)

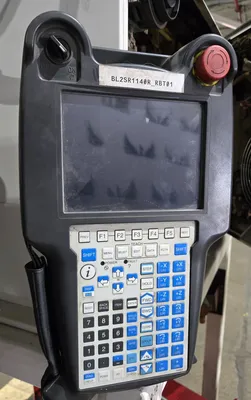

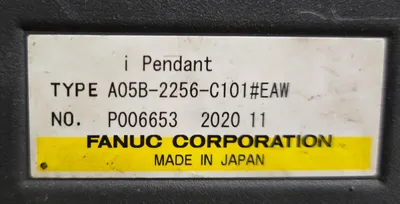

Teach Pendant: Included (iPendant A05B-2256-C101#EAW)
Pendant Serial Number: P006653
Pendant Date: 2020-11
Condition: USED
Hours: 17398
YOM: 2020
Payload Capacity: 25 kg
Reach: 1831 mm
Mounting Configuration: Floor-mounted (upright)

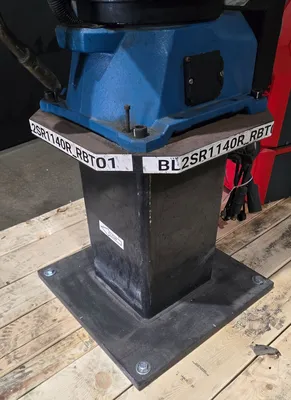

Mounting: 20-inch riser
Phase: 3 Phase
Frequency: 50 / 60 Hz
Rated Power: 3 kVA

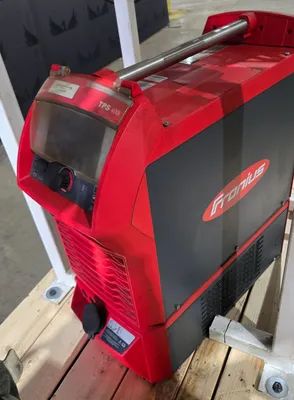

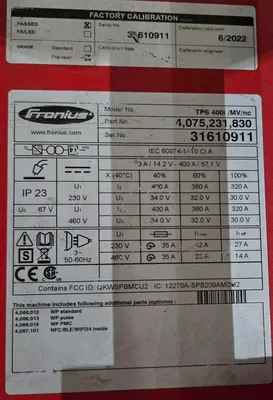

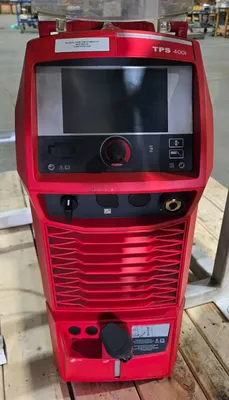

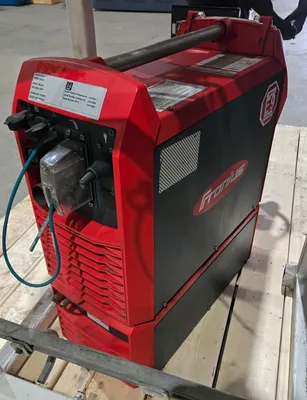

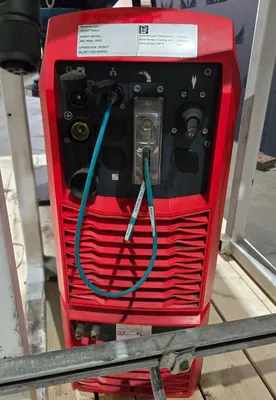

Weld Power Source: Fronius TPS 400i MV/nc
Weld Power Source Part Number: 4.075.231.830
Weld Power Source Serial Number: 31610911
Weld Output Current: Up to 400 A
Protection Rating (Welder): IP23

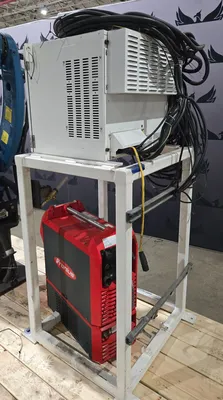

Included Equipment: Robot, controller, iPendant, Fronius weld unit, interconnect cables
