USED 2016 MAZAK QTS 350M
Overview
Description

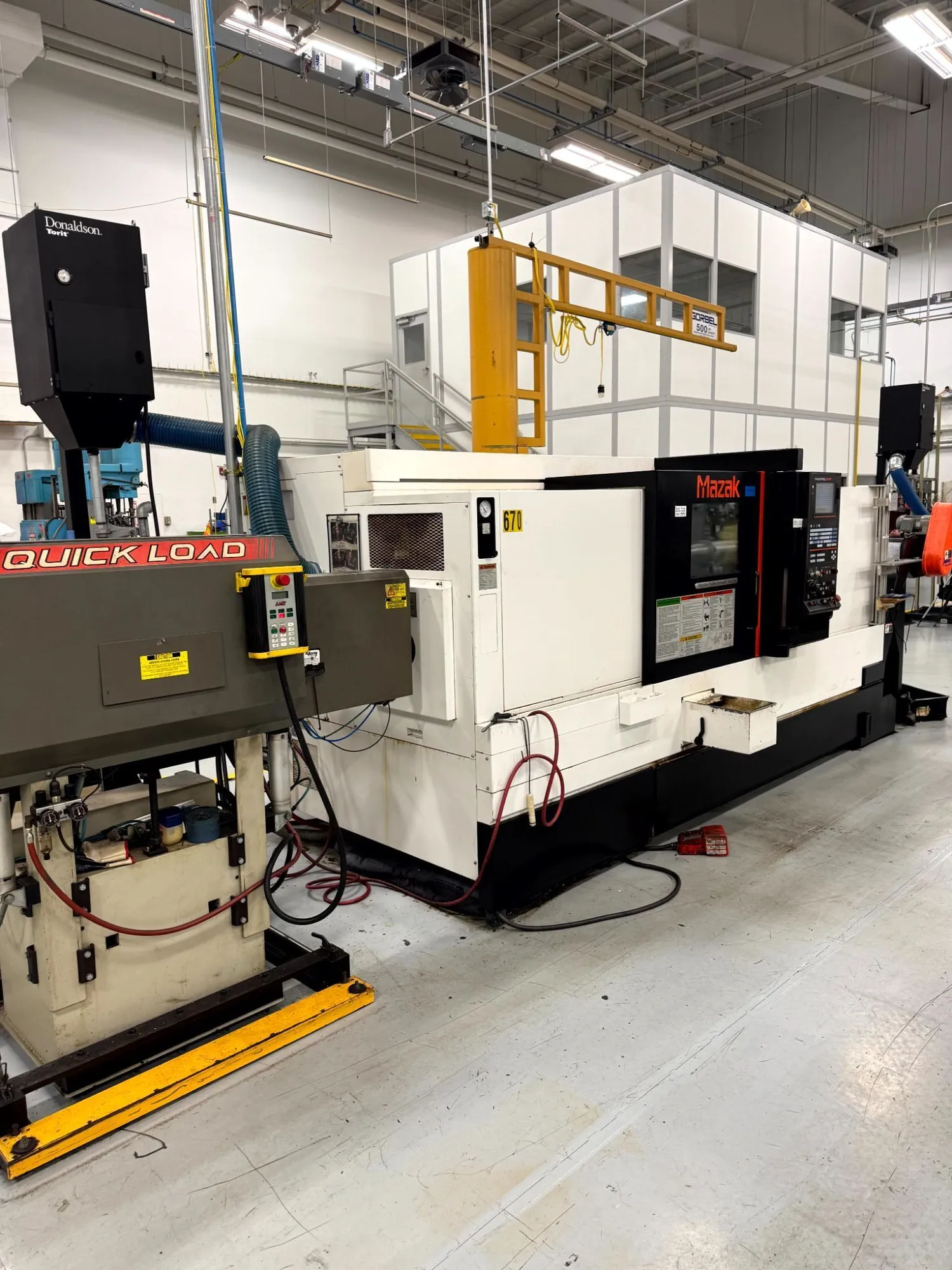

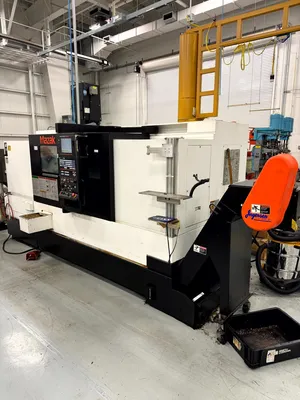

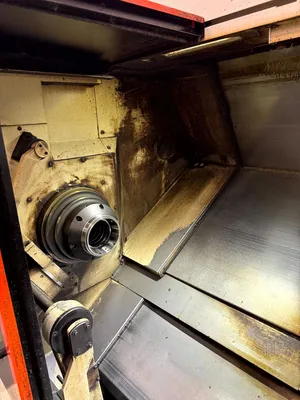

2016 MAZAK QTS 350M with milling, used CNC lathe multi-axis. Features include a 28.35" maximum swing, 16.5" max turning diameter, 4.4" spindle bore, and a 12" hydraulic chuck. Equipped with MAZATROL SMART CONTROL, mist collector, 213 PSI high-pressure coolant, and LNS Quick Load Barfeeder
Specifications
| Maximum Swing | 28.35" | 720.09 mm |
|---|---|---|
| Max Turning Diameter | 16.5" | 419.1 mm |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4" | 4.4"/ 4" |
| Tail Stock/Sub Spindle | TAILSTOCK | TAILSTOCK |
| Maximum Cutting Length | 48.67" | 1,236.2 mm |
| X-Axis Travel (X1, X2, X3) | 10.38" | 10.38" |
| Z-Axis Travel (Z1, Z2, Z3) | 53.13 | 53.13 |
| Main Spindle Chuck Size | 12" | 304.8 mm |
| Main Spindle Chuck Type | Hydraulic | Hydraulic |
| Main Spindle Bore Diameter | 4.4" | 111.76 mm |
| Main Spindle Maximum Bar Work | 4" | 101.6 mm |
| Main Spindle Speed | 3,300 RPM | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 | 40 |

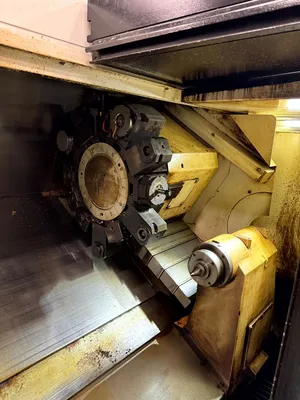

| Turret Tool Positions 1, 2 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 | 10 |
| Chip Conveyor | Yes | Yes |
| Tool Eye Automatic Front Spindle | Yes | Yes |
| High Pressure Coolant System (PSI) | 213 | 213 |
| Control | CNC | CNC |
| Weight | 15,218 lbs | 15,218 lbs |
Equipped With

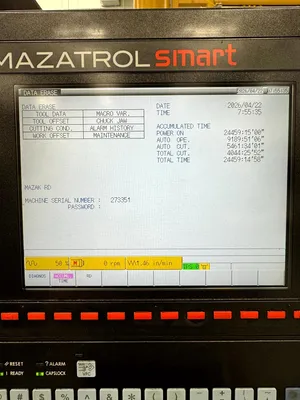

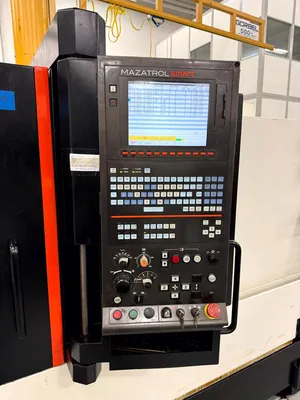

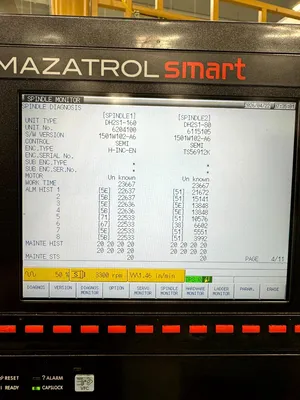

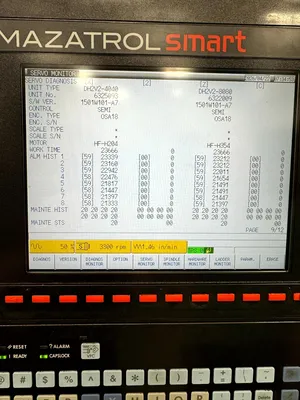

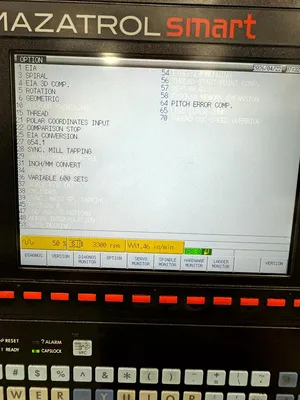

MAZATROL SMART CONTROL
12″ HYD. 3-JAW CHUCK W/ 4.0″ HOLE
AUTO PART CATCHER
MIST COLLECTOR
HIGH PRESSURE COOLANT - 213 PSI
AUTOMATIC CHUCK JAW OPEN/CLOSE
LAN PORT
MT CONNECT
INCH/METRIC CONVERSION
EIA/ISO CONVERSION
REMOVE SPINDLE CHUCK
PROGRAMMING SOFTWARE
HAINBUCH COLLET/CHUCK WORK HOLDING SYSTEM
BAR FEEDER INTERFACE

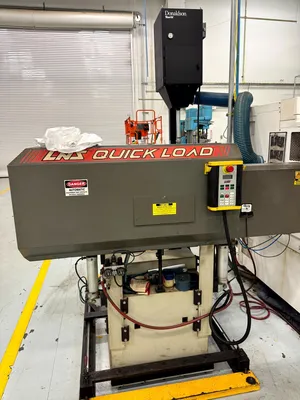

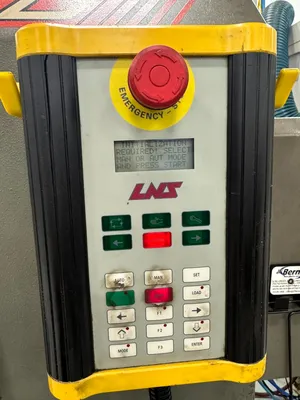

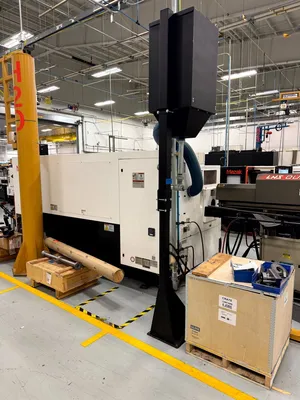

LNS BAR FEEDER
CHIP CONVEYOR
