USED 2020 MAZAK QT 250MY/ SMOOTH G
Overview
Description

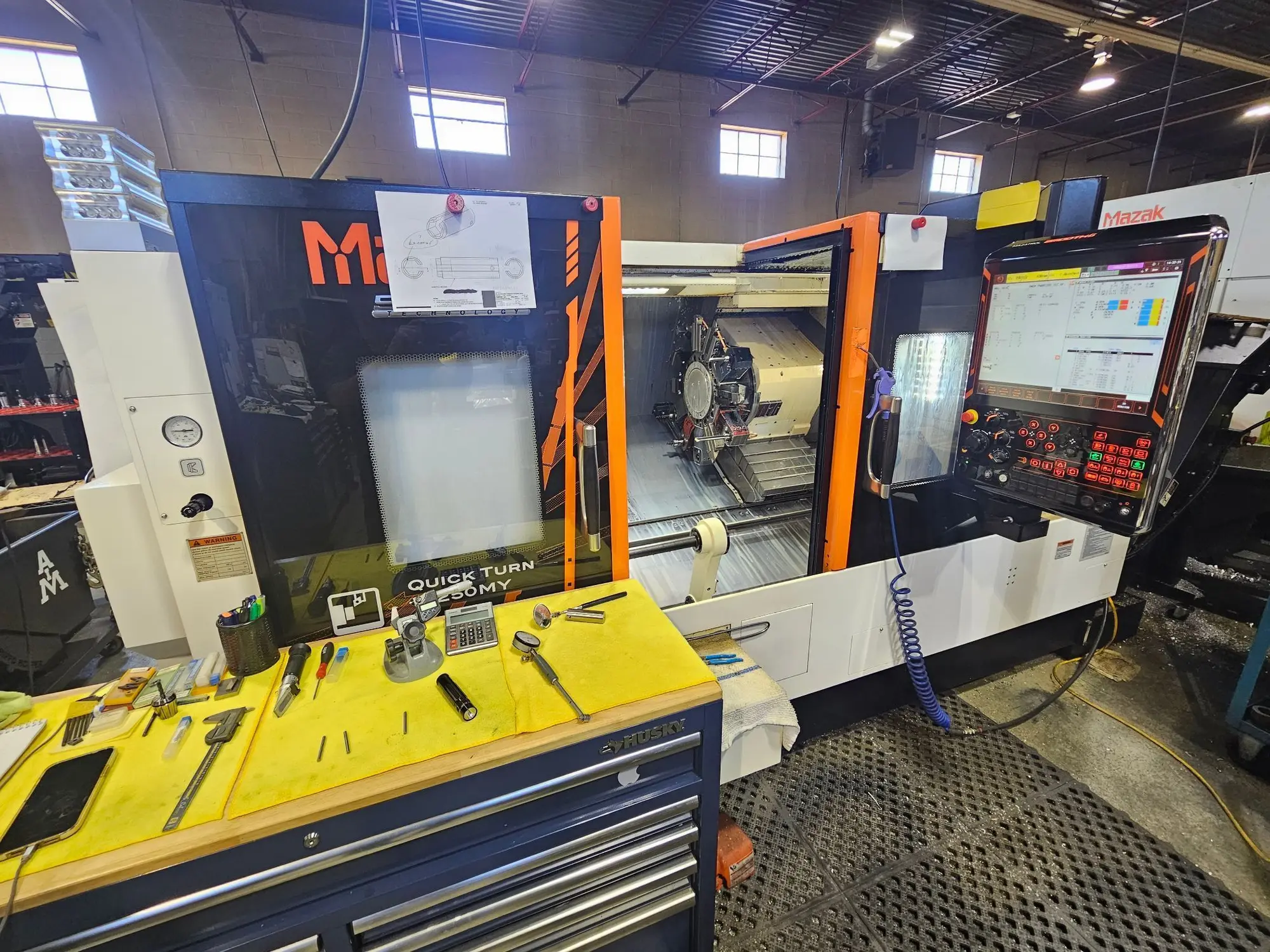

2020 MAZAK QUICKTURN 250MY CNC lathe, equipped with MAZATROL SMOOTH G, Y-axis, 10" hydraulic chuck, and more. Features 27.36" maximum swing, 14.96" max turning diameter, and 4,000 RPM spindle speed. Ideal for aluminum machining. ONLY 882 CUT HOURS!
Specifications
| Maximum Swing | 27.36" | 694.94 mm |
|---|---|---|
| Max Turning Diameter | 14.96" | 379.98 mm |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.15 | 3.5"/ 3.15 |
| Tail Stock/Sub Spindle | Tail Stock | Tail Stock |
| Maximum Swing Over Cross Slide | 26.5" | 673.1 mm |
| Maximum Cutting Length | 39" | 990.6 mm |
| X-Axis Travel (X1, X2, X3) | 9.21" | 9.21" |
| Z-Axis Travel (Z1, Z2, Z3) | 42.9 | 42.9 |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | 360° | 360° |
| Main Spindle Chuck Size | 10" | 254 mm |
| Main Spindle Chuck Type | Hydraulic | Hydraulic |
| Main Spindle Bore Diameter | 3.5" | 88.9 mm |
| Main Spindle Maximum Bar Work | 3.15" | 80.01 mm |
| Main Spindle Speed | 4,000 RPM | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 | 35 |
| Turret Tool Positions 1, 2 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 | 10 |
| Bar Feed | Yes | Yes |
| Parts Catcher | No | No |
| Chip Conveyor | Yes | Yes |
| Milling Spindle Synchronous Tapping | Yes | Yes |
| Tool Eye Automatic Front Spindle | Yes | Yes |
| High Pressure Coolant System (PSI) | 213 | 213 |
| Rapid Traverse, X-Axis | 1181 | 1181 |
| Rapid Traverse, Y-Axis | 826 | 826 |
| Rapid Traverse, Z-Axis | 1299 | 1299 |
| Control | CNC (MAZATROL SMOOTH G) | CNC (MAZATROL SMOOTH G) |
| Dimensions | 139.76" X 78.54" X 73.11" | 139.76" X 78.54" X 73.11" |
| Weight | 14,500 lbs | 14,500 lbs |
Equipped With
MAZATROL SMOOTH G
213 PSI COOLANT THRU
Y-AXIS
MILLING TOOL (5000 RPM)
PROGRAMMABLE TAILSTOCK
10" 3-JAW HYDRAULIC CHUCK
AUTOMATIC TOOL PRESETTER
C-AXIS
CHIP CONVEYOR
SCALE FEEDBACK
SYNCHRONIZED MILL TAPPING
***** ONLY 882 CUT HOURS!***
*****75% MACHINED MOSTLY ALUMINUM****
