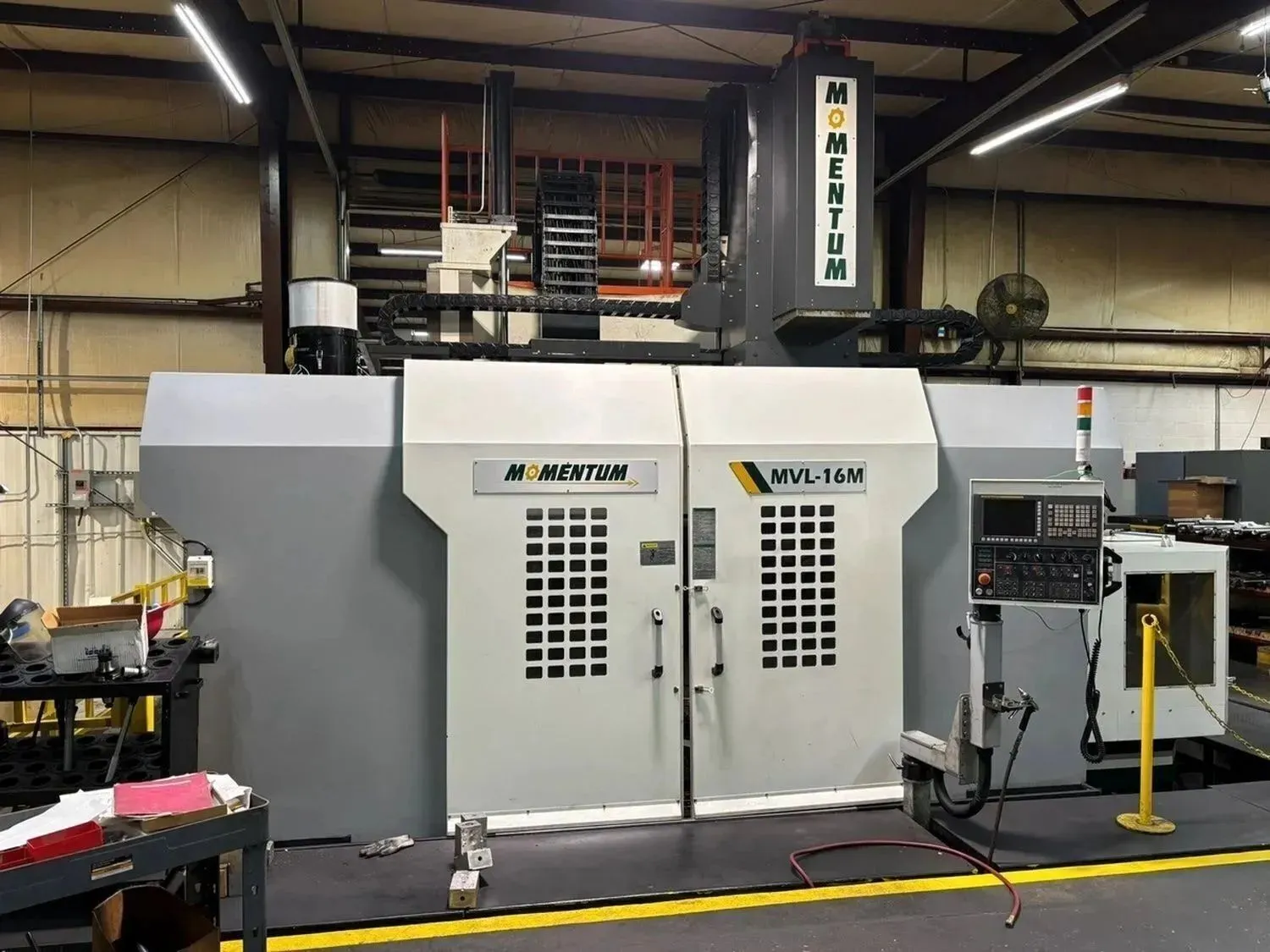

USED 2021 MOMENTUM MVL-16M
Overview
Description
2021 MOMENTUM MVL-16M VTL CNC with a 62.99" table and 78.74" maximum turning diameter. Features 16-position ATC, live milling spindle, C-axis table, and more. Full enclosure, FANUC 0I-TF PLUS control. Low use, under 3000 hours.
Specifications
| Table Dia | 62.99" | 1,599.9 mm |
|---|---|---|
| Maximum Swing | 78" | 1,981.2 mm |
| Maximum Turning Diameter | 78.74" | 2,000 mm |
| Maximum Turning Height | 72 | 72 |
| Table Weight Capacity | 22,046 lb | 9,999.9 kg |
| Vertical Travel of Ram, Z-Axis | 39.37" | 1,000 mm |
| Horizontal Railhead Travel, X-Axis | 45.87" | 45.87" |
| Cross Rail Vertical Travel | 35.43" | 899.92 mm |
| Main Table Motor | 73.7/ 60.3 60.3 HP/ 60 HP T220/3/60 | 73.7/ 60.3 60.3 HP/ 60 HP T220/3/60 |
| Table RPM | 280 RPM | 280 RPM |
| Live Spindle Motor | 29.5 HP | 29.5 HP |
| Live Spindle Speed, 2-Ranges | 486-3000 RPM | 486-3000 RPM |
| Automatic Tool Changer | 16 | 16 |
| Control | CNC (FANUC 0I-TF PLUS) | CNC (FANUC 0I-TF PLUS) |
| Dimensions | R-L 161" x F-B 204" x H 213.78" | R-L 161" x F-B 204" x H 213.78" |
| Weight | 82,000 LBS | 82,000 LBS |
TABLE DIAMETER T-SLOTTED................................62.99"
MAX. TABLE WEIGHT.......................................22,046 LBS.
MAX. TABLE TORQUE.......................................17,701
BORING MILL JAWS........................................4
MAXIMUM TURNING DIAMETER................................78.74"
MAXIMUM HEIGHT UNDER RAM FACE...........................70.08"
MAXIMUM CUTTING HEIGHT..................................63.18"
TABLE SPEEDS LOW / HIGH RANGE...........................65 TO 280 RPM
MILLING SPINDLE SPEEDS..................................486-3000 RPM
MILLING SPINDLE TAPER...................................#50
MAX MILLING SPINDLE TORQUE..............................604
RAM DIAMETER............................................10"X10"
RAM VERTICAL TRAVEL Z AXIS..............................39.37"
RAM HORIZONTAL TRAVEL...................................45.87"
RAIL TRAVEL.............................................35.43"
FEED RATE...............................................0.039 TO 78.4 IPM
RAPID TRAVERSE..........................................393 IPM
FLOOR SPACE.............................................R-L 161" X F-B 204"
MACHINE HEIGHT..........................................213.78"
MACHINE WEIGHT..........................................82,000 LBS.
MAIN MOTOR..............................................73.7 / 60.3 HP / 60 HP T220/3/60
X AND Z AXIS SERVO MOTORS...............................9.4 WITH 3:1 REDUCTION
MILLING SPINDLE HORSEPOWER..............................29.5
CF AXIS MOTOR...........................................9.4 WITH 360:1 REDUCTION
REQUIRED ELECTRICAL POWER...............................3-PH 460V ±10%; 60HZ ±1%
MAIN BREAKER SIZE.......................................175 AMP, 139 KVA @ 460V
CTS / FLOOD / BED WASH PUMPS BAR [PSI], L/MIN...........87 AND 100
TANK VOLUME LITERS GALLONS...............................157
TANK FILTRATION, BASKET / SECONDARY......................0.040/0.024
Equipped With
FANUC 0I-TF PLUS CONTROL
RAM W/ 16 POSITION AUTOMATIC TOOL CHANGER
LIVE MILLING SPINDLE
C-AXIS TABLE
RIGHT ANGLE HEAD
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
FULL ENCLOSURE
NOTE:
MACHINE IN PLANT UNDER POWER.
THE MACHINE WAS EQUIPPED WITH MOST EVERY OPTION
THE MACHINE WAS BOUGHT AND USED PRIMARILY FOR ONE JOB,
NOW COMPLETE.
***LESS THAN 3000 HOURS TURNING TIME.***
